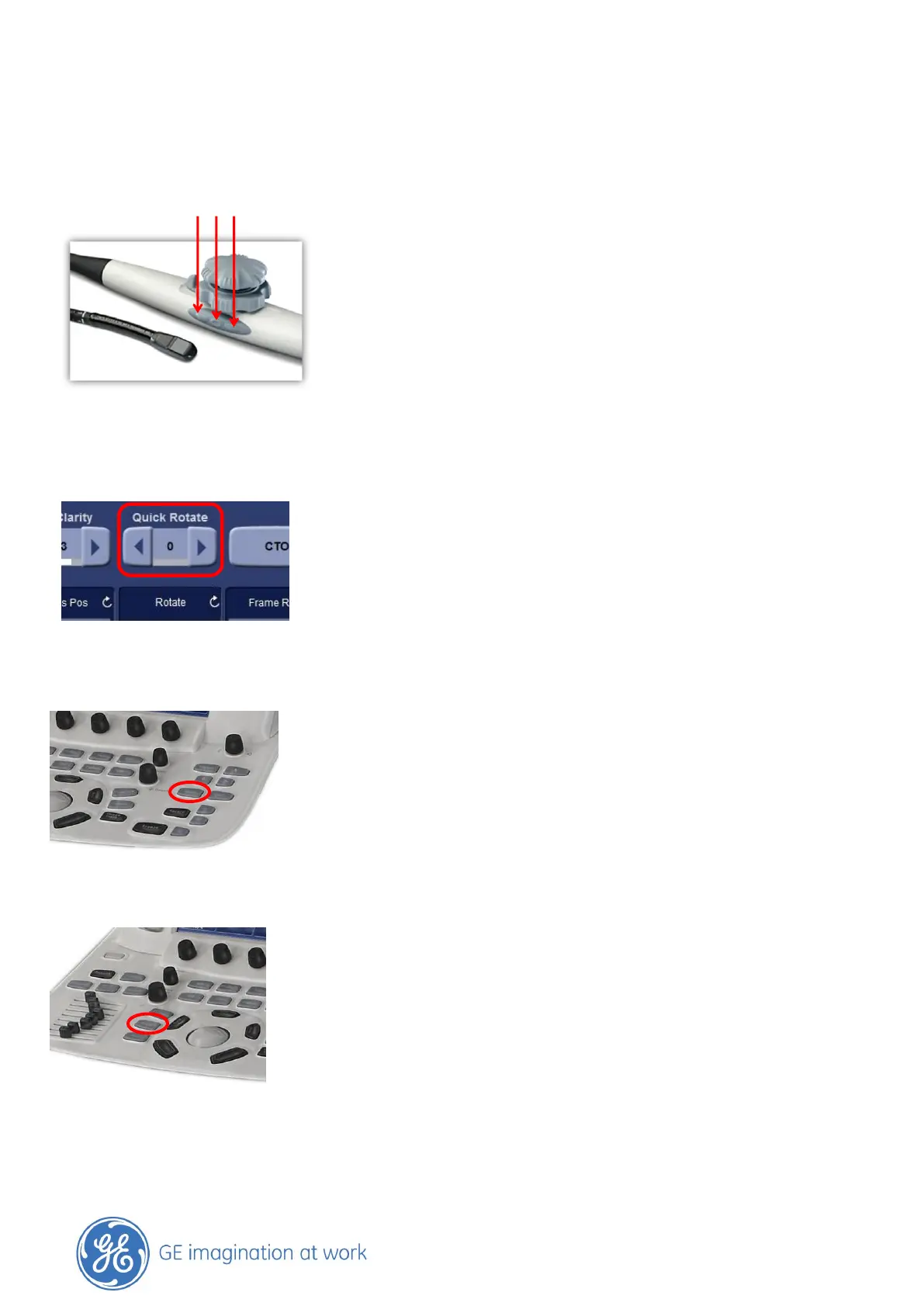

Generic
1 2 3
Rotation / Image Store
1 2D life: Rotation scan plane counter clock wise
2 2D life: Image store
Freeze: Image store
3 2D life: Rotation scan plane clock wise
Quick rotate
Rotates all scan planes to predefined angles
(30° steps in 2 directions)
Rotate
1° steps manually with Rotary button
Clear button
While pressing the Clear button the system jumps
immediately to the 0° position in 2D or to the default
setting in Multi – D and 4 D.
Angle button
Press the Angle button to rotate the scan plane to
predefined angles.

GE Vivid E9 Series Specifications

General

Display	High-resolution LCD
Power Requirements	100-240 VAC, 50/60 Hz
Application	Vascular
Monitor Size	19-inch
Transducers	phased array, convex, linear
Doppler Modes	Color Doppler, PW Doppler, CW Doppler
3D/4D Imaging	Yes
Beamformer	Advanced beamformer
Operating Modes	B-Mode, M-Mode, Color Doppler, PW Doppler, CW Doppler, TDI, 3D/4D
Advanced Imaging Options	Speckle Reduction Imaging
Connectivity	DICOM, USB, Ethernet
Dimensions	Varies depending on configuration
Weight	Varies by configuration
Portability	Cart-based system
