ActionStep

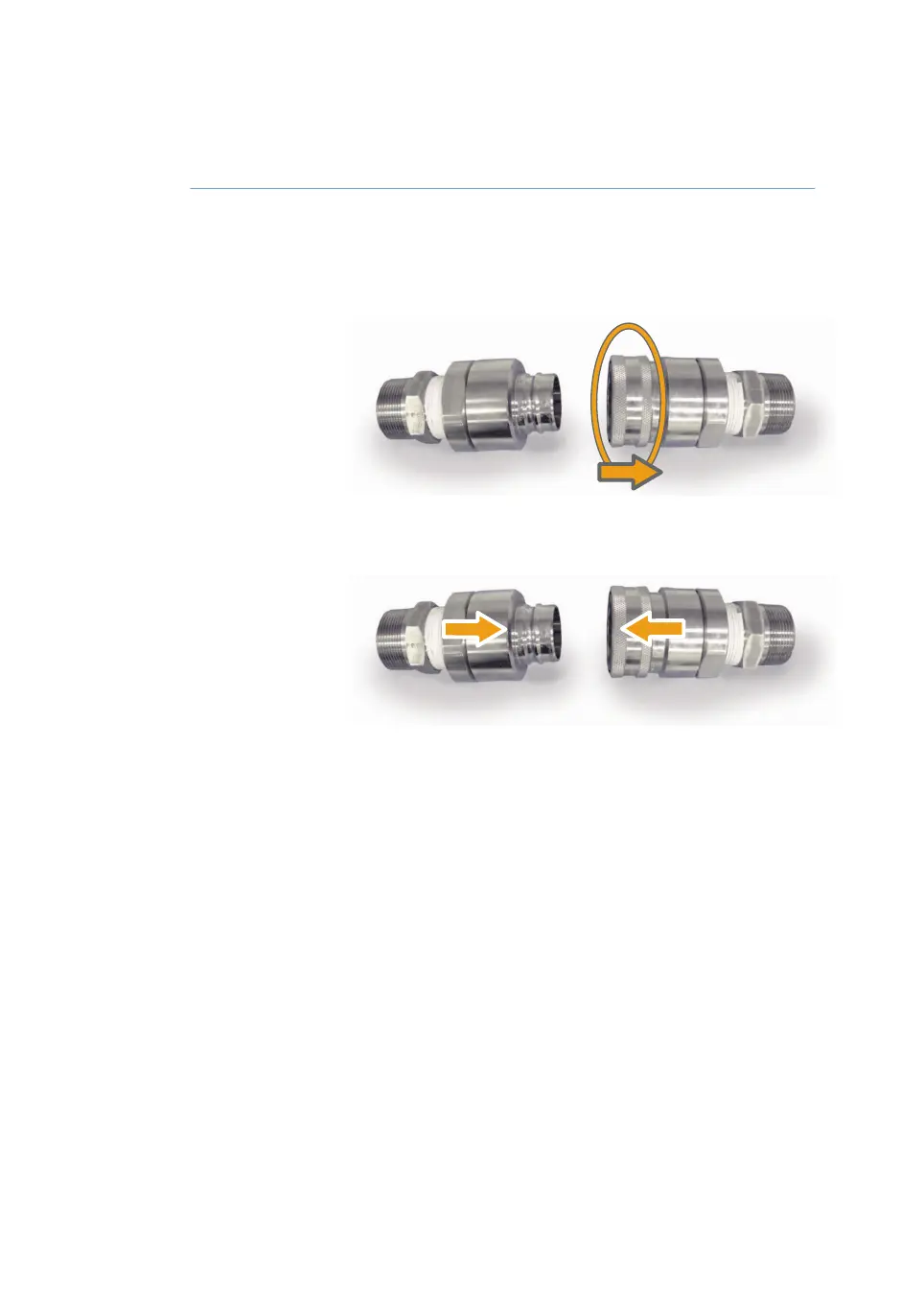

If available, use quick connect devices for the connections between the
tubing and the TCU. Lock the Snap-tite™ quick disconnect connector as
follows:
4
a
Pull back the locking ring.
b
Push both parts of the connector together.
c
Release the locking ring.
Result: The locking ring moves back and emits a click. The connector is locked.
Remove the reservoir cap on the TCU and and fill the reservoir with coolant.5
Reinstall the cap and turn on the TCU.6
126 Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD
5 Installation
5.4 Connect temperature control unit
