ActionStep

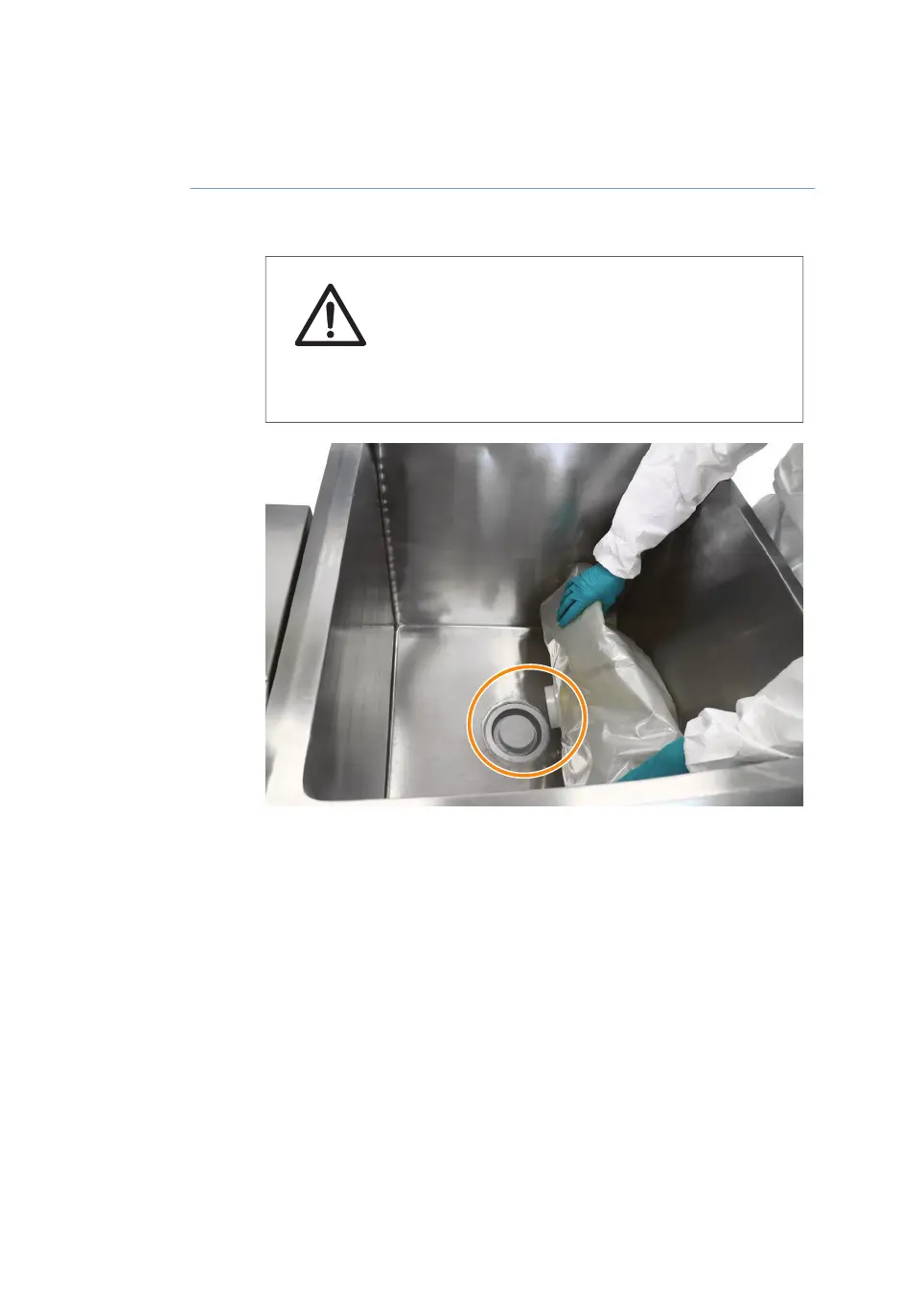

Set the impeller baseplate above the agitator drive head in the agitator
opening.
5
CAUTION
Magnetic components. Use caution when handling
magnetic components. There is a strong magnetic at-
traction between the impeller and the motor drive
coupling.
Slowly lower the impeller baseplate onto the agitator drive head.6
Result: The impeller baseplate connects magnetically to the drive head. A
click is heard when the contact is made.
Note:
Verify visually that the impeller assembly is in contact with the agitator drive
head.
Re-install the side access door.7
152 Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD
6 Preparation
6.3 Prepare the disposable bag
6.3.2 Install the disposable bag
