ActionStep

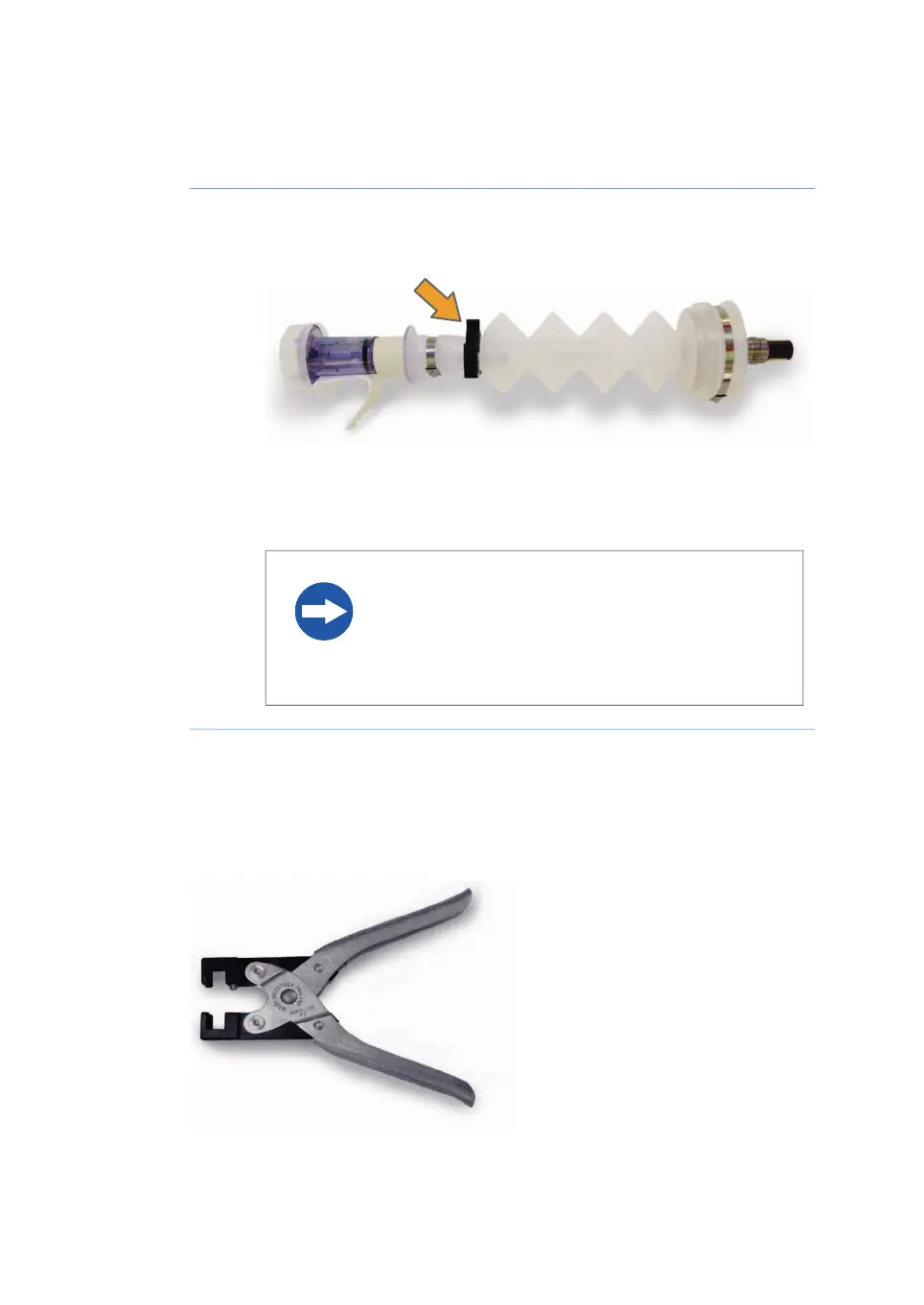

Install one ratchet clamp at the section of the probe sheath assembly be-
tween the male ACD connector and the bellows section of the probe sheath
assembly, as shown in the following illustration.
3
Use your fingers to loosely tighten the ratchet clamp, until the teeth of the
clamp are engaged enough to hold the clamp in position (2 to 3 teeth en-
gaged).
4
NOTICE
Do not tighten the clamps too much, otherwise they
prevent the insertion of the probe into the disposable
bag.
Install probe sheath assembly
Before inserting the probe sheath assembly into the disposable bag, make sure you have
a clamp tightening tool accessible.
Follow the instructions below to install the probe sheath assembly.
170 Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD
6 Preparation
6.4 Prepare and install the probes
6.4.4 Insert probes into the disposable bag
