January 2008
Menu Maps
C-1
91.52 pcnt
ESC
ENT
ESC
Opt
Disp
H2/AIR pcnt
H2/AIR mA
ENT
ENT
ENT
ENT
1:Cal
Range
Cal
ENT
ENT
Select-Acti
ve-Curve
ENT
ENT
H2/CO2
H2/AIR
AIR/CO2
View-Cal
-Drift
Manual Cal
Clear-
Cal-D
rift
ENT
Clear Drift?
ENT
Zero/Span Drift
ENT
ENT
ENT
H2/AIR
H2/CO2
ENT
Span
Zero
ENT
ENT
Hold Output?
ENT
Introduce C
al Gas
ENT
Next When Stable
Span Drift
ENT
Zero Drift
ENT
ENT
Next When Stable
ENT
Introduce Cal Gas
Hold Output?
ENT
ENT
ENT
ENT
MAIN MEN
U
CAL MENU
Cal

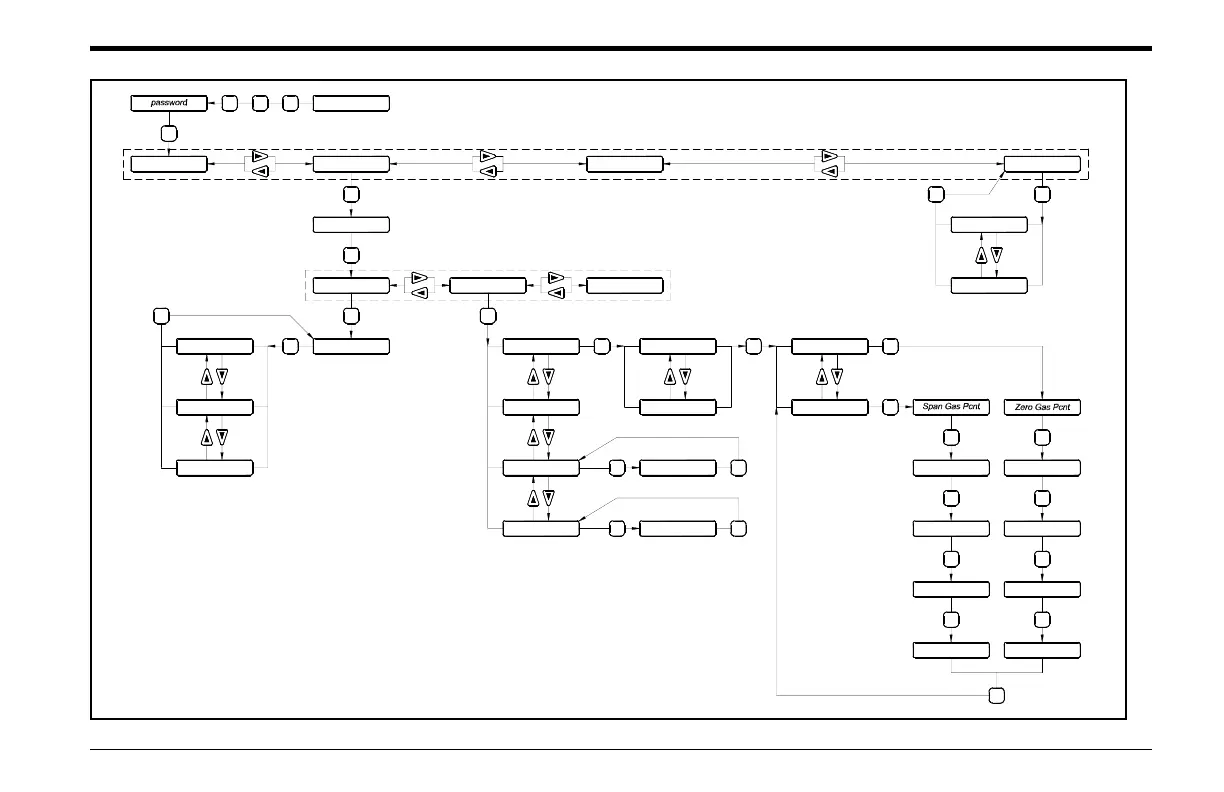

Figure C-1: Operator-Level [Cal] and [Disp] Menu Map
88
90
Table of Contents
General Information
4
Introduction
5
Basic Features
5
The XDP
6
System Overview
6
XDP Normal Alarm
7
XDP Fault Alarm
7
Alarm Settings
7
A Typical Application
7
Installation
10
Introduction
11
Choosing an Installation Site
12
Mounting the Remote Transmitter/Sample System
13
Mounting the XDP Enclosure
13
Mounting the XDP System
13
Wiring the XDP
14
Wiring the Remote Transmitter - J6
15
Wiring the XDP Alarm Relays - J3
15
Wiring the Optional Serial Port - J4
16
Wiring the XDP Analog Output - J8
16
Wiring the Line Power
17
Table of Contents
21
Operation
21
Cleaning the Enclosure
22
Introduction
22
Preventing Common Problems
22
Powering up the System
23
The Digital Display Window
23
Initial Screen Displays
24
Accessing the User Program
25
Starting the Sample Gas
25
Error Messages
26
Exiting the User Program
26
Screen Error Messages
27
Setup and Calibration
29
Introduction
30
Selecting the Active Curve
31
Switching Display Windows
32
Adjusting the Display Contrast
33
Setting the Display Backlight
34
Setting the System Fault Alarm
35
Setting up the System Analog Output
37
Choosing the System Analog Output Type
38
Setting the Zero Setpoint
39
Setting the Span Setpoint
40
Testing the System Analog Output
41
Setting the Zero Trim
42
Setting the Span Trim
43
Setting up the Serial Port
44
Lock Menus
46
Other Opt Menu Options
46
Lock All
47
Versions
48
Calibrating the System
49
Initial Preparation
49
Performing a Zero Calibration
50
Performing a Span Calibration
52
Viewing and Clearing the Cal Drift
53
Advanced Programming
56
Introduction
57
Programming Levels
57
Configuring the Display
58
Setup-Level Programming
58
Accessing the Setup Menu
60
Configuring the 4-20 Ma XDP Analog Output
61
The Range Submenu
61
The Test Submenu
62
The Trim Submenu
63
Configuring the Low and Low Low Alarms
64
The Low Alarm
64
The Low Low Alarm
66
Testing the XDP Alarm Relays
68
Entering the Sensor Serial Number
70
Factory-Level Programming
70
Configuring the 4-20 Ma Analog Input
71
Entering Factory Calibration Data
72
Loading Software
74
XDP Software
74
Exiting the User Program
75
System Software
75
XDP Specifications
77
Physical Specifications
78
Functional Specifications
79
Environmental Specifications
79
Transmitter Specifications
79
CE Mark Compliance
81
Additional Wiring Connections
84
Connecting the System Outputs
85
Wiring the System Analog Output - J5
85
Wiring the System Alarm Relay - J2
85
XDP Alarm Relays
86
Terminal Block J7 Connections
86
Menu Maps
88
Sensing
93
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the GE XDP-H2 and is the answer not in the manual?
Ask a question
GE XDP-H2 Specifications
