6 Assemble the Y idler

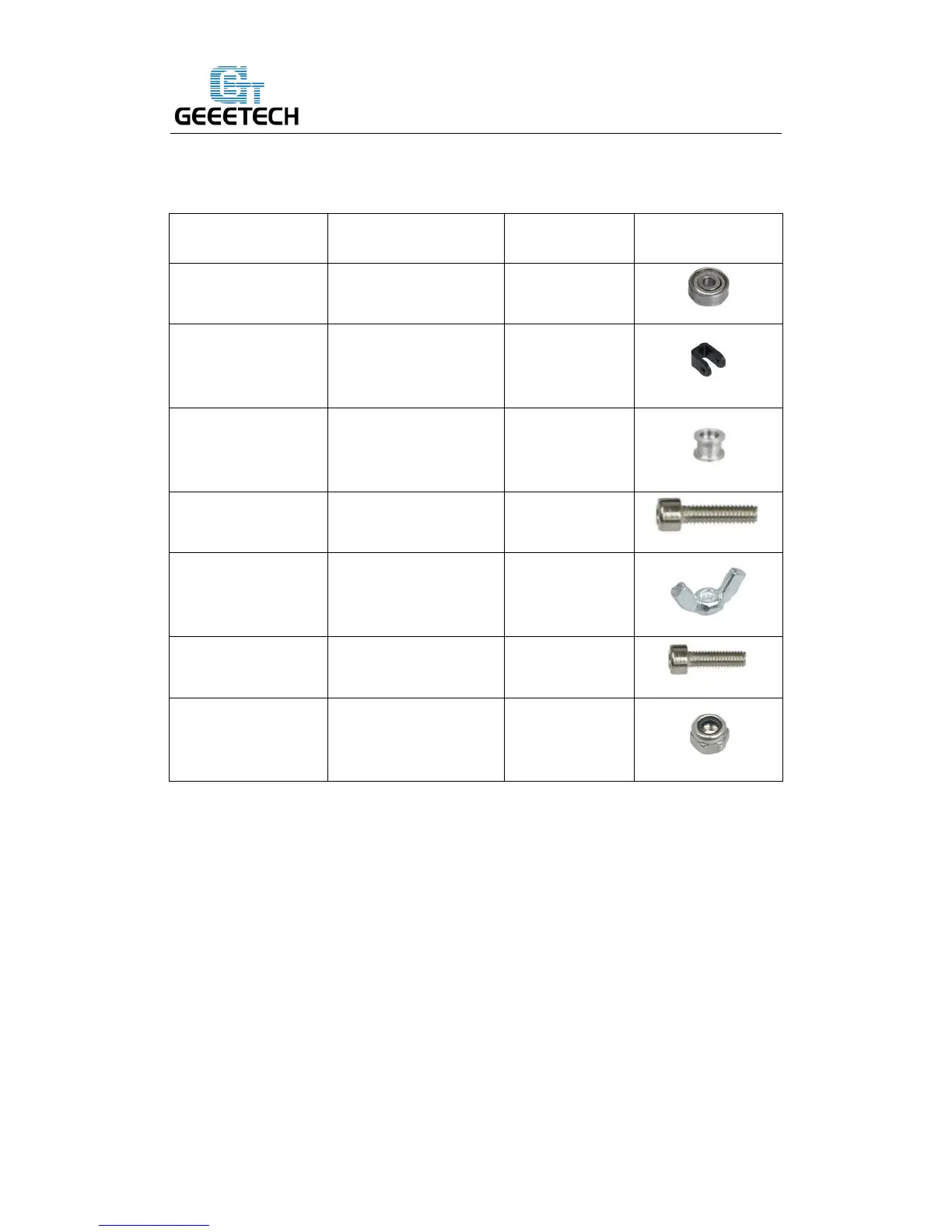

Picture Part ID Required quantity Required parts
NO.41 2
Ball bearing
NO.37 1
Driven wheel
holder
NO.40 1 Driven wheel
NO.24 1 M3 x 16 mm screw
NO.14 1 M3 wing nut
NO.29 1 M4 x25 mm screw
NO.13 1 M4 Lock nut
Step1. Thread the M3 x 16mm screw through the driven wheel holder.
Step2. Put the driven wheel with ball bearing into the driven wheel holder; Thread the
M4 x25mm screw through the driving wheel. Lock the other end with a M4 lock nut.
You may need a pair of pliers to tighten locking nut.
