17 Assemble X axis idler end

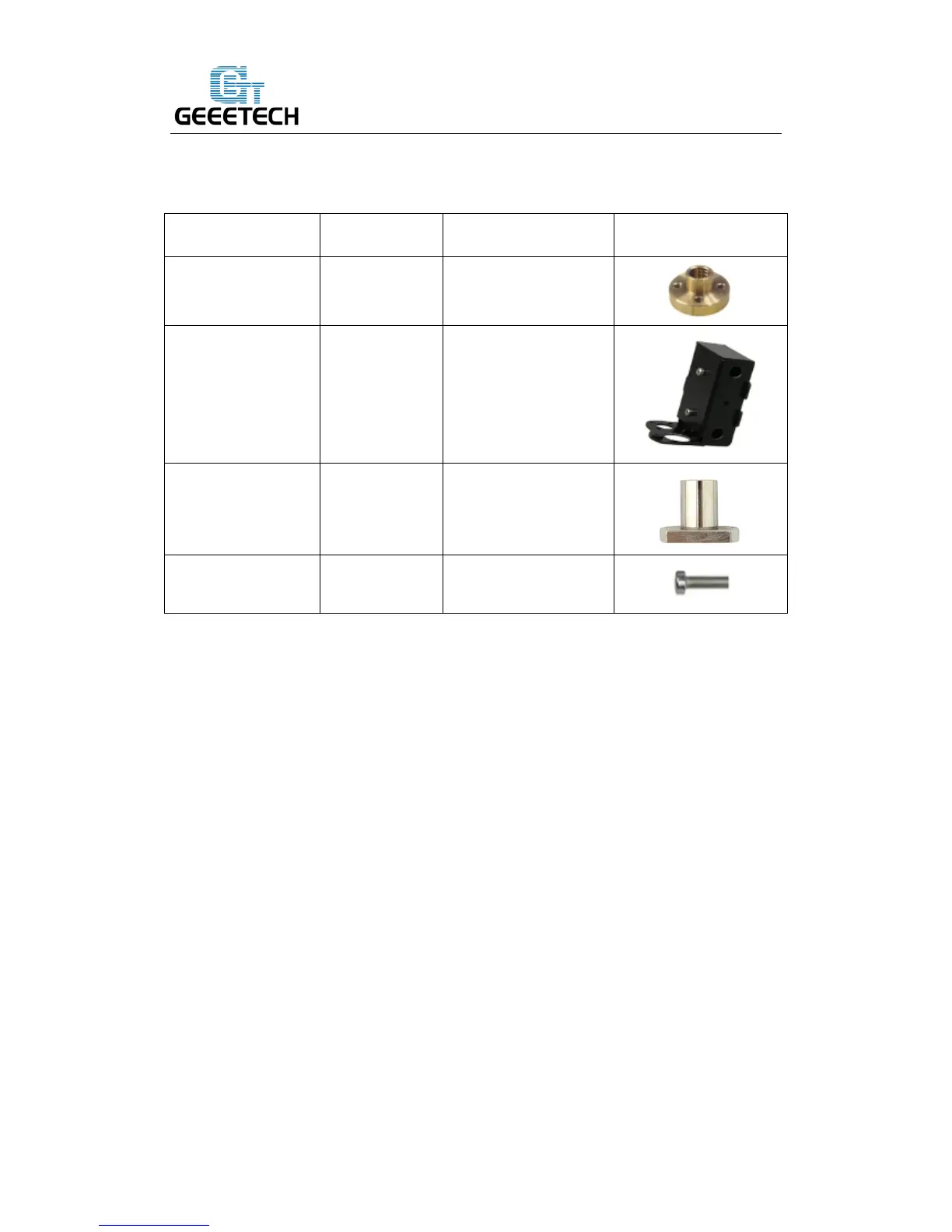

Required parts Part ID Required quantity Picture
Z-axis nut No.16
1
X axix right end No.M2 1
Linear Bearing
LMH8LUU
No. 34 1
M3 x 6mm screw No. 21 8
Step1. Mount the linear bearing on X-axis idler end from bottom to up. Fix it up with
M3 x 6mm screws.
Step2.Mount the Z axis nut on the bottom of X-axis idler end with 4 M3 x 6mm
screws.
