16 Assemble the X-axis motor end
16.1 Assemble the Linear bearing and Z axis nut

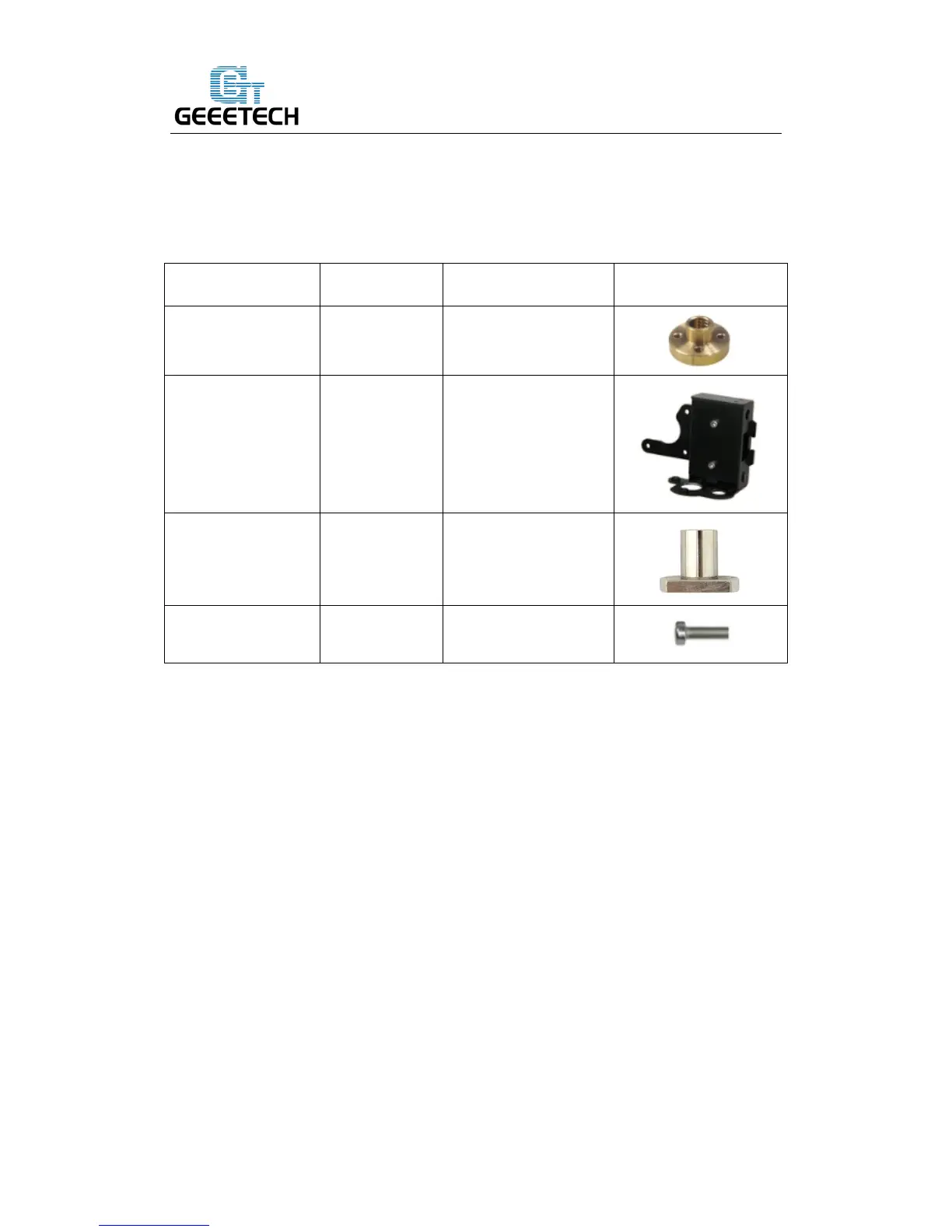

Required parts Part ID Required quantity Picture
Z-axis nut No.16
1
X-axis left end No.M1 1
Linear Bearings No. 34 1
M3 x 6mm screw No. 21 8
Step1. Mount the linear bearing on X-axis motor end from bottom to up. Fix it up
with M3 x 6mm screws.
Step2. Mount the Z nut on the X-axis left end from bottom to up, fix with M3 x 6mm
screws.
