12 AGL50-EV

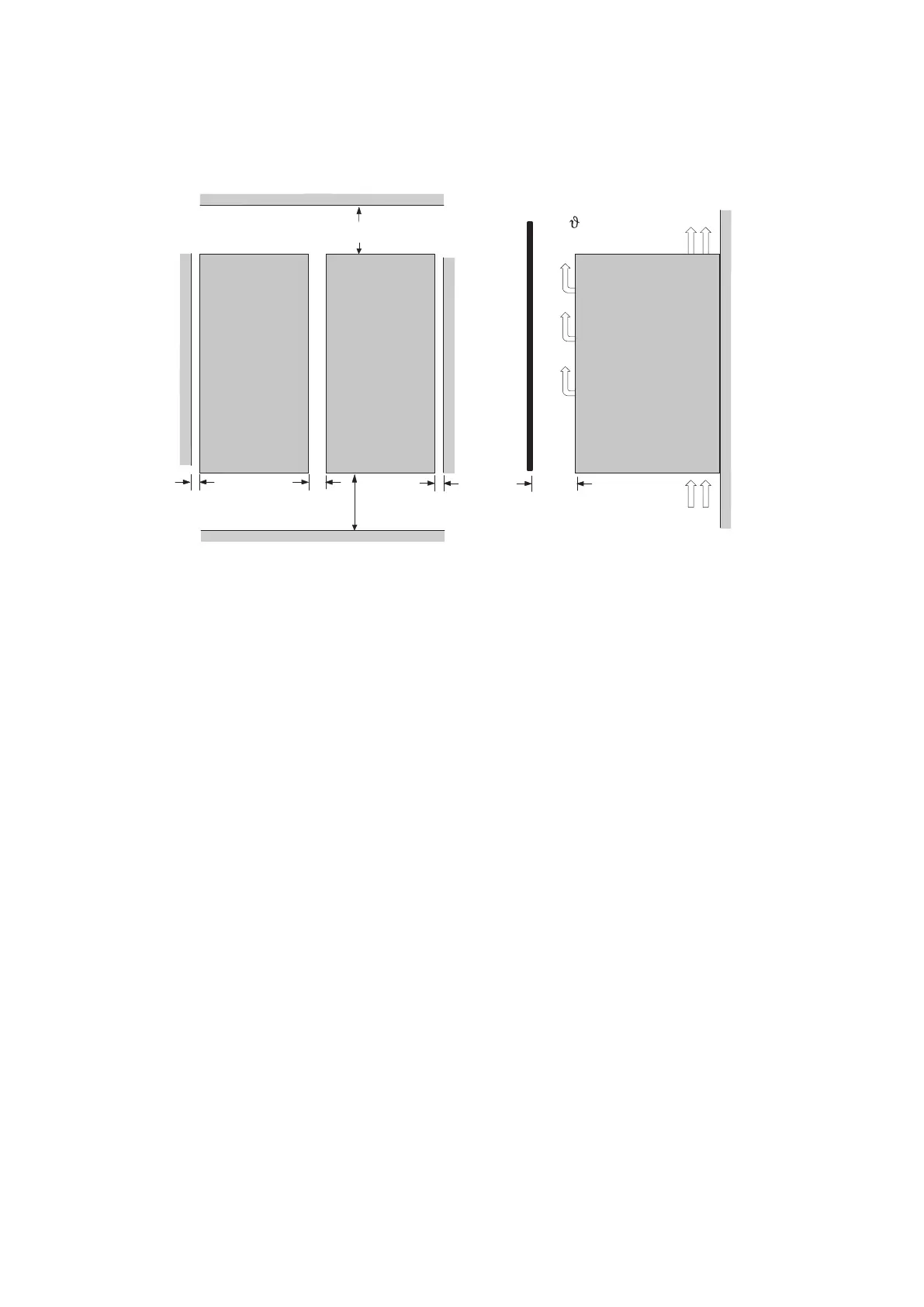

Mounting Clearance
The Drives must be mounted in such a way that the free ow of air is ensured.
The clearance to the device must be at least 150 mm (6 inches).
A space of at least 50 mm (2 inches) must be ensured at the front.
Maximum angle of inclination: 30° with respect to the vertical axis.
Devices that generate a large amount of heat must not be mounted in the direct vicinity of the frequency inverter.
Fastening screws should be re-tightened after a few days of operation.
10mm
0.39()
150 mm (6)
50 mm (1.97)
20 mm
(0.79)
150 mm (6)
10mm
(0.39)
