gefran AGL50-EV Series - Dimensions and Installation Guidelines

AGL50-EV 11

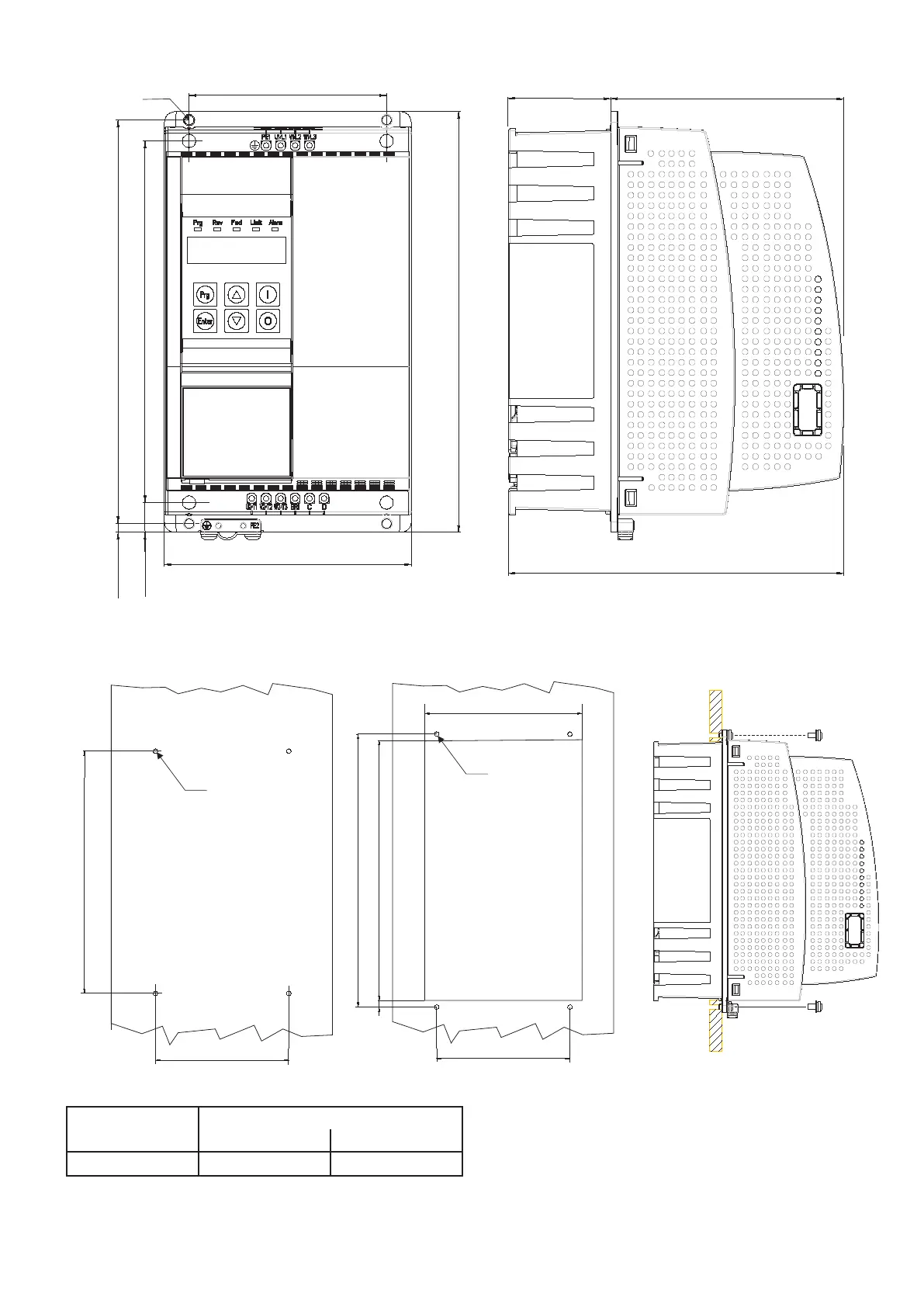

3.8 Dimensions and installation guidelines
104 (4.09)
212 (8.35)
190 (7.48)
4.6 (0.18)
15.5 (0.61)
130 (5.12)
221 (8.70)
176.5 (6.95)
122 (4.80)
M4
54.5 (2.15)
mm (inches)
Wall mounting Mounting with external dissipator
212 (8.35)
104 (4.09)
202 (7.95)
190 (7.48)
104 (4.09)
5 (0.2)
M4
123 (7.84)
M4
Type Weight
[kg] [lbs]
2040 ... 2075 3.0 6.6
