8 AGL50-EV
3.4 Input
Type 2040 2055 2075
Uln AC Input voltage [V] 3 x 380 V (-15%) ... 3 x 480 V (+10%)
Power supply system TT,TN
Maximum line voltage unbalance [%] 3 %
AC Input frequency [Hz] 50 Hz – 2 % ... 60 Hz + 2 %
THD of input current [%] > 100 % (without choke)
In AC Input current for continuous service ::
- Connection with 3-phase reactor
@ 400Vac; IEC 146 class 1 [A] 9 13 16
@ 480Vac; IEC 146 class 1 [A] 8.2 11.7 14.3
- Connection without 3-phase reactor
@ 400Vac; IEC 146 class 1 [A] 11 14 19
@ 480Vac; IEC 146 class 1 [A] 10 12.6 17
Max short circuit power without line reactor (Zmin=1%) [kVA] 500 650 850
Overvoltage threshold (Overvoltage) [V] 800Vdc
Undervoltage threshold (Undervoltage) [V] 380 Vdc (for 380,400Vac mains), 405 Vdc (for 420,440Vac mains),
415 Vdc (for 460,480Vac mains)
Braking IGBT Unit Standard internal (with external resistor);
Braking torque 150%.
Power Supply and Grounding
1) Drives are designed to be powered from standard three phase lines that are electrically symmetrical with respect
to ground (TN or TT network).
2) In case of supply with IT network, the use of delta/wye transformer is mandatory, with a secondary three phase
wiring referred to ground.
Caution
In case of a three phase supply not symmetrical to ground, an insulation loss of one of the devices connec-
ted to the same network can cause functional problem to the drive, if the use of a delta/wye transformer is
avoided.

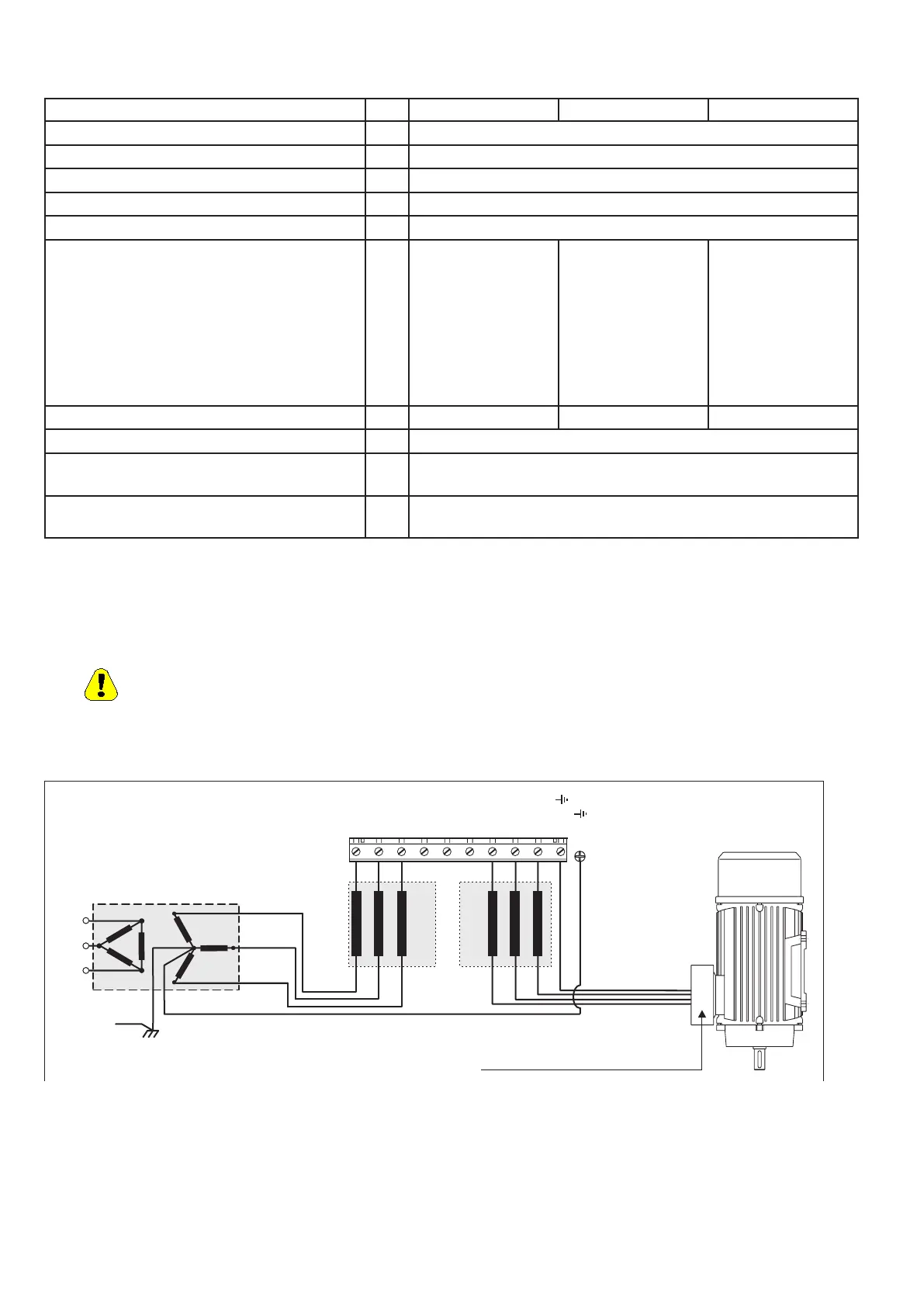

Please refer to the following connection sample.
Safety
ground
L1
L2
L3
Earth
U1/L1
V1/L2
W1/L3
U2/T1
V2/T2
W2/T3
PE2/
All wires (including motor ground) must
be connected inside the motor terminal box
AC OUTPUT
CHOKE
AC Main Supply
AC INPUT
CHOKE
PE1/
Mains connection and inverter output
The drivea must be connected to an AC mains supply capable of delivering a symmetrical short circuit current lower or
equal to the values indicated on table. For the use of an AC input choke see chapter 4.
Note from the table the allowable mains voltages. The cycle direction of the phases is free.
Voltages lower than the min. tolerance values can cause the block of the inverter.
Adjustable Frequency Drives and AC Input lters have ground discharge currents greater than 3.5 mA. EN 50178 species
that with discharge currents greater than 3.5 mA the protective conductor ground connection (PE1) must be xed type.
