ADL300 • Quick installation guide - Specifications and connection 11
2.4 Product identication
The basic technical data of the inverter are included in the product code and data plate.
The inverter must be selected according to the rated current of the motor.
The rated output current of the drive must be higher than or equal to the rated current of the motor used.
The speed of the asynchronous motor depends on the number of pole pairs and frequency (plate and catalog data).
If using a motor at speeds above the rated speed, contact the motor manufacturer for any related mechanical problems
(bearings, unbalance, etc.). The same applies in case of continuous operation at frequencies of less than approx. 20 Hz
(inadequate cooling, unless the motor is provided with forced ventilation).

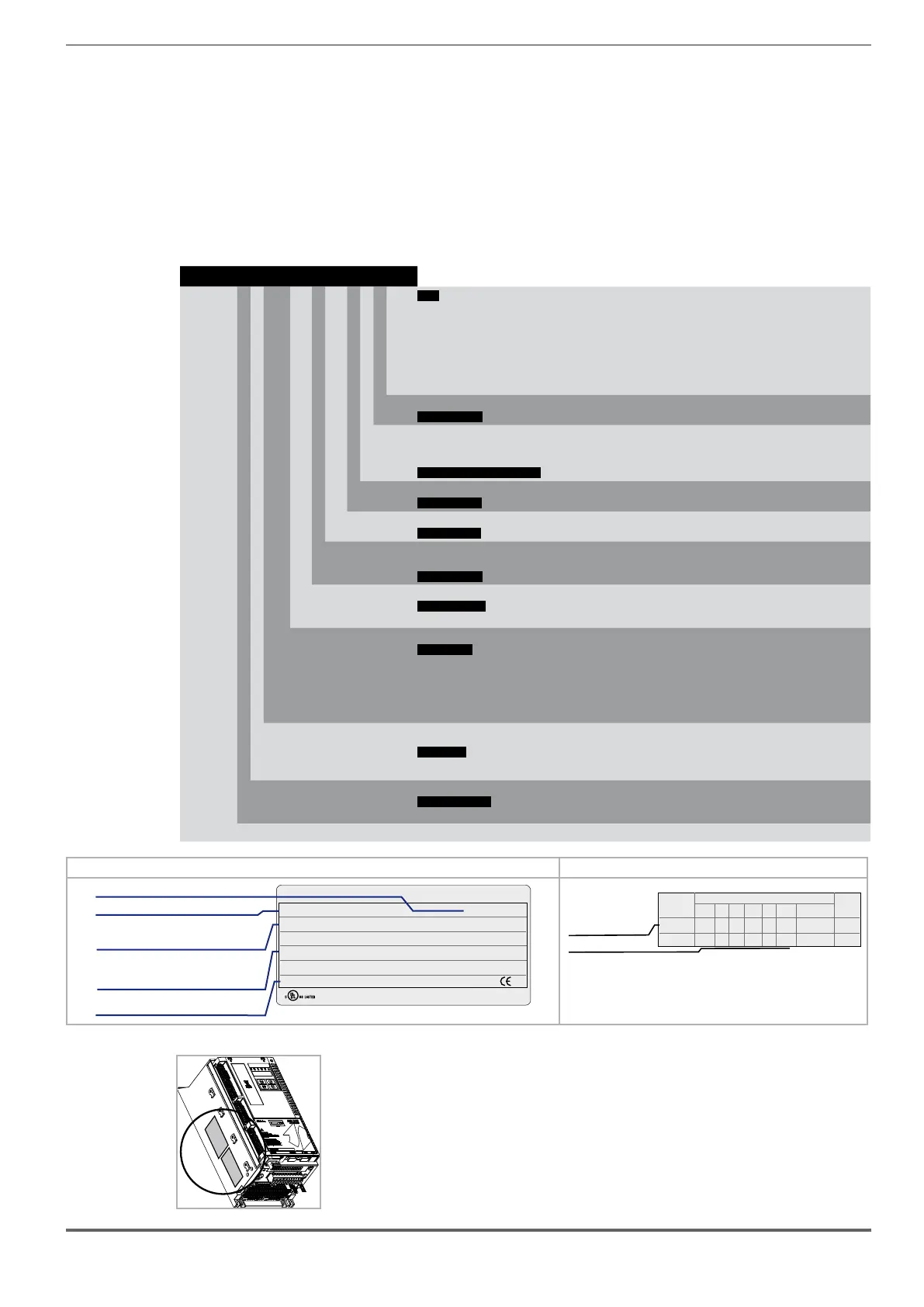

Name of model (code)
ADL 300 A 1 040 - K B L - F -4-C-AD1
AD1 = R-ADL300-C Regulation card (ADL300B only)
24 = 24Vdc Input (ADL300B only)
ED = Endat Encoder (ADL300B only)
ED24 = Endat Encoder + 24Vdc Input (ADL300B only)
ER = + Encoder Repetition (ADL300B only)
ED-ER = Endat Encoder + Encoder Repetition (ADL300B only)
E24I = Endat Encoder + Incremental TTL + 24Vdc Input (ADL300B only)
E24R = Endat Encoder + Encoder Repetition + 24Vdc Input (ADL300B only)
CANBus:
C = included
Rated voltage:
2M = 230Vac, single-phase
2T = 230Vac,three-phase
4 = 400Vca, three-phase
EMI FILTER:
F = included
Lift application:
L = included
Braking unit:
X = not included
B = included
Keypad:
K = included
(1-line x 4-character alphanumerical LED display)
Inverter power in kW:
040 = 4kW
055 = 5,5kW
075 = 7,5kW
110 = 11kW
150 = 15kW
185 = 18,5kW
220 = 22kW
300 = 30kW
370 = 37kW
450 = 45kW
550 = 55kW
750 = 75kW
Mechanical dimensions of the drive:
1 = size 1
2 = size 2
3 = size 3
4 = size 4
5 = size 5
Model
A = Advanced
B = Basic
Inverter, ADL300 series
Data plate Firmware and card revision plate
Type : ADL300A-1040-KBL -F-4-C S/N: 09012345
Inp: 230Vac-480Vac (Fctry set=400) 50/60Hz 3Ph
12.5A@400Vac 11A@480Vac
Out : 0-480Vac 300Hz 3Ph 4kW@400Vac 5 Hp @ 460Vac
9A @400V Ovld . 200%-10s 8.10A@460V Ovld.200%-10s
Made in Italy 0051
Gefran S.p.A Via G.Carducci,24
I-21040-Gerenzano(VA)
IND.CONT.EQ.31KF
Drive model
Serial number
Input (mains supply, frequency, AC Input
Current at constant torque)
Output (Output voltage, frequency, power,
current, overload)
Approvals
Firmware HW release S/N 09012345Prod.
Release
DFPRSBUSW.CFG
CONF
Cards revision
Firmware revision
Power
Regulation
Safety
Braking unit
Software
revision
Product
configuration
3.0.0
-.R -.D
12.12.13
A1
Position of plates on the drive
