138 ADL300 • Quick installation guide - Specifications and connection
A.4 - Brake monitoring system (A3 Amendment)
A.4.1 Introduction
The brake monitoring function in the ADL series of products: ADL300 enables implementation of the automatic brake
monitoring function as required by EN81-1 A.3 §9.11.3.
Two functional elements are required to implement the brake monitoring function:
1. Management of the Brake fault alarm
2. Resetting of the Brake fault alarm

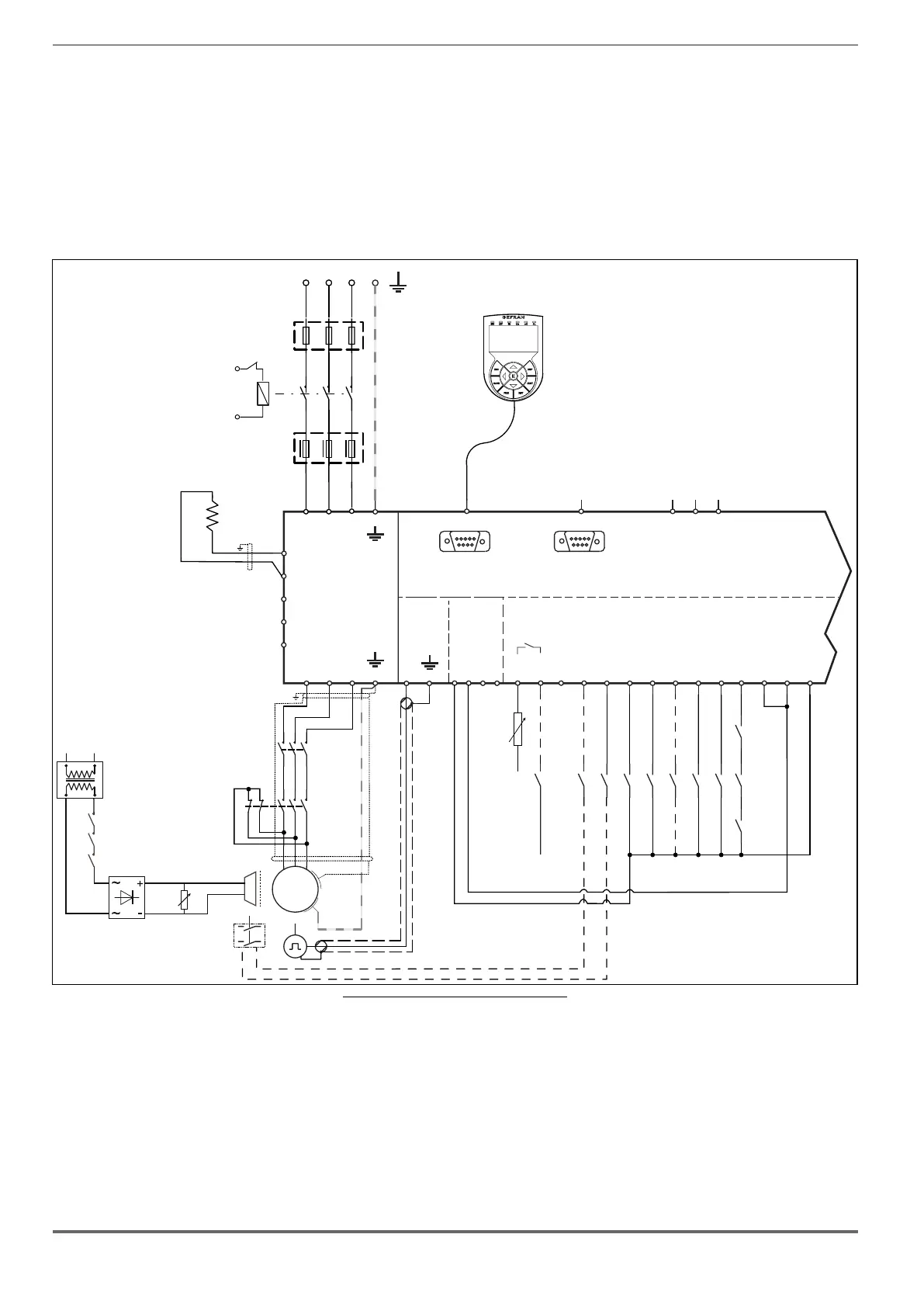

The basic wiring diagram for implementing this function is shown in Figure 1.
M
3
~
ADL300A
U2
V2
W2
P-ADL
EXP-IO
R-ADL
RS232
CAN
DI8
DI7
DI6
DI5
DI4
DI3
DI2
DI1
ENHW
DICM
0VOUT
24VOUT
KEYPAD / DCP
PC
T1 T2 T3
123456789101112
PE
PE
SH
H
L
D
C1
BR
EM
MltSpd S1
Emergency mode
MltSpd S0
StartFwdCmd
StartRevCmd
K2M
K3M
Safety
chain
BREAKING
RESISTORS
C
BRAKE
K2M
K3M
BR
TRAFO
FBK
5
6
3
4
1
2
K2M
5
6
3
4
1
2
K3M
(optional)
RO2C
RO2O
Emergency Fault
BrakeFdb1
BrakeFdb2
24V from
Safety Chain
AC
L1
1
2
S1
3
4
5
6
F1
U1
V1 W1
L1 L2 L3
US1
S2
3 Phase Mains
BR
EXP-ENC
PE
SAFETY EN+
SAFETY EN-
SAFETY FBKO
SAFETY FBKC
Figure 1 : ADL connection diagram for amendment A3.
This shows that :
A) The ADL controls brake activation/deactivation via relay BR
B) Both brake feedback signals are sent to the ADL inputs
C) The ADL signals any malfunctions (including brake malfunctions) to the system control unit via internal relay RO1.
D) The system control unit blocks the system brake in safety by deactivating contactors K2 and K3.
According to an alternative arrangement, the ADL closes/opens contactors K2 and K3 but the power supply to the coils
and to the ADL commands comes from the control unit.
The purpose of the brake fault alarm is to check whether the states of the two feedback signals from the brake are con-
sistent and, in case of doubt, to include a function whereby the ADL drive stops the system. The procedure for including
the alarm is described below
