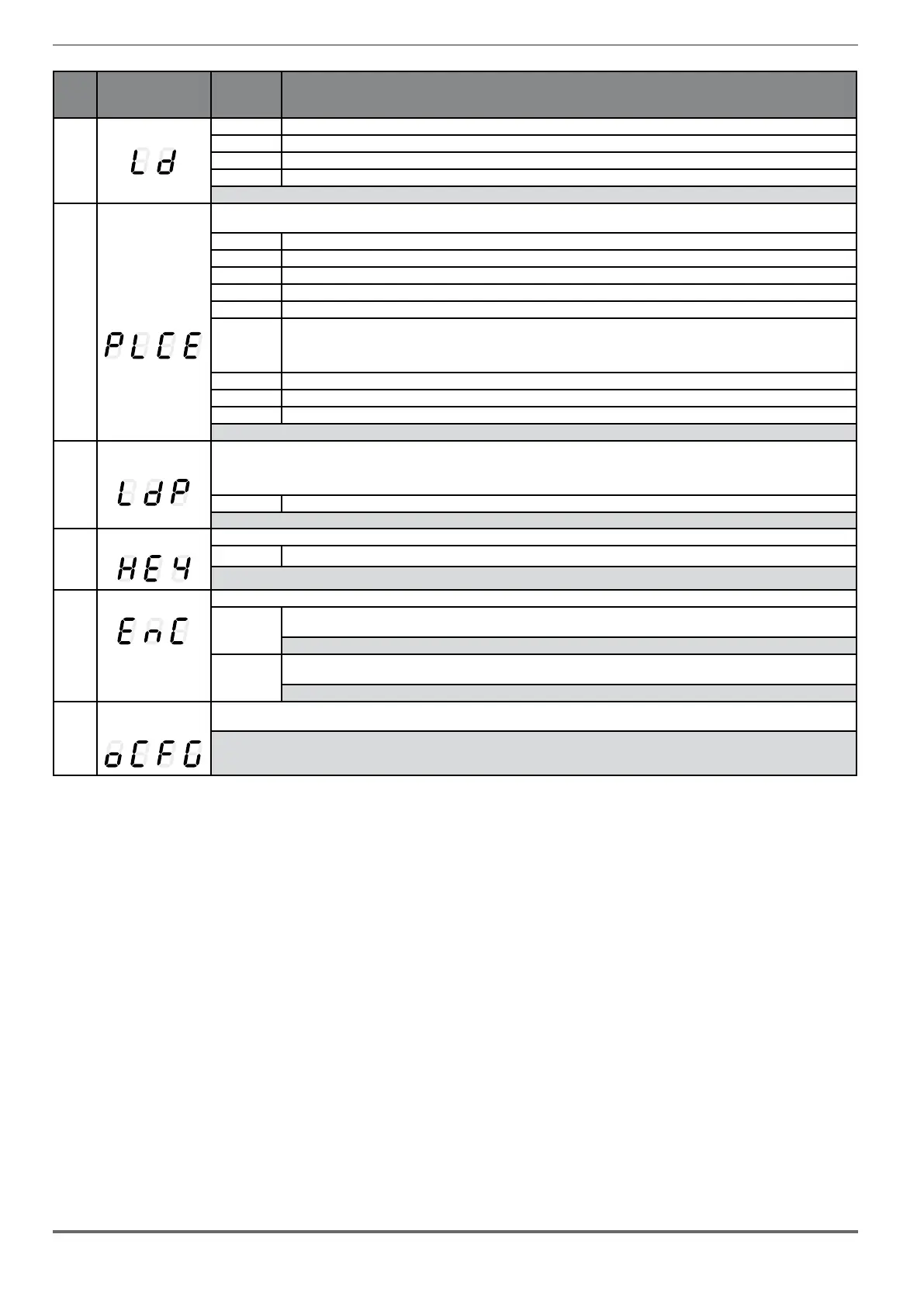

110 ADL300 • Quick installation guide - Specifications and connection
Code Error message shown
on the display [on the
integrated keypad]
Sub-code Description
0001H-1 The database saved is not valid
0002H-2 The database saved is not compatible
0003H-3 The saved database refers to a different size and not to the current size
0004H-4 The saved database refers to a different region and not to the current region
Solution: Set the parameters to the desired value and execute Save parameters
47 Plc cfg error [PLCE]
Condition: this can occur during loading of the MDPLC application
The Mdplc application present on the drive is not run.
0004H-4 The application that has been downloaded has a different Crc on the DataBlock and Function table.
0065H-101
The application that has been downloaded has an invalid identification code (Info).
0066H-102
The applciation that has been downloaded uses an incorrect task number (Info).
0067H-103
The application that has been downloaded has an incorrect software configuration.
0068H-104
The application that has been downloaded has a different Crc on the DataBlock and Function table.
0069H-105
A Trap error or System error has occurred.
The drive has automatically executed a Power-up operation.
Application not executed.
See the Alarm List for more information about an error that has occurred.
006AH-106
The application that has been downloaded has an invalid identification code (Task).
006BH-107
The application that has been downloaded uses an incorrect task number (Task).
006CH-108
The application that has been downloaded has an incorrect Crc (Tables + Code)
Solution: Remove the MDPLC application or download a correct MDPLC application.
48
Load par def plc [LDP]
Condition: this can occur during loading of the parameter database saved in the Flash memory of the MDPLC application
it is normal if it appears the first time the drive is switched on, after downloading a new application. If this message appears when the drive is already in
use it means there has been a problem in the parameter database saved in the Flash memory.
If this message appears the drive automatically runs the Load default command.
0001H-1 The database saved is not valid
Solution: Set the parameters to the desired value and run Save parameter.
49 Key failed [KEY] Condition: this can occur at drive power-on if the wrong enabling key is entered for a given firmware function
0001H-1 Incorrect PLC key. PLC application not available.
Solution: Contact Gefran to request the key to enable the desired firmware function.
50 Encoder error [ENC] Condition: this condition may occur when the drive is powered during encoder setup each time parameter 552 Regulation mode is set.
100H-256 Cause: An error occurred during setup; the information received from the encoder is not reliable. If the encoder is used for feedback the
Speed fbk loss alarm is also generated.
Solution: Take the recommended action for the Speed fbk loss alarm.
200H-512 Cause: The firmware on the optional encoder card is incompatible with that on the regulation card. The information received from the
encoder is not reliable
Solution: Contact Gefran in order to update the firmware on the optional encoder card.
51 Opt cfg change [OCFG]
Condition: an optional card has been removed with respect to the configuration present when the last Save parameters command was executed or there
is a fault on the optional card or on the regulation card.
Solution: If the user has removed the card on purpose, execute Save parameters. If the user has not removed the card, identify and replace the faulty
card.
