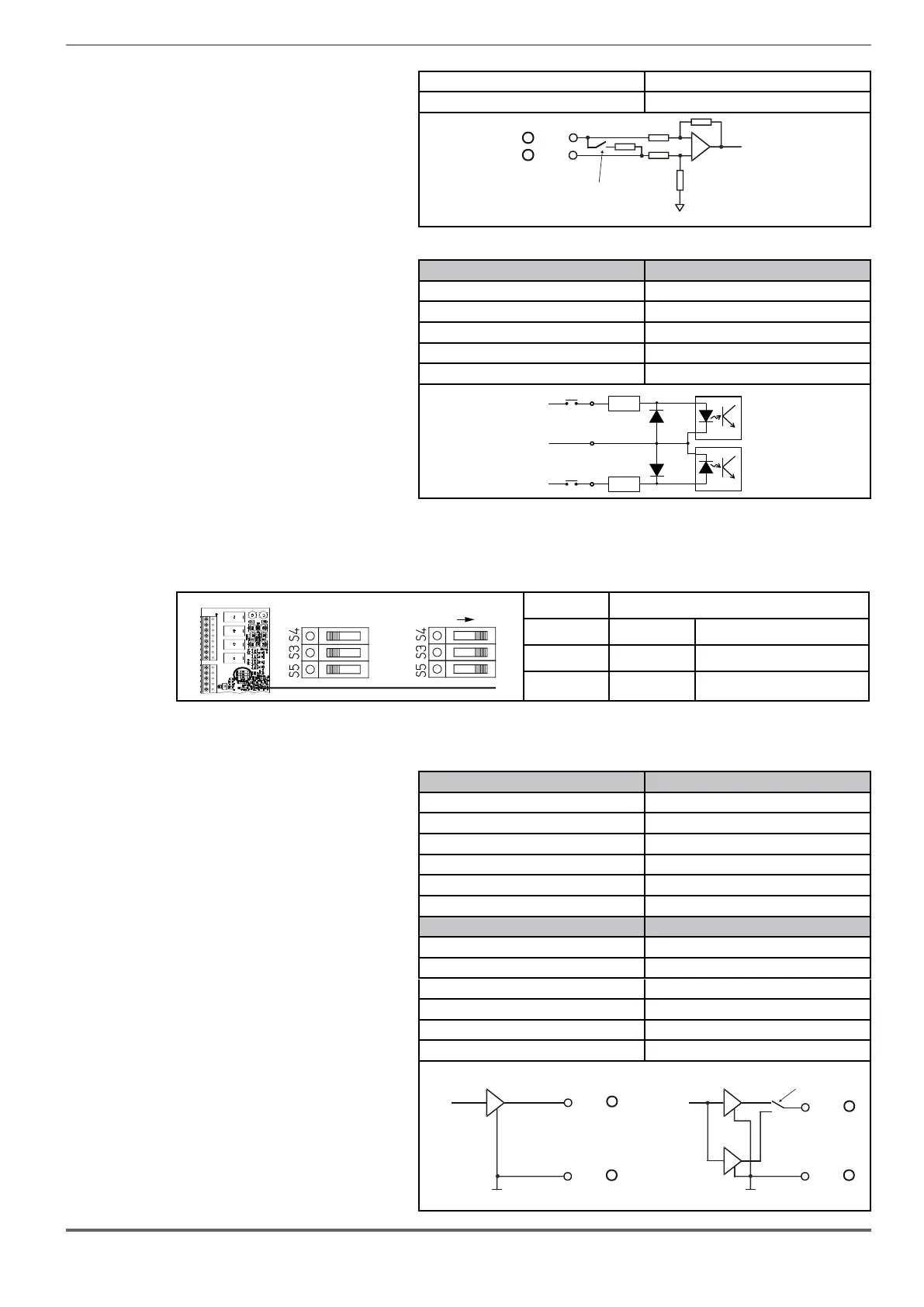

ADL300 • Quick installation guide - Specifications and connection 123
Precision 1% of full scale
Isolation NO
(*) Select input V/I (V=OFF, I=ON)
● Fast Input Inputs (Freeze)
Description Features
Type 24VDC PNP Input
Input voltage +24VDC ±20%
Load 8mA @ 24V, RL = 2,7kΩ
Thresholds V
il < 2V, Vih > 19V
Isolation Yes, functional (>1kV)
+24VDC
2
+24VDC 2k7
FH2
0V
3
FH1
FH2
XE
● Selection of Voltage/Current at analog inputs and output
In addition to programming the parameter (PAR.1602 - 1652 - 1898) the position of switches S5-S4-S3 on the I/O card
must also be checked.
I
V
(Default)
Switch (I/O card) Parameter combination
S3 1602 Analog inp 1X type
S4 1652 Analog inp 2X type
S5 (*) 1898 Analog out 2X type
(*) Not present on the R-ADL300-C (ADL300B-...-AD1) regulation card.
● Analog outputs (AO)
Description Features
Type Single-ended in voltage
Input voltage ± 10 V (± 12.5 V full scale)
Load 5 mA @ ± 10 V - R
l = 2.2 kΩ
Resolution 12 Bits (11 + sign)
Precision 2% of full scale
Isolation NO
Description Features
Type Single-ended in current (only output 2)
Input current 0 (4) mA to 20 mA
Input R 500 Ω
Resolution 12 Bits (11 + sign)
Precision 2% of full scale
Isolation NO
AO-X
AO-X
AO-X
-
+
OP
AO-X
AO-X
AO-X
-
+
1
2
3
OP
OP
(*)
OUTPUT #1 OUTPUT #2
(*) Select output V/I (only for output 2, V=1-2, I=1-3)
