ADL300 • Quick installation guide - Specifications and connection 135

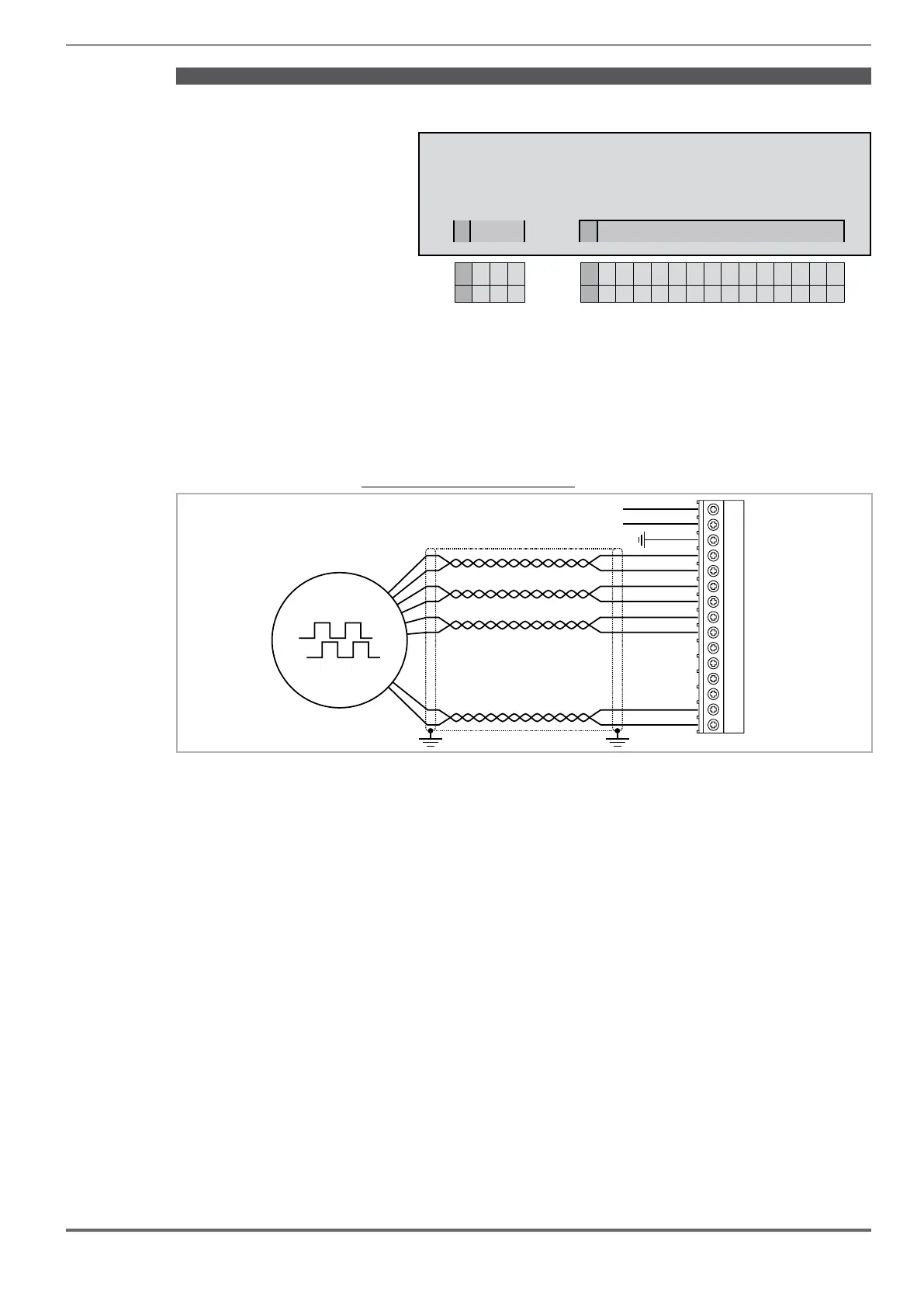

EXP-EN/SSI-I1R1F2-ADL (EnDat FULL DIGITAL)
Incremental sinusoidal + Absolute EnDat Full Digital. This is the default card supplied in drives to control permanent
magnet synchronous motors (Brushless - SESC).
EXP-EN/SSI-I1R1F2-ADL
XER
XE
BR
-
BR
+
AR
-
AR
+
DI
F2
DI
F1
DI
CM
DT
-
DT
+
CK
-
CK
+
Z
-
Z
+
0VE
out
+VE
out
20 21 22 23 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Power supply ���������������������������� min +5.2 V, max +10 V (default + 5.2 V) − Imax 150 mA.
Programmable internal power supply, see table (1)
Cable length ���������������������������� max 50m (see encoder cable length section)
Absolute channels ������������������������ CK+ CK-, DT+ DT- differential, RS-485
Management of loss of encoder signals.
Interface ������������������������������� EnDat: 2.1/2.2 single/multi-turn (command set managed only compatible with 2.1)
Max frequency �������������������������� EnDat: 1.5 MHz with delay compensation (not programmable)
Number of bits ��������������������������� EnDat: max 32 bit/turn* max 32bit/turn (automatic recognition at initialisation)
Incremental sinusoidal + Absolute EnDat Full Digital
DT-
DT+
CK-
CK+
0VE out
+VE out
VS-
VS+
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
(*)
(**)
(**)
Fast input 2
Fast input 1
CM
XE
(*) Connection of shielding, see gure 7.2.4
(**) VS+ / VS- : optional (encoder supply feedback)
