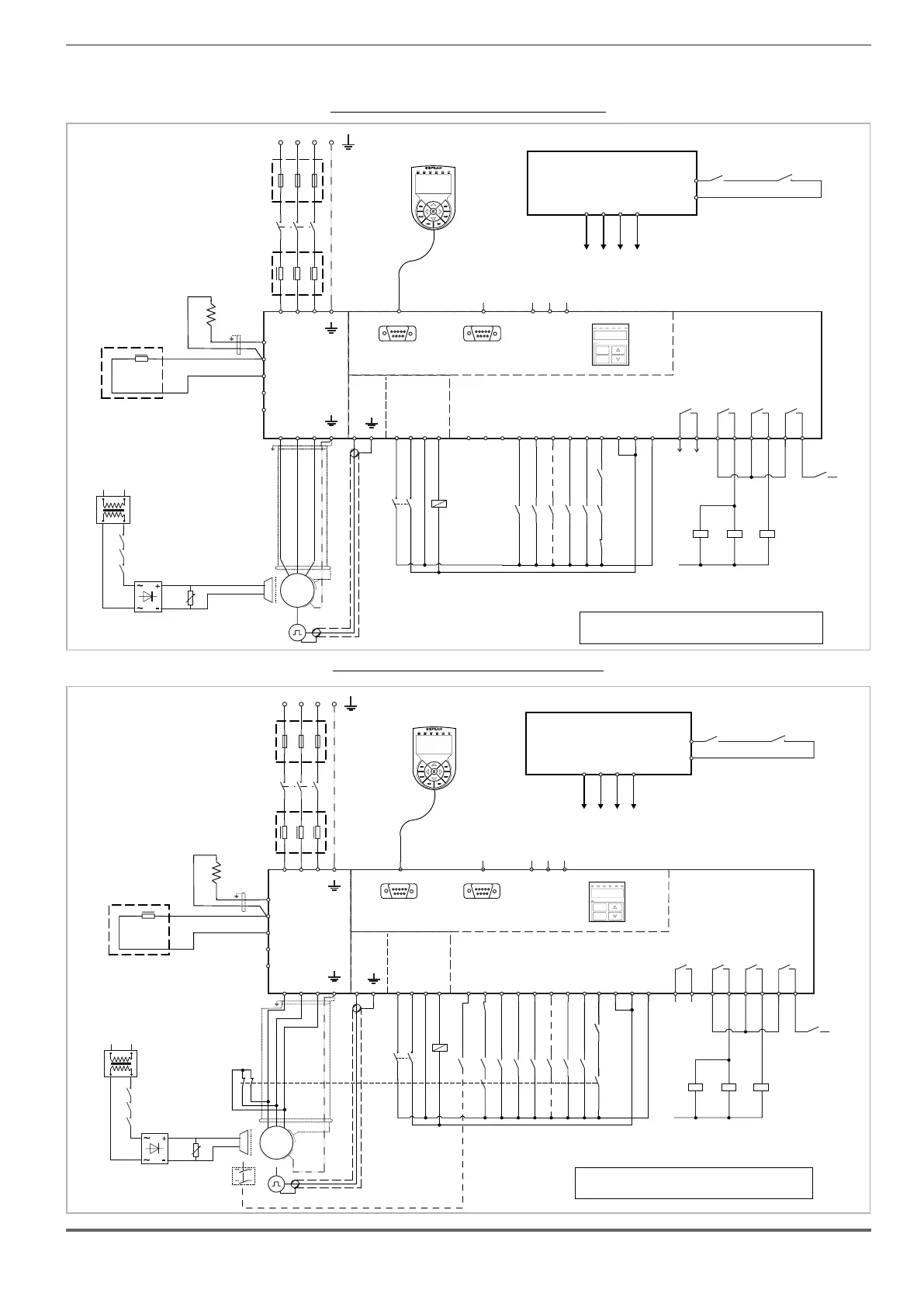

gefran SIEIDrive ADL300

ADL300 • Quick installation guide - Specifications and connection 59
To use this type of connection reference should be made to the safety and installation instructions in the "SAFETY
MANUAL" (le: x08051ko-Safety User Manual-1_0r_IT and x08051ko-Safety User Manual-1_0r_EN on the CD-ROM
supplied with the inverter or downloadable from the www.gefran.com website).
7.4 Serial interface (PC connector)
Funzione / Function I/O Interfaccia elettr./ Elect. Interface
PIN 1
-– –
PIN 2
TxD RS232
PIN 3
RxDI
RS232
PIN 4
––
PIN 5
0V (Ground)
–
Alimentazione / Supply
PIN 6
–
–
PIN 7
O
PIN 8
––
PIN 9
–
Alimentazione / Supply
I = Ingresso / Input
O = Uscita / Output
-
-
-
-
+5V
–
5
1
96
PC
The ADL drive is provided with a port as standard (9-pin D-SUB receptacle connector) for connection of the RS232 se-
rial line used for drive-PC point-to-point communication (with the GF-eXpress conguration software).
Note! The port is not galvanically isolated. The PC-OPT-ADL option must be used If galvanic separation is required.
7.4.1 Drive/RS232 port point-to-point connection
12
3
45
9876
RxD
TxD
PE
+5 V
XS2
RS232
Figure 7.5.1: Serial connection (not isolated)
The serial connection must consist of a twin pair with two symmetrical conductors, spiral wound with a common
shield, plus the ground connection cable, connected as shown in the gure (a 3-wire RS232 cable, not cross-over, is
recommended). The maximum transmission speed is 38.4 kBaud.
For connection of the RS232 serial line to the PC, see the gure below.
RS232
USB
USB RS232 converter
5A20)(S
PC with RS232 port
PC with USB port
RS232
PC)(
Rs232
PC)(
Shielded cable with connectors,
5m(8S8F59)
Shielded cable with
connectors,
5m(8S8F59)
PC with RS232 port
RS232
PC)(
Fig. A
Fig. B
Fig. C
Shielded cable
with connectors,
5m(8S8F59)
Optional
PC-OPT-ADL
(S573L)
Figure 7.5.2: RS232 connection to the PC
