Instrument & Control Panel
(Fig. 5-11)
The instrument and control panel contains the following
control switches and indicators. International symbols
on the panel represent various functions, conditions and
switch positions. Symbols are visible only when
indicator lamps are on.
1. Engine Oil Temperature Gauge - Indicates the
engine oil temperature.
2. Fuel Level Gauge - Indicates the amount of fuel
remaining in the fuel tank.
NOTE: Reference items 3 through 8 are indicator
lights which display the following:
3. Glow Plug Indicator Lamp - After the glow plugs
have heated, the lamp goes out and the engine can be
started.
NOTE: Loader engine cannot be started until the
operator sits on the seat and the operator restraint
bar is lowered.
4. Battery - Indicates the condition of the charging
system. During normal operation, this indicator
should be OFF. If the charging voltage is too high or
too low, this indicator lights.
5. Engine Oil Pressure - During normal operation,
this indicator should be OFF. This indicator lights if
the engine oil pressure drops too low, warning the
operator to IMMEDIATELY stop the engine and
determine the cause for the pressure drop.
6. Fasten Seat Belt - Audible and visual indicators
remind the operator to fasten the seat belt.
7. Engine Temperature - During normal operation,
this indicator should be OFF. This indicator lights if
the engine oil gets too hot, warning the operator to
IMMEDIATELY stop the engine. Allow the engine
to cool, determine the cause for the high temperature
condition and correct the problem BEFORE
restarting the engine.
8. Hydraulic Oil Temperature - During normal
operation, this indicator should be OFF. This
indicator lights if the hydraulic system oil gets too
hot, warning the operator to IMMEDIATELY stop
engine. Allow the hydraulic system to cool before
determining the cause of the high temperature
condition.
907808/CP0300 32 PRINTED IN USA

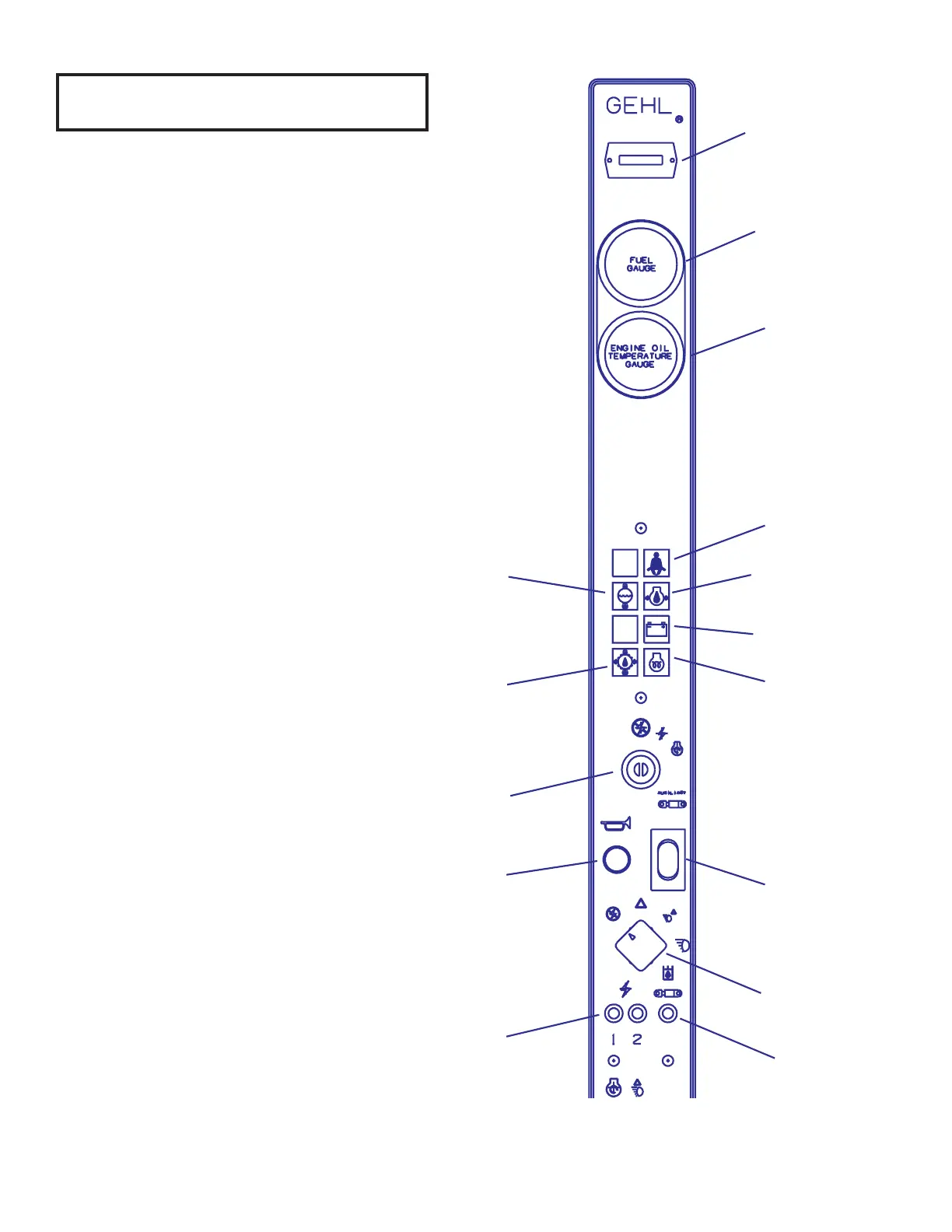

Fig. 5-11: Instrument & Control Panel
9
2
1
6
5
4
3
14
11
15
7
8
12
13
10
