Change Engine Oil & Filter
(Figs. 10-4 to 10-6)
NOTE: For new units, the first oil change should be
after the first 50 hours.
IMPORTANT: ALWAYS dispose of waste
lubricating oils according to local regulations or
take to a recycling center for disposal; DO NOT
pour onto the ground or down the drain.
Oil should be changed when the engine is at normal
operating temperature. When the engine has been
drained, the loader should be marked so that it is not
accidently operated before being refilled.
The loader has an engine oil filter located on the left side
of the engine, in front of the battery. Follow the
“ROPS/FOPS & Lock Mechanism” procedure in the
Controls & Safety Equipment chapter to lift up the
ROPS and access the filter.
Before removing the oil filter, remove the rear skid plate
cover to drain the engine filter oil (fig. 10-4).
To add new oil, open the engine access cover. Remove
the oil cap and add the recommended oil. Refer to the
Lubrication chapter in this manual for oil
recommendations and quantity; and to the separate
engine manual for oil and oil filter changing procedures.
Visually inspect the remote oil drain hose for damage or
leaks.
For a replacement spin-on oil filter element, refer to the
“Replacement Parts” topic at the beginning of this
chapter.
Change Fuel Filter (Fig. 10-5)
The loader has a fuel filter located on the left side of the
engine, in front of the battery. Follow the “ROPS/FOPS
& Lock Mechanism” procedure in the Controls & Safety
Equipment chapter to lift up the ROPS and access the
filter. Clamp off the fuel line to stop fuel flow BEFORE
replacing the filter. Remove the spin-on filter cartridge.
Install the new cartridge and check for leaks.
For a replacement spin-on fuel filter cartridge, refer to
the “Replacement Parts” topic at the beginning of this
chapter.
Change Chaincase Oil (Fig. 10-6)
Raise the loader off the ground following the “Loader
Raising Procedure” in the Adjustments chapter in this
manual.
1. Remove the front and rear drain plugs and drain the
oil.
2. Reinstall the drain plugs.
3. Remove both the fill and oil level check plugs.
4. Add oil through the fill plug until oil starts to flow
out of the check plug.
5. Reinstall the check plug, then the fill plug.
Follow the “Loader Lowering Procedure” at the
beginning of the Adjustments chapter to return the
loader to the ground.
907808/CP0300 68 PRINTED IN USA

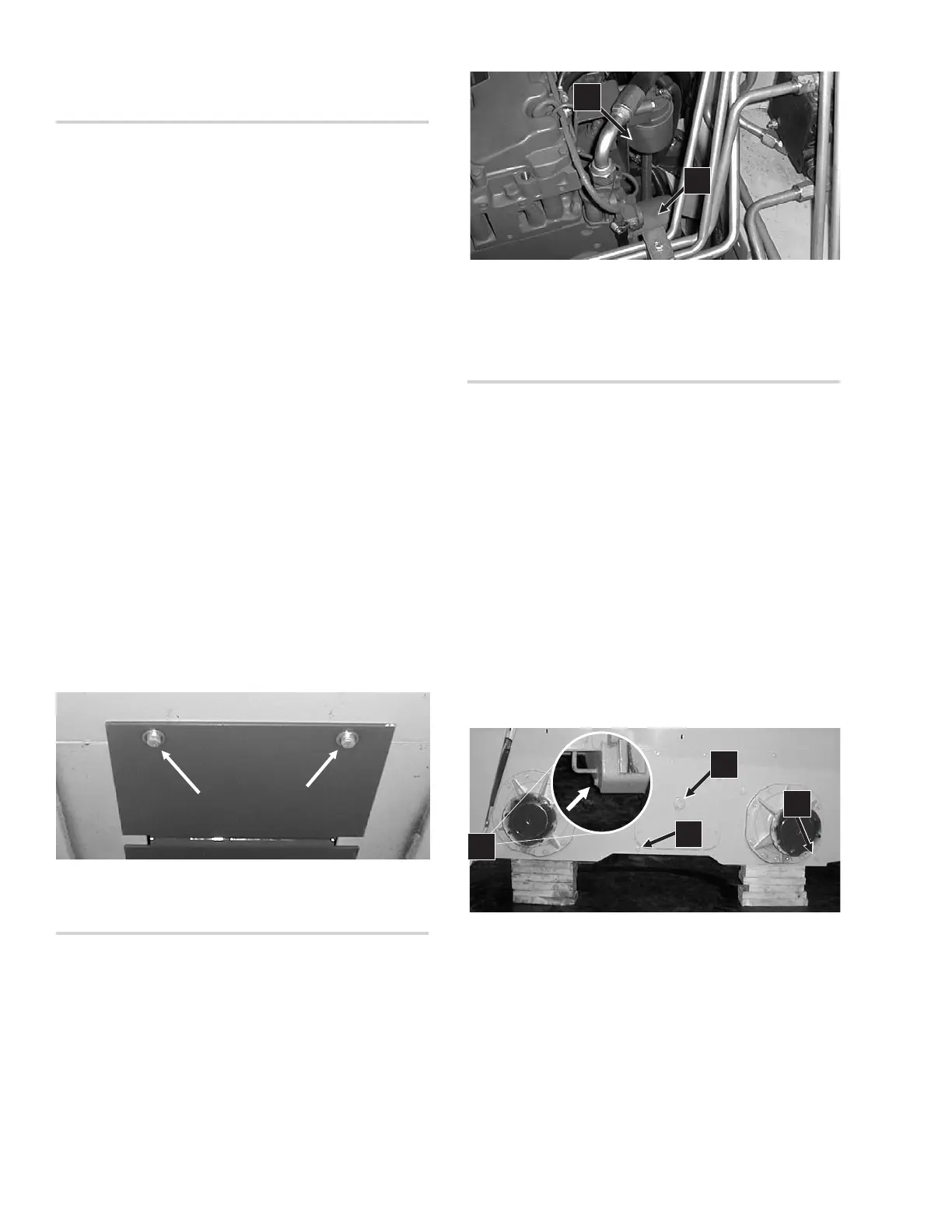

Fig. 10-4: Rear Skid Plate Cover Bolts
Fig. 10-5: Changing the Oil & Fuel Filters
1. Engine Oil Filter
2. Fuel Filter
1
2
Fig. 10-6: Changing the Chaincase Oil
1. Chaincase Fill Plug
2. Check Plug
3. Rear Chaincase Drain Plugs
4. Front Chaincase Drain Plugs
1
3
2
4
