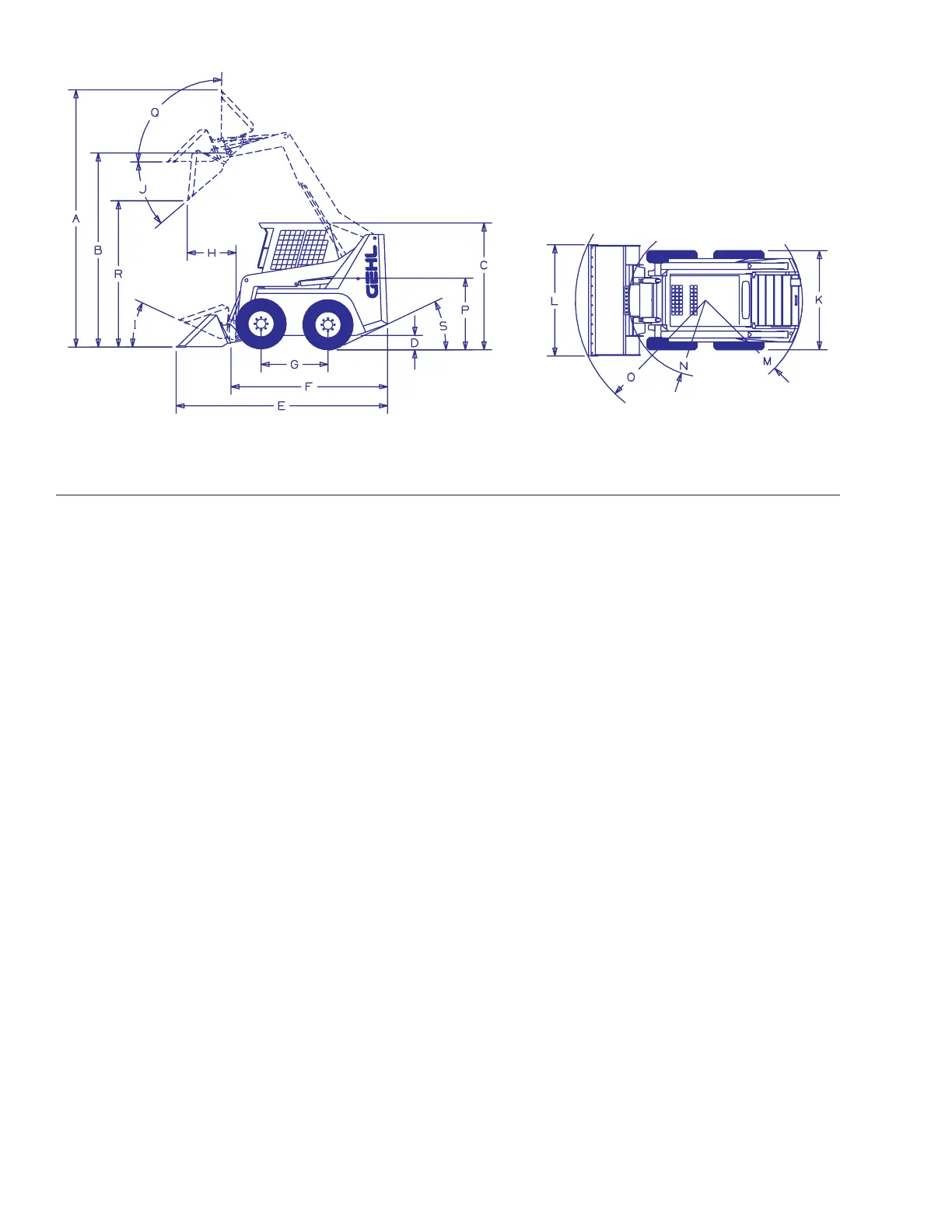

General Specifications
SL4635 SL4835
inch (mm) inch (mm)
A Overall Operation Height - Fully Raised 153.0 (3886) 153.0 (3886)
B Height to Hinge Pin - Fully Raised 115.0 (2921) 115.0 (2921)
C Overall Height - Top of ROPS 76.0 (1937) 76.0 (1937)
D Ground Clearance to Chassis (Between Wheels) 7.7 (197) 7.7 (197)
Ground Clearance to Chassis (Below Chaincase) 7.0 (178) 7.0 (178)
E Overall Length (w/65" Dirt/Construction Bucket Down) 121.2 (3080)
Overall Length (w/68" Utility Bucket Down) 125.3 (3184)
F Overall Length (less Bucket) 89.5 (2273) 93.6 (2377)
G Wheel Base 37.0 (940) 41.1 (1044)
H Dump Reach-w/65" Dirt/Construction Bucket (full height) 27.6 (701)
Dump Reach-w/68" Dirt/Construction Bucket (full height) 27.6 (701)
Dump Reach-w/65" Dirt/Construction Bucket (110" height) 29.0 (737)
Dump Reach-w/68" Dirt/Construction Bucket (110" height) 29.0 (737)
I Rollback Angle at Ground 27° 27°
J Dump Angle at Full Height 40° 40°
K Overall Width-less Bucket (w/7.00 x 15 Tires) 58.5 (1486) 58.5 (1486)
Overall Width-less Bucket (w/10.00 x 16.5 Tires) 62.0 (1575) 62.0 (1575)
Overall Width-less Bucket (w/31.5 x 15.00 x 16.5 Tires) 67.5 (1715) 67.5 (1715)
L Bucket Width (65" Dirt-Construction Bucket) - Overall 67.0 (1702)
Bucket Width (68" Dirt/Construction Bucket) - Overall 69.8 (1775)
M Clearance Circle - Rear 57.0 (1448) 59.0 (1499)
N Clearance Circle - Front (less Bucket) 46.0 (1168) 47.0 (1194)
O Clearance Circle - Front (w/65" Dirt/Construction Bucket) 77.0 (1956)
Clearance Circle - Front (w/68" Utility Bucket) 79.5 (2019)
P Seat to Ground Height 34.5 (876) 34.5 (876)
Q Rollback Angle at Full Height 98° 98°
R Dump Height (w/65" Dirt/Construction Bucket) 87.2 (2216)
Dump Height (w/68" Dirt/Construction Bucket) 87.2 (2216)
S Departure Angle 28° 28°
Reach Maximum (65" Dirt/Construction Bucket Tipped) 23.6 (599)
Reach Maximum (68" Dirt/Construction Bucket Tipped) 23.6 (599)
Reach Maximum (65" Dirt/Construction Bucket Flat) 54.2 (1378)
Reach Maximum (68" Dirt/Construction Bucket Flat) 54.2 (1378)
Dump Height at Maximum Reach (Floor to Cutting Edge - 65") 27.0 (686)
Dump Height at Maximum Reach (Floor to Cutting Edge - 68") 27.0 (686)
Height to Top of Riser 66.7 (1695) 66.7 (1695)
Maximum Back Grading Angle 87° 87°
