Perform all drive control functions before operating
both lift/tilt and drive controls. Return the drive
controls to the “neutral” position to stop all movement.
NOTE: If the engine stalls, all controls must be
returned to their “neutral” positions before
restarting the engine.
Operating skills are obtained through proper
coordination of the loader’s forward and reverse
movements, with raising and lowering the lift arm and
rolling the bucket forward and back. To gain
proficiency, practice all control handle operations until
you are capable of performing the movements without
mistake or hesitation.
WARNING
BEFORE leaving the operator’s compartment,
BE SURE to lower the lift arm or engage the lift
arm support device, as appropriate.
NOTE: If the loader will not start, the lift arm can be
lowered by sitting in the operator’s seat with the
restraint bar down, turning the key to the “ON”
position and then lowering the lift arm.
PRINTED IN USA 39 907808/CP0300

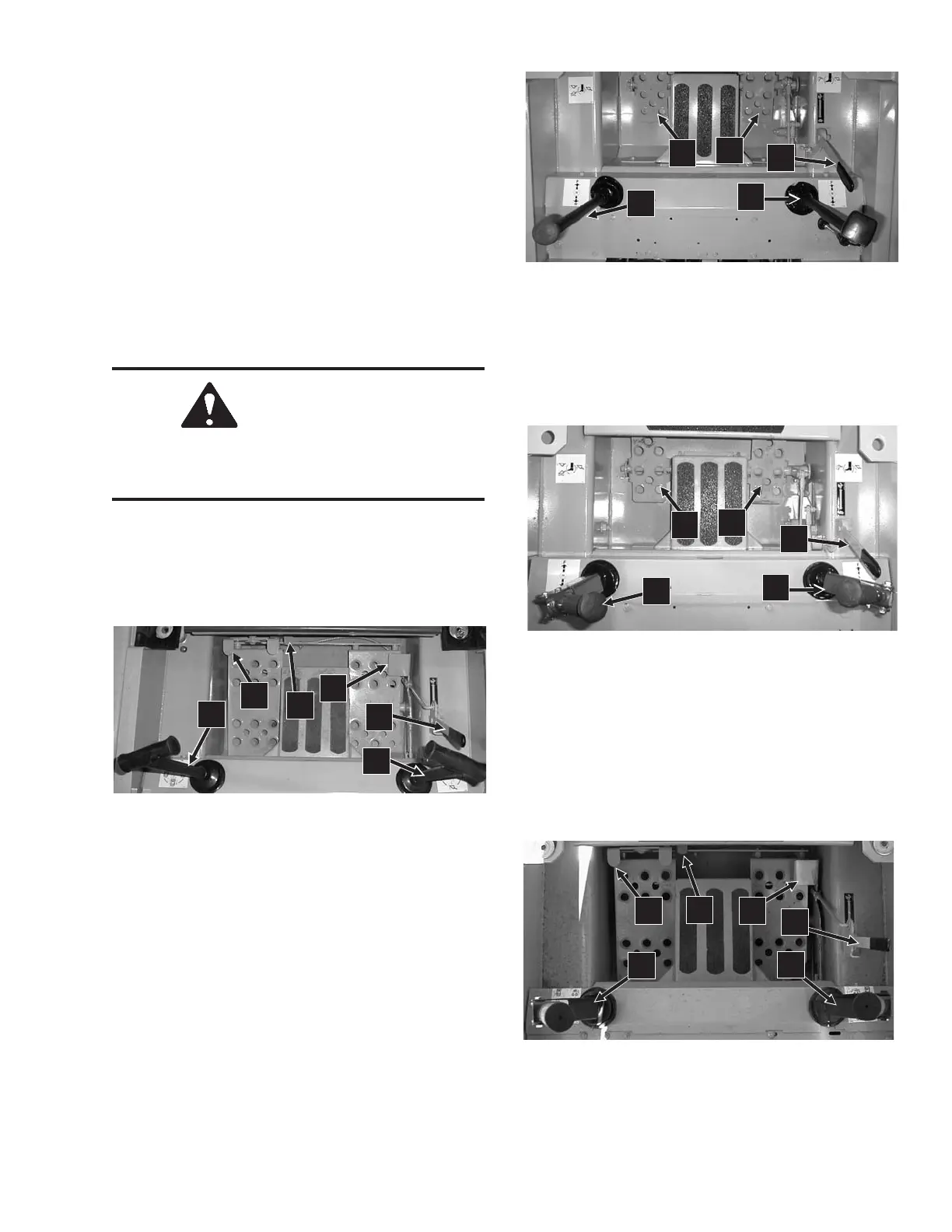

Fig. 6-2: T-Bar Controls
1. Drive Control T-Bar
2. Auxiliary Hydraulics Foot Pedal
3. Foot Throttle
4. Hand Throttle
5. Lift/Tilt Control T-Bar
6. Auxiliary Hydraulics Foot Pedal Stop
Fig. 6-3: Hand & Foot Controls w/Electric
Auxiliary Hydraulics
1. Left Drive Control Handle
2. Right Drive Control Handle & Electric Auxiliary
Hydraulic Switch
3. Hand Throttle
4. Tilt Control Foot Pedal
5. Lift Control Foot Pedal
2
6
3
5
4
1
1
3
2
4
5
Fig 6-4: Hand & Foot Controls w/Mechanical
Auxiliary Hydraulics
1. Left Drive Control Handle
2. Right Drive Control Handle & Mechanical
Auxiliary Hydraulic Control
3. Hand Throttle
4. Tilt Control Foot Pedal
5. Lift Control Foot Pedal
5
4
2
3
1
Fig. 6-5: Dual Hand Controls
1. Left Drive/Lift Control Handle
2. Right Drive/Tilt Control Handle
3. Auxiliary Hydraulics Foot Pedal
4. Auxiliary Hydraulics Foot Pedal Stop
5. Foot Throttle
6. Hand Throttle
4
1
6
3
5
2
