Refer to the Service chapter of this manual for further details
907808/CP0300 52 PRINTED IN USA

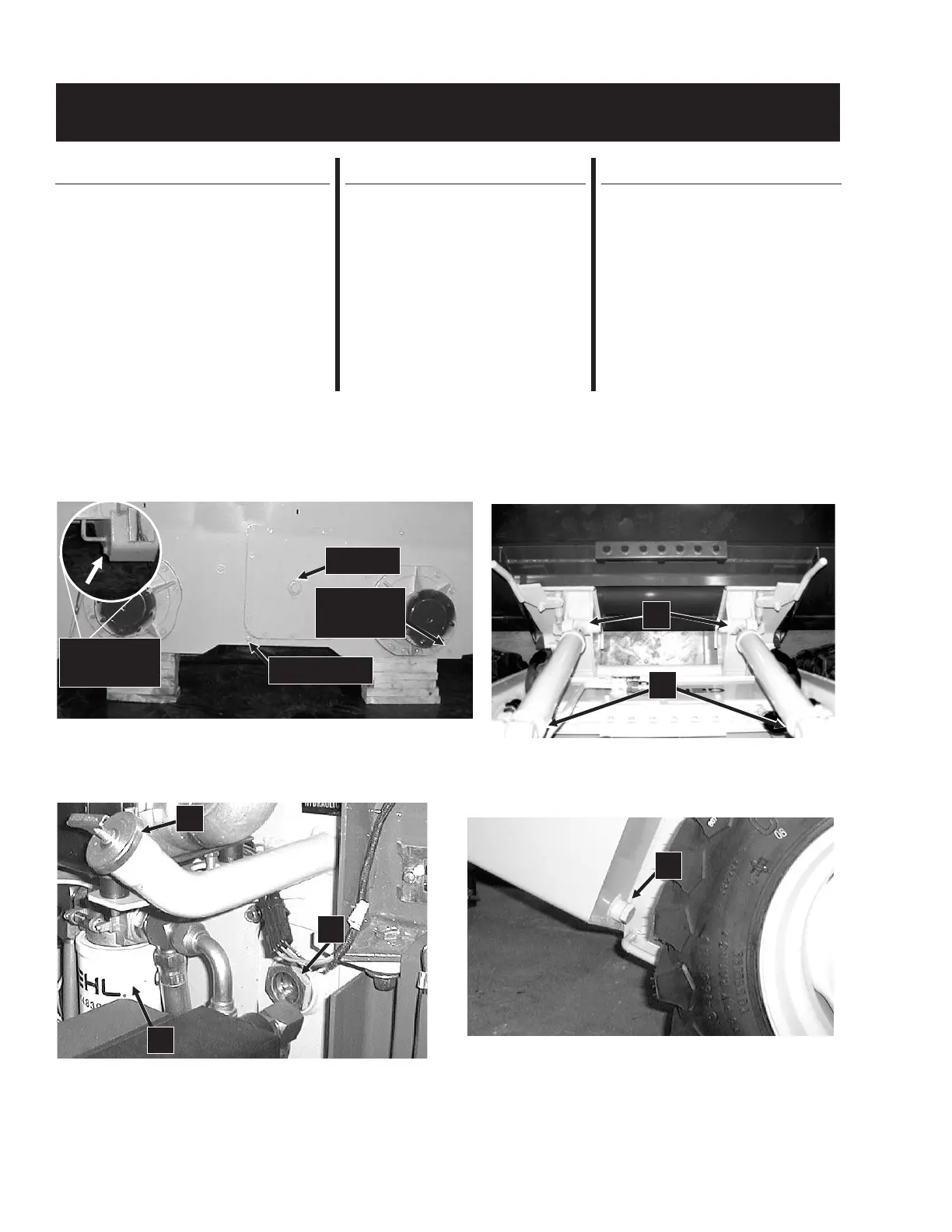

LUBRICATION LOCATIONS
Every 10 Hours (or daily)
1. Grease the lift arm pivots (2)
2. Grease the lift cylinder pivots (2)
3. Grease the tilt cylinder pivots (4)
4. Grease All-Tach/Quick-Tach
attachment pivots (2)
5. Check the engine oil level
6. Check the hydraulic oil level
Every 100 Hours
7. Check the oil level in the
chaincases
8. Check the hydraulic filter
indicator
Every 500 Hours (or annually)
9. Change the hydraulic oil
10. Change the chaincase oil
11. Change the engine oil and
filters*
*Refer to the engine manual for
additional information on change
intervals, including a 50 hour initial
oil change interval.
Fig. 8-1: Chaincase Oil Level Check
Fig. 8-2: Tilt Cylinder Grease Points
Fig. 8-3: Hydraulic Filter and Level Indicators
Rear Drain
Plug
Check Plug
Fill Plug
3
3
8
9
6
Front Drain
Plug
Fig. 8-4: Hydraulic Drain Plug on Right Riser
9
