17 System mode ADVANCED

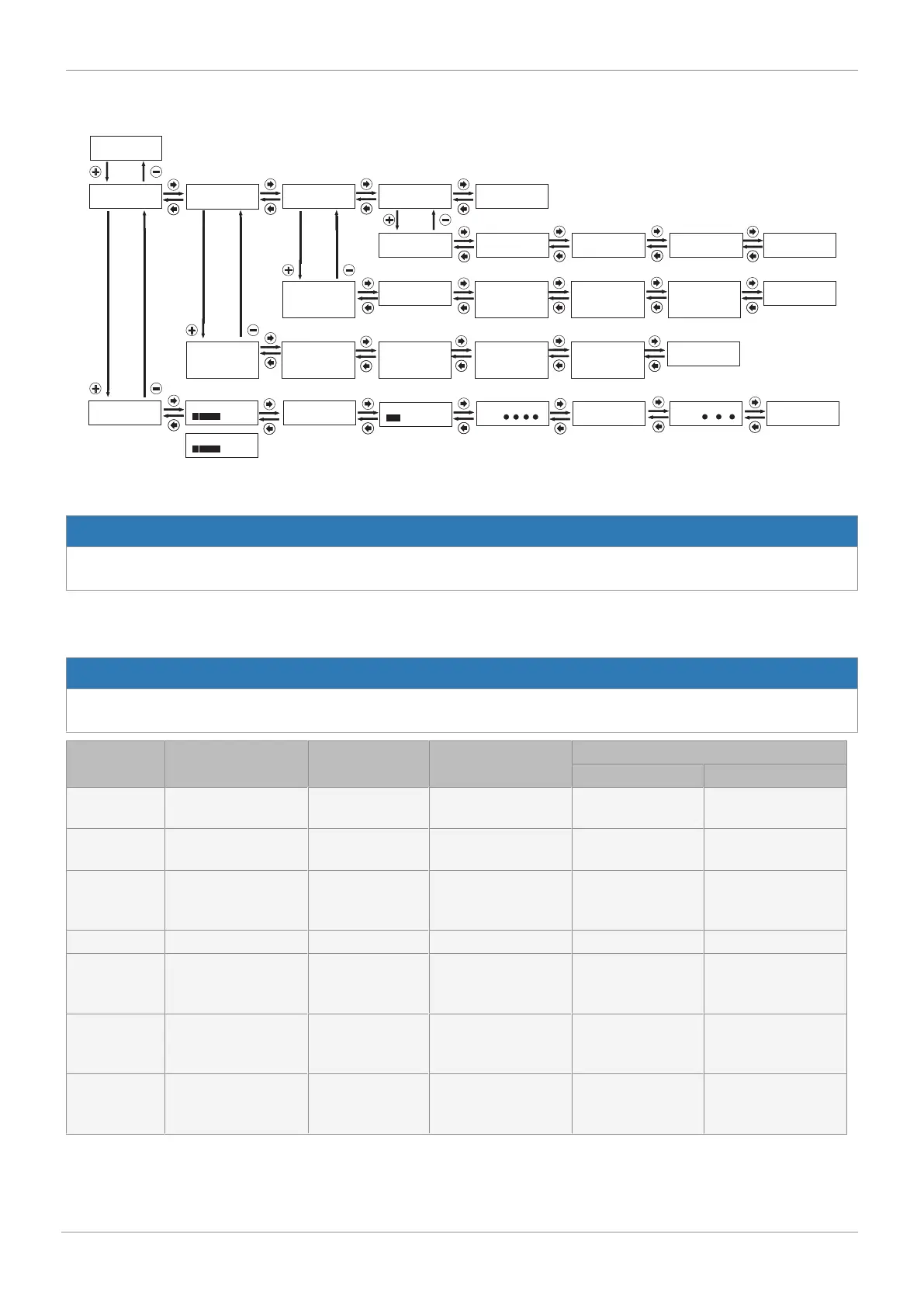

17.2.3 Menu 1 Service
Diagnosis
1.3
Logout
Service
1
hrs. XXXXX:XX:XX
I w: XX.X mA
I / O Status
1.1
S/N 743984/ 1
Seriennummer
Gemü specific
1.4
Return
W. Pos X
XX.X % XX.X%
Relais K1 : K2 : Err
Return
1.5
Return
Return
Valve. 1 : 2 : 3 : 4
Code: 0
Active Level: 3
(0...10000)
Logout?
OK
NewCode:1 0
0...10000
NewCode:2 0
0...10000
Warnings ON
ON...OFF
Errors ON ....
ON...OFF
Clear Error List
OK
NewCode:3 0
0...10000
1.2
V: 1.1.1.1
min - Pot - max
0,0 % 100 %
Pot Abs XX.X %
Pos Ctrl Out.
I
Error List
Return
TAG2
TAG1
U w: XX.X V
17.2.3.1 Parameter table for 1 Service
NOTICE
▶ Certain Active Levels are required (see “Activating or deactivating user access“, page47) in order to read and edit the
parameters.
17.2.3.1.1 I/O status
Submenu for displaying inputs and outputs
NOTICE
▶ Certain Active Levels are required (see “Activating or deactivating user access“, page47) in order to read and edit the
parameters.
Display Function Value range Default setting Active level
Read Edit
min-Pot-max Displays travel sensor
position in percent
0 o.r.*
1)
Iw / Uw Value of set value sig-
nal in mA / V
0 o.r.*
1)
W Pos X Comparison of set
value and valve posi-
tion
0 o.r.*
1)
Pot Abs Travel sensor position 0 o.r.*
1)
Valve Displays the current
position of the in-
ternal pilot valves
0 o.r.*
1)
Pos Ctrl Out Deviation between set
value and actual value
(positioner)
0 o.r.*
1)
Relay
K1:K2:Err
Displays the current
position of the in-
ternal outputs
0 o.r.*
1)
1) o.r. = only readable
