Gemalto Cinterion ELS61T-US User Manual

Cinterion
®
LTE Terminals Hardware Interface Description
3.6 GPIO Interface
47
 ELSxT_HID_v04 2018-09-04
Confidential / Preliminary
Page 30 of 102

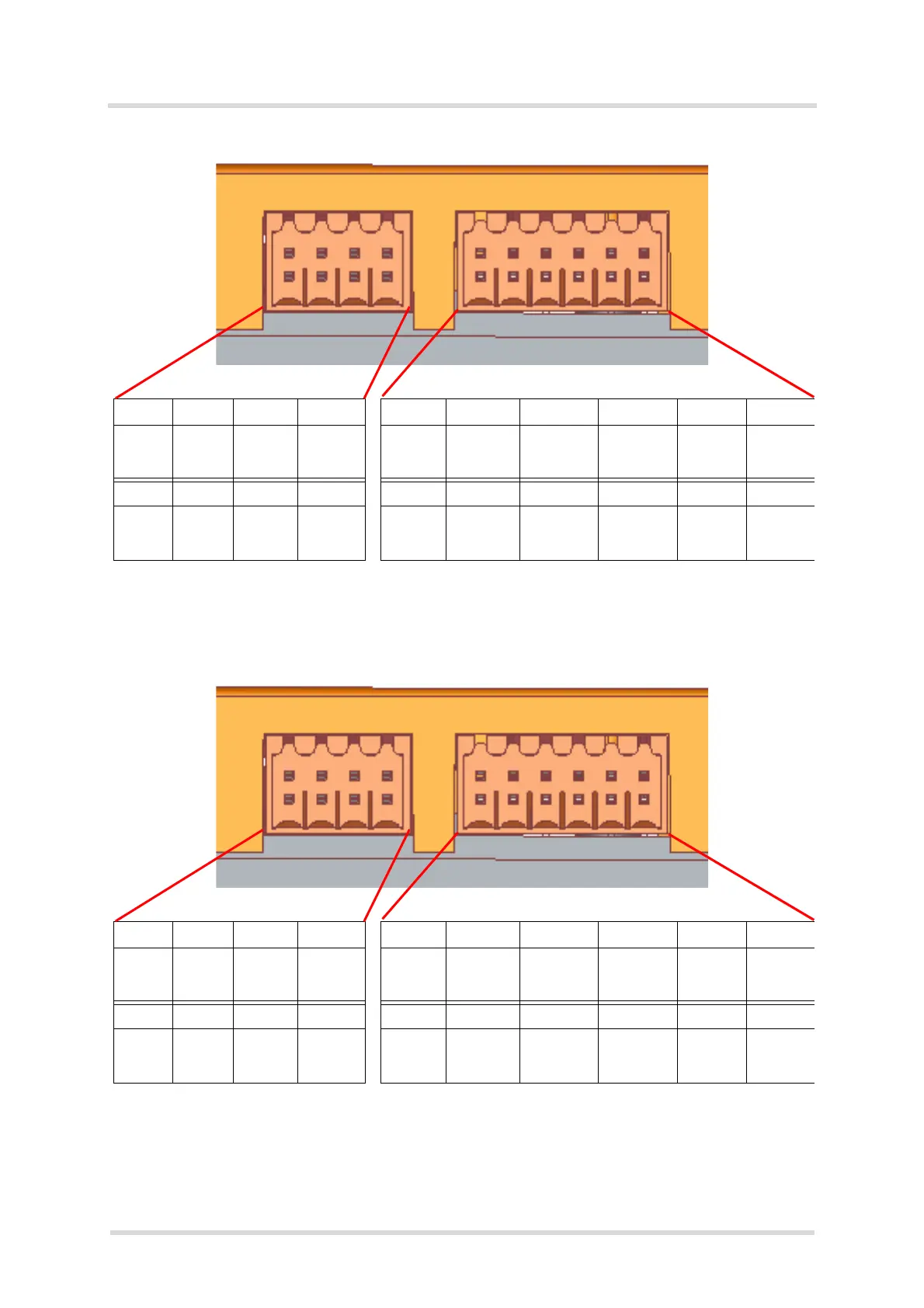

Figure 9: ELS61T-E: GPIO connectors (8-pin and 12-pin)
Figure 10: ELS61T-E2: GPIO connectors (8-pin and 12-pin)
12 3 4 1 2 3 4 5 6
GPIO6 GPIO7 GPIO8 GPIO11 VCCref GND TXD1/
SPI_MISO
RXD1/
SPI_MOSI
CTS1
(RS232)/
SPI_CS
RTS1
(RS232)
56 7 8 7 8 9 10 11 12
GPIO12 GPIO13 GPIO22/ GPIO23 +5Vout DSR0/
ADC1_IN/
SPI_CLK
I2CDAT I2CCLK GPIO20 GPIO21
ELS61T-E:
12 3 4 1 2 3 4 5 6
GPIO6 GPIO7 GPIO8 GPIO11 VCCref GND TXD1/
SPI_MISO
RXD1/
SPI_MOSI
CTS1
(RS232)/
SPI_CS
RTS1
(RS232)
56 7 8 7 8 9 10 11 12
GPIO12 GPIO13 GPIO22/
FSC
GPIO23/
BCLK
+5Vout DSR0/
ADC1_IN/
SPI_CLK
I2CDAT I2CCLK GPIO20/
DOUT
GPIO21/
DIN
ELS61T-E2:
