Gemalto Cinterion ELS61T-US User Manual

Cinterion
®
LTE Terminals Hardware Interface Description
3 Interface Description
47
 ELSxT_HID_v04 2018-09-04
Confidential / Preliminary
Page 24 of 102
3 Interface Description
3.1 Overview
LTE Terminals provide the following interfaces for power supply, antenna, SIM card and data
transfer:

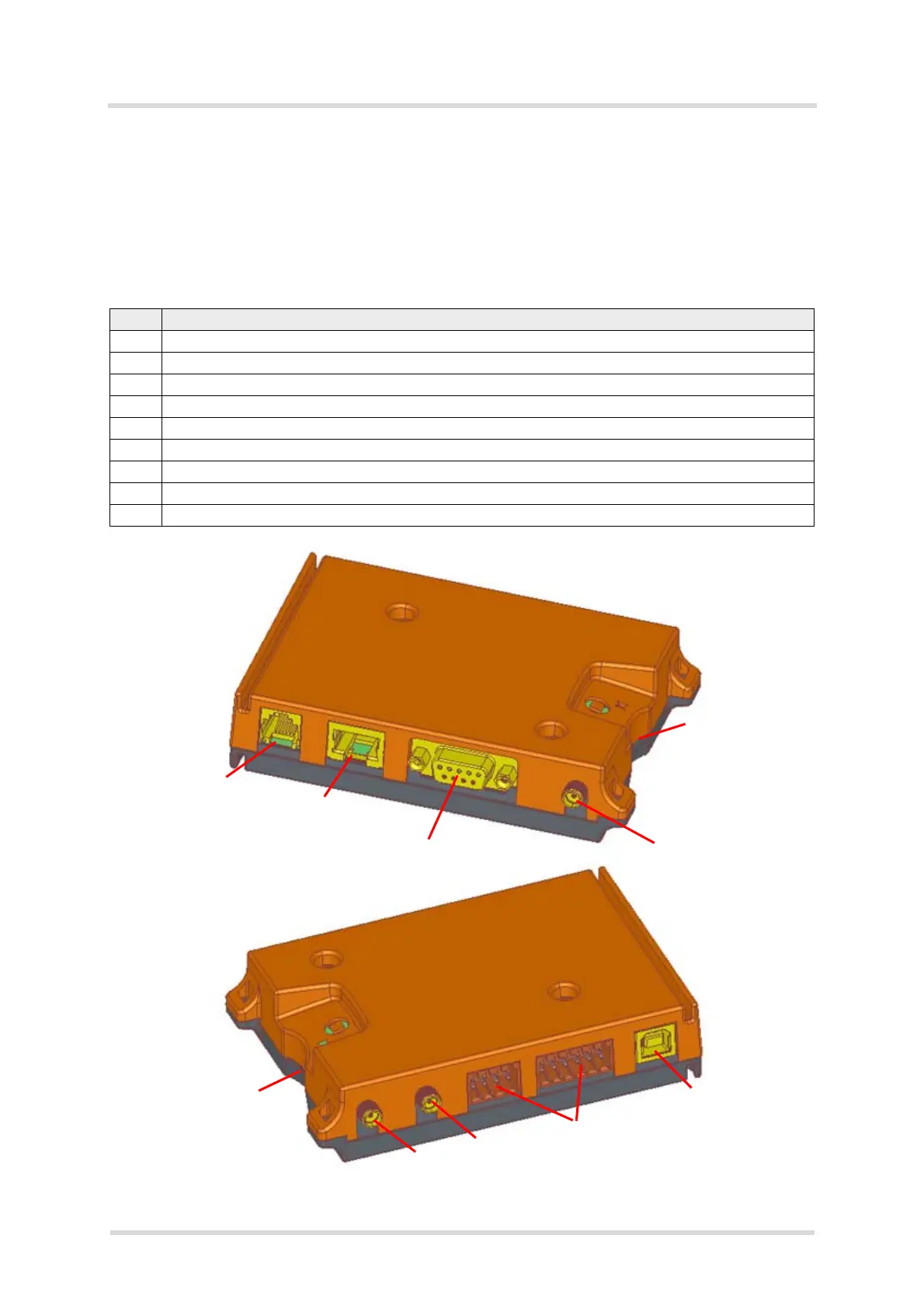

Figure 4: LTE Terminals 3D view
Table 11: LTE Terminals‘ interfaces
No. Description
1 6-pin Western connector (female) for power supply, ignition, power down signal
2 8-pin (female) RJ-45 Ethernet connector
3 9-pin (female) D-sub connector (RS-232 interface)
4 SMA connector (female) for GPS antennas (for future use, currently not available)
5 SIM card reader
6 SMA connector (female) for RF main antenna
7 SMA connector (female) for Rx diversity antenna
8 12-pin and 8-pin GPIO connectors (male)
9 4-pin (female) USB-B connector (for future use, currently not available)
4
3
1
9
5
5
2
6
7
8
