Cinterion
®
LTE Terminals Hardware Interface Description
5 Mechanics, Mounting and Packaging
65
ELSxT_HID_v04 2018-09-04
Confidential / Preliminary
Page 61 of 102
5 Mechanics, Mounting and Packaging
5.1 Mechanical Dimensions
Figure 22 shows a 3D view of the LTE Terminal and provides an overview of the mechanical
dimensions of the board. For further details see Figure 23 and Figure 24. To allow for an easier
mechanical implementation into an external application 3D STP data for the LTE Terminals is
attached to this PDF. Please open the Attachments navigation panel to view and save this in-
formation.

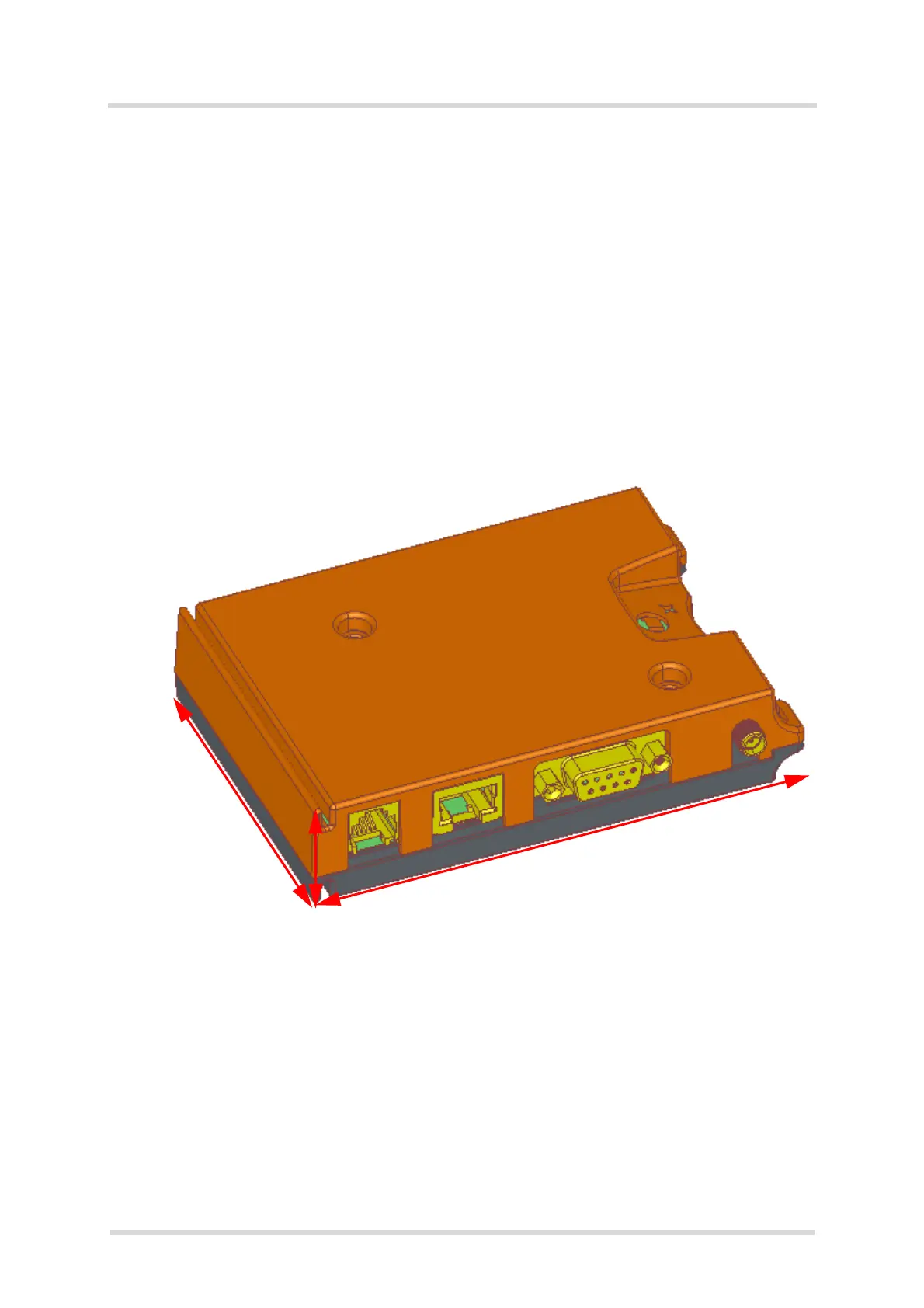

Figure 22: LTE Terminals 3D overview
Length: 113.5mm (including fixtures for cable straps)
Width: 75mm (excluding antenna and serial interface connectors)
Height: 25.5mm
Weight: 120g
113.5mm
75mm
25.5mm
