3.14 Status LEDs
LTE Terminals have two LEDs indicating its operating states through the semitransparent cas-
ing:
• A green LED indicates whether the LTE Terminals are ready to operate and reports certain
watchdog operations.
• An orange LED indicates the network registration state of the LTE Terminals.

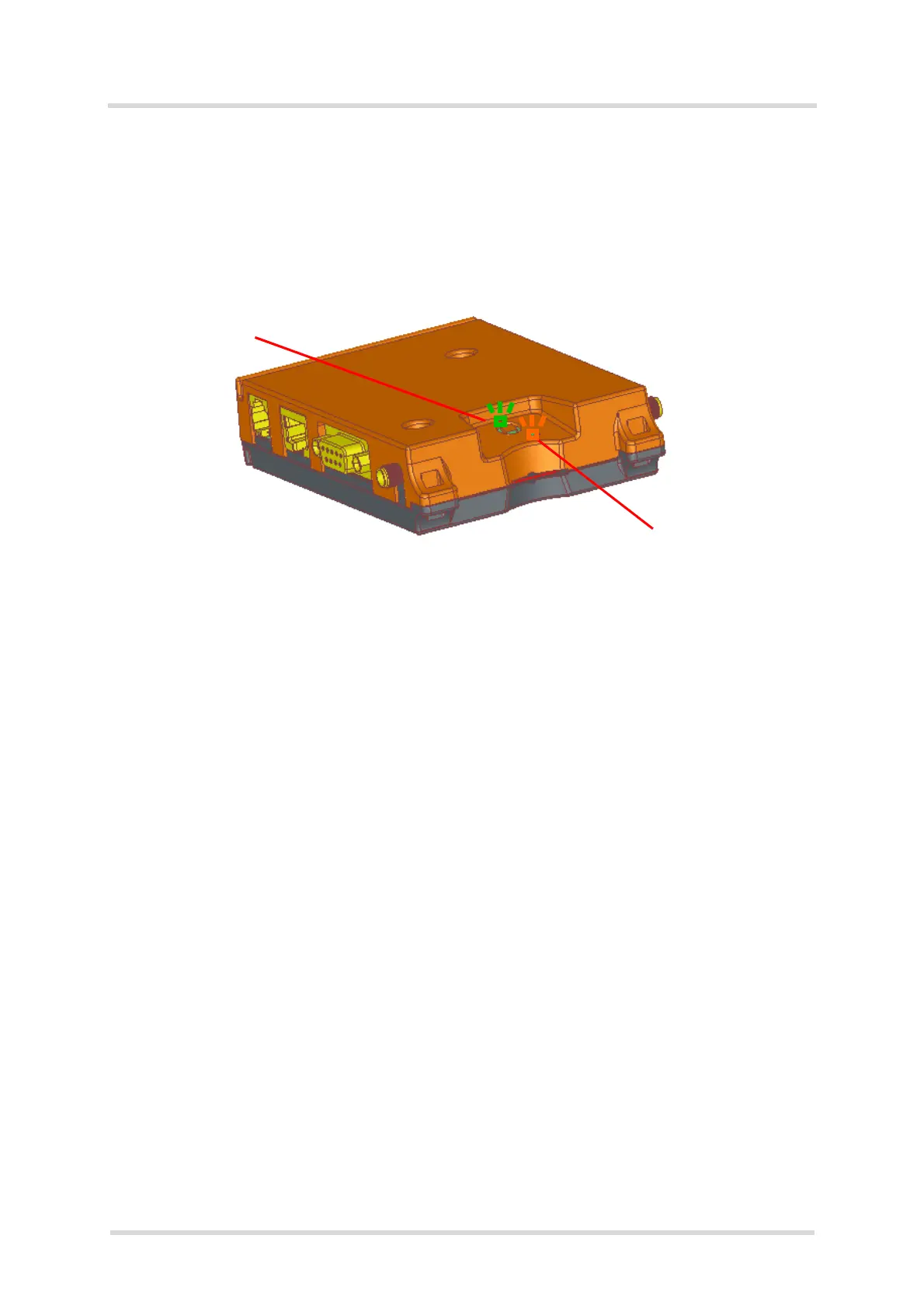

Figure 20: Status LED
The orange LED can be configured by using the AT^SLED command to either light permanent-
ly or to flash. For details on the AT command please refer to [1].
Green LED
(Power on/off)
Orange LED
(Network status)
