1436 cPos
13.3 3SetFunction
Service
1
SetBasics
2
SetFunction
3
SetCalibration
4
Return
6
SETUP
Communication
5
13.3.1 Settingtheprocesscontrollerparameters(optional)
The following menus are only available for the design with integrated process controller (PA01).
ProcCtrlMode:
Switches the process controller on or o.
ProcCtrl:
Submenu for setting process controller parameters. Only available when ProcCtrlMode: is ON.
Proc-P:
Indicates the K
P amplication of the process controller.
Proc-I:
Indicates the T
i reset time for the process controller.
Proc-D:
Indicates the K
d process controller dierential component.
Proc-T:
Indicates the T
v delay time for the process controller. Only available if Proc-D > 0.

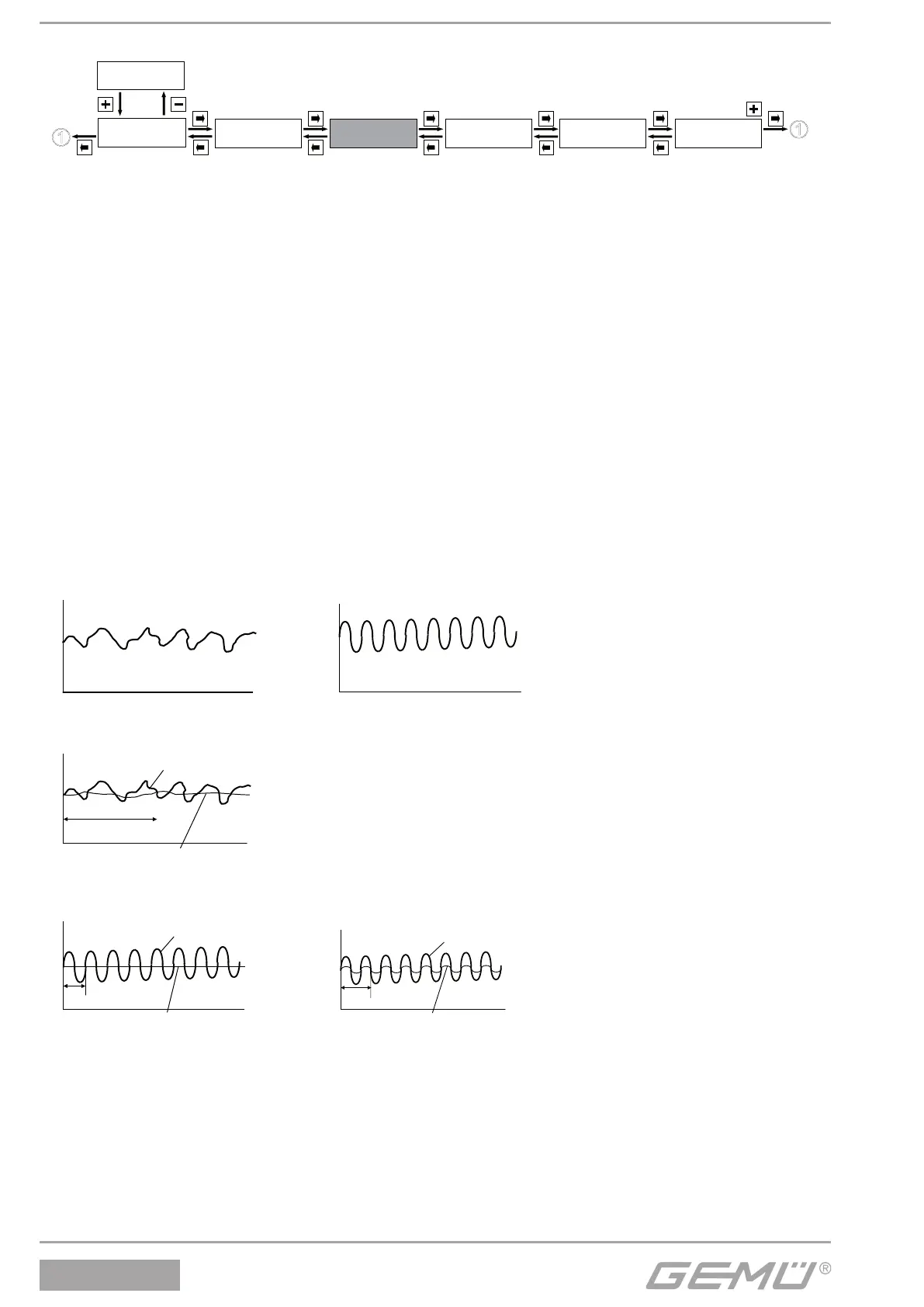

IxType:
Denes the type of actual value input lter.
OFF:
Actual value input lter deactivated.
Unfiltered signal input
Unfiltered signal input
IxType [OFF] IxType [OFF]
RC:
The actual value input signal is ltered via a low-pass lter.
IxType [RC]
Unfiltered signal input
Filtered signal input
IxTime
Avr:
The actual value input signal is calculated by averaging.
IxType [avr]
Unfiltered signal input
Filtered signal input
IxTime
IxType [avr]
Unfiltered signal input
Filtered signal input
IxTime
IxTime:
Denes the lter time for the actual value input.
