12 Owner’s Manual for Power Zone Gateway on PZ 410
Installation and Operation
Language

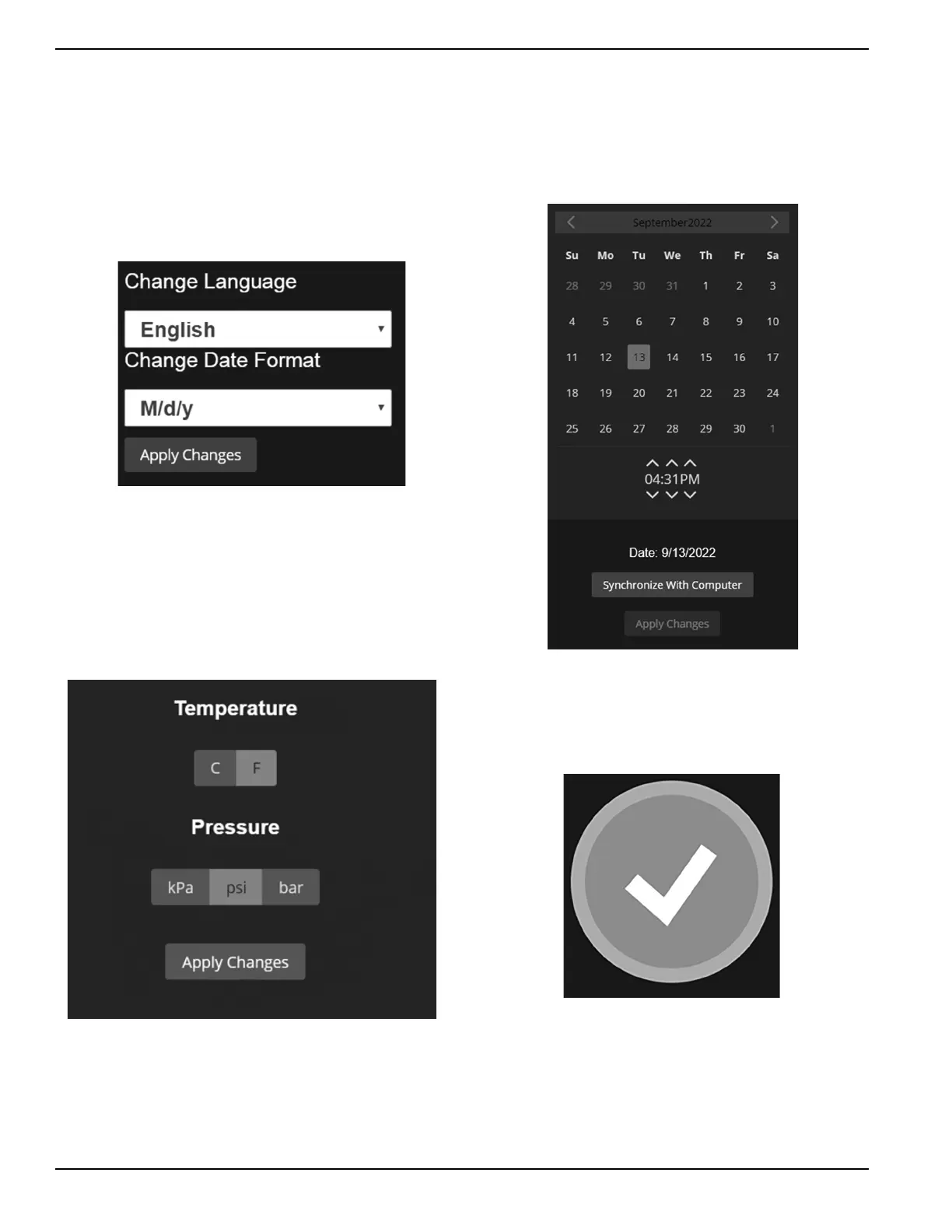

See Figure 3-9. The screen is designed to be multi-lin-
gual. Each remote user can have a different language
displayed without affecting the other remote users or the
Controller Built-in Display. To set the language, go to the
(E) Setup icon (on the bottom banner) choose “User” →
“Language/Locale”. A drop down box for languages will
appear on the right hand side. Select “Apply Changes” to
save the language selection.
Figure 3-9. Language Selection
Units of Measure
See Figure 3-10. To set the units of measure go to the
(E) Setup icon (on the bottom banner) and choose
“User”. A selection for “Units of Measure” will appear on
the right side of the screen. Checking the “Save” button
will save the selection.
Figure 3-10. Units of Measure
Date/Time
See Figure 3-11. The system date and time can be set
from the (E) Setup icon (on the bottom banner). Navigate
to Setup → Calendar → Date/Time.
Changing the date/time on the Gateway means a change
to the “System Time” and this will eventually change all
other connected equipment (displays and modules) in the
system. This will affect timestamps of data and execution
of calendar based commands.
The default time setting shown on the Gateway is set via
the date format setting on the controller built-in display.
Figure 3-11. Date / Time
Health Checkmark
See Figure 3-12. The checkmark indicates the system is
healthy.
Figure 3-12. System is Healthy (Green)
See Figure 3-13 and Figure 3-14. When the generator
has an alarm or warning status, the checkmark will
change to indicate the level of fault.
007522
014624
014703
007524
