16 Owner’s Manual for Power Zone Gateway on PZ 410
Installation and Operation

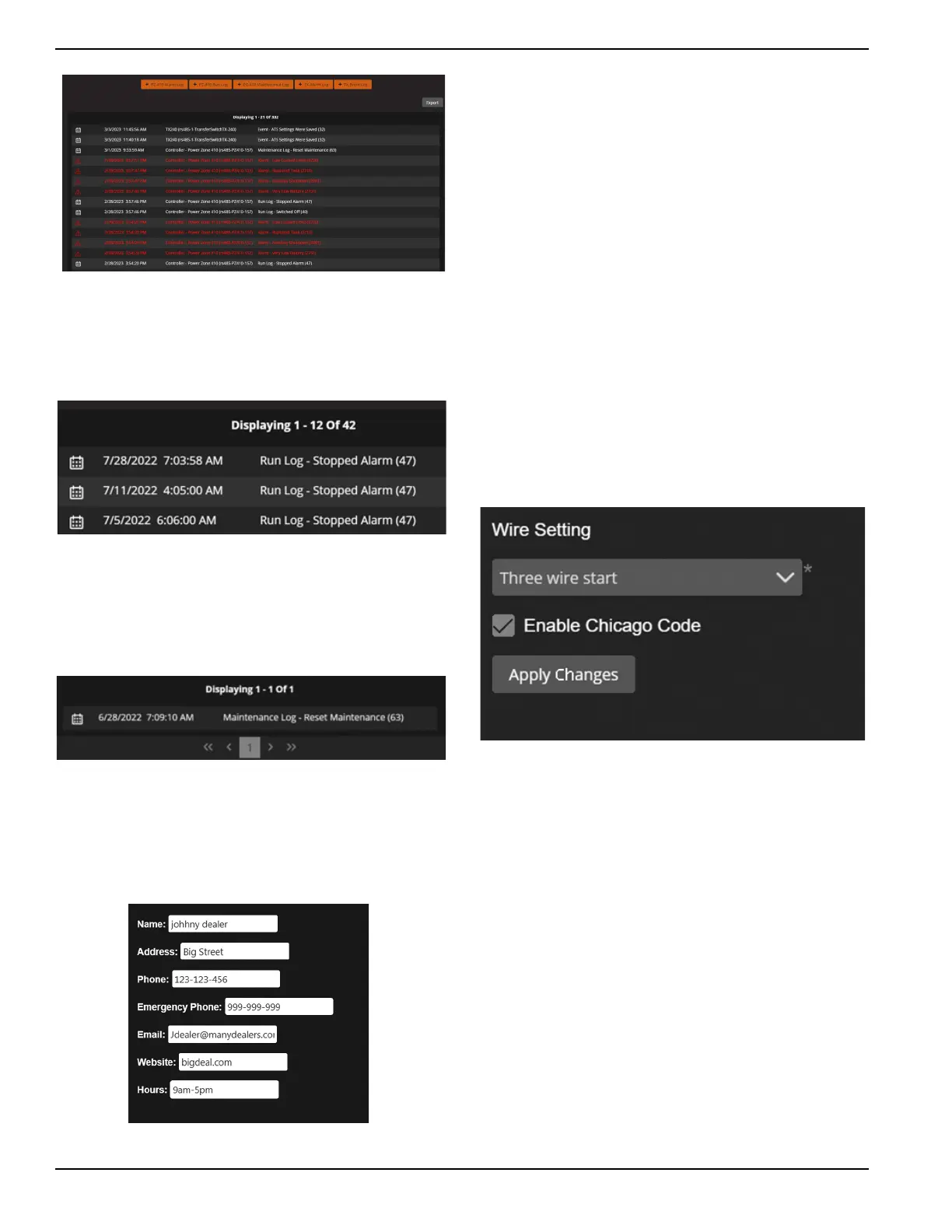

Figure 3-23. Alarm History
Run Logs
See Figure 3-24. The Run Logs screen shows the
generator operation history.
Figure 3-24. Run Logs
Maintenance Schedule
See Figure 3-25. The Maintenance Schedule screen
displays maintenance items organized by type, date, and
hours.
Figure 3-25. Maintenance Schedule
Contact Information
See Figure 3-26. The Dealer Information screen is an
editable text field where dealer contact information is
stored.
Figure 3-26. Contact Information
System Notes
The System Notes screen is an editable text field where
system notes and information are stored. It is available
from the System Details screen. Click the “Add” button to
add notes, then and click the “Submit” button to save
them. The notes will appear below. The notes can be
edited or deleted by clicking the “Edit” or “Delete” icons
on the notes.
Setup Menu
The Setup menu provides access to the submenus for
user language and units selection, system setup, AMF, I/
O alarm enabling, calendars, and communications.
User (Units and Language)
The User screen allows selection of units of measure and
language. These items are covered in Units of Measure.
System Setup
See Figure 3-27. The System Setup screen is used to
enter global settings about the generator.
Figure 3-27. System Setup
Wiring type selection is for two wire start or three wire
start.
Select ‘Enable Chicago Code’ to satisfy Chicago Code
requirements. Only for use in required jurisdiction.
Auto Mains Failure (AMF)
Auto Mains Failure (AMF) provides a way to control a
non-intelligent transfer switch from the Power Zone 410
Controller. When AMF is enabled, the Controller monitors
utility voltage and frequency, controls starting, and
stopping of the generator.
Ground Fault Indication (GFI)
The GFI feature is used to indicate when there is a higher
than desired combination of ground current and neutral
current.
015127
014635
014636
007539
014637
