NOTE：when bleeding the braking system, replenish the brake fluid reservoir if necessary. Make sure that there is
always some fluid visible in the reservoir.
Close the bleeder valve, disconnect the pipe. Fill the reservoir with brake fluid to the upper end of the inspection
window.
BLEEDER VALVE
TIGHTENING TORQUE: 6-9N.m(0.6-0.9kg-m,4.5-6.5lb-ft)
CAUTION：
Handle brake fluid with care: the fluid reacts chemically with paint, plastics, rubber materials, etc.
Rear brake

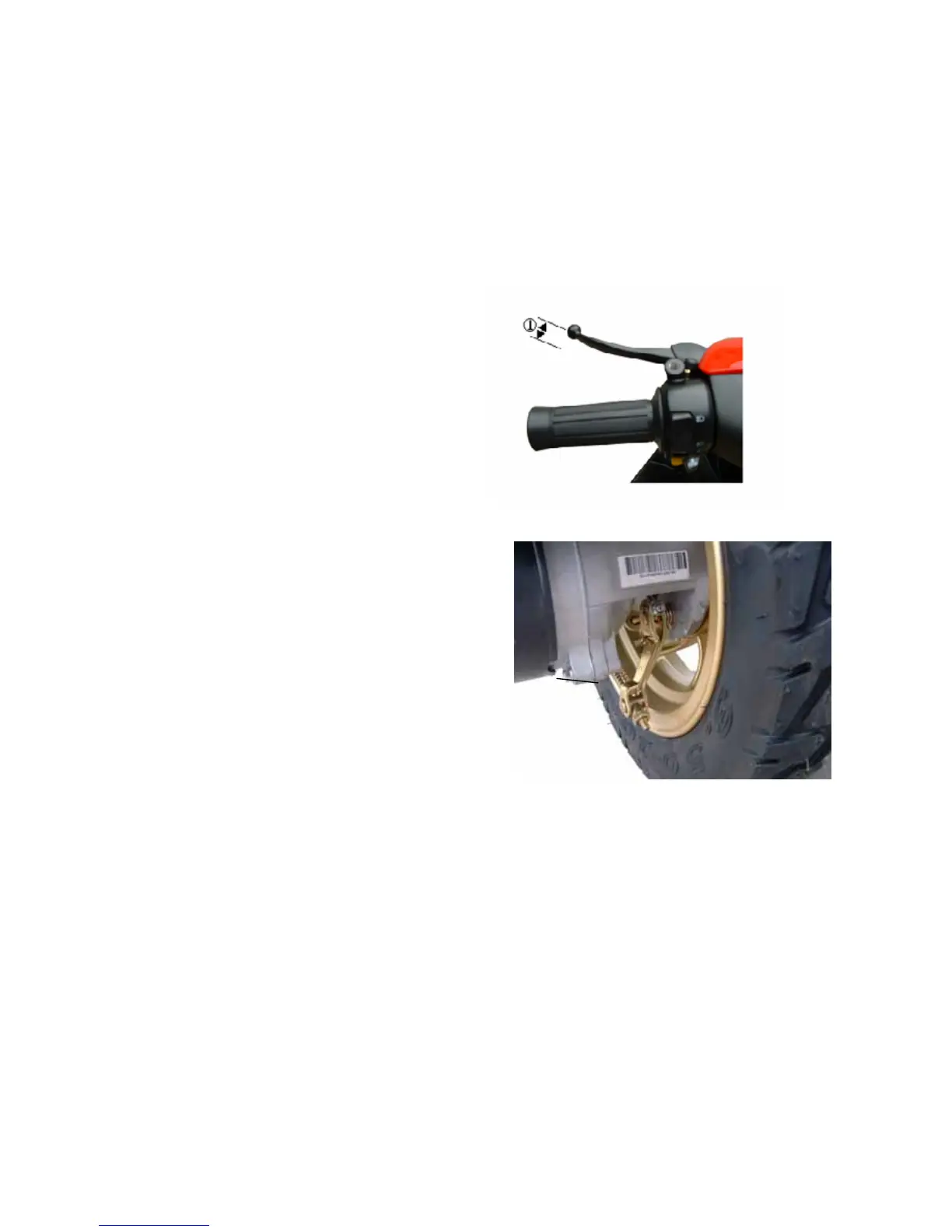

Turn adjusting nut so that the the play of the brake lever is 15-25MM as shown in the illustration.
Brake shoe wear：
The vehicle is equipped with the brake lining limit Indicator on
the rear brake.
Inspect brake lining limit as follows：
1. First check if the brake system is properly adjusted.
2. when operating the brake, check to see that the tip of
indicator is within the range.
3. if the tip of indicator is beyond the range, the brake shoe
assembly should be raplaced with anew set of shoe.
