49
CHARGING AND LIGHTING SYSTEM
The charging system uses the flywheel magnetoas shown in the figure. The charging and lighting coils are
mounted on the magneto stator and generate AC as the flywheel rotor turns. AC generated in the charging coil
flows to the regulator/recifier which changes AC to DC. The DC Then charges the battery.

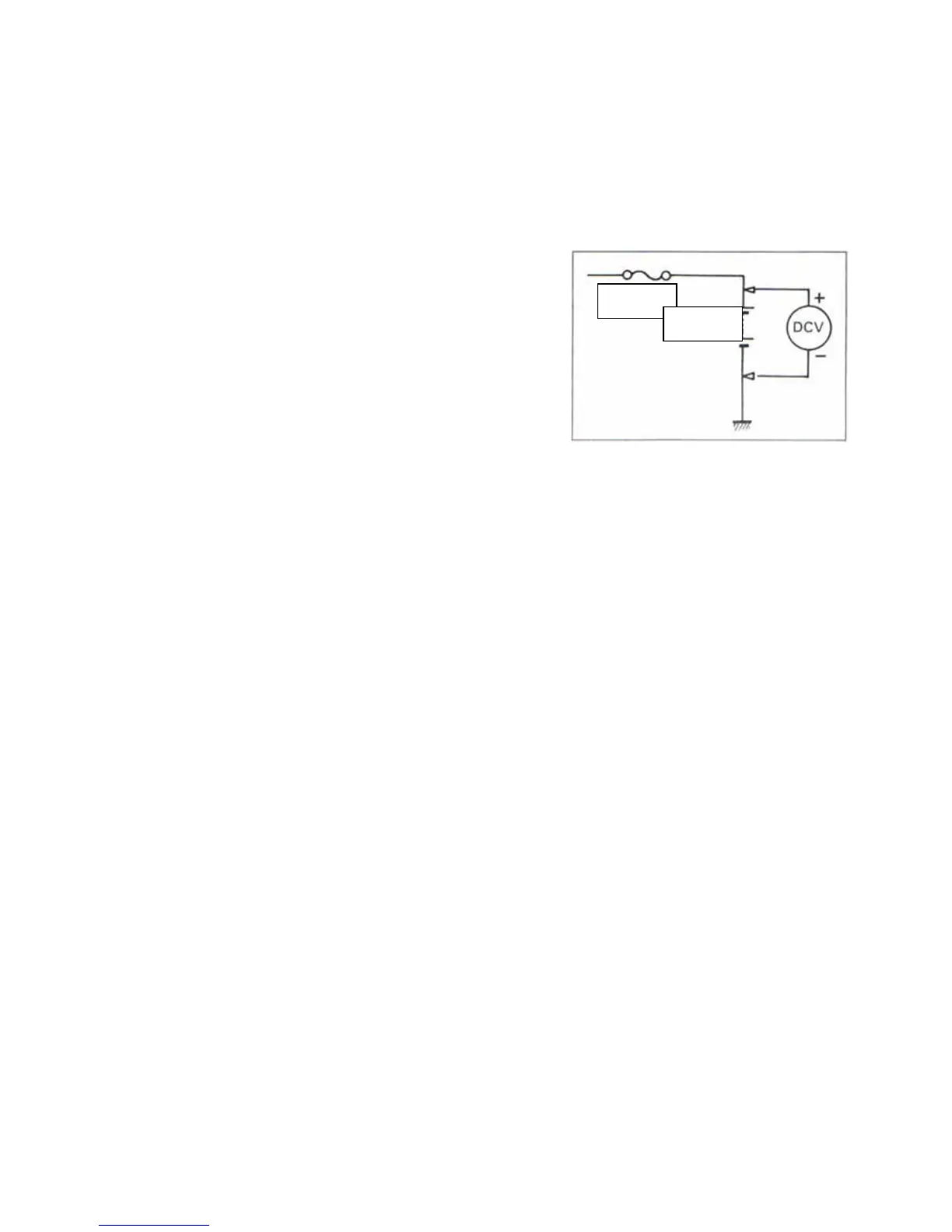

Charging output check
start the engine and keep it running at 5000r/min with lighting
switch turned on.
NOTE:
When making the test, be sure that the batteryis in fully
charged condition.
Tachometer
Standard charging output：13-16v at 5000r/min
Fuse
Battery
