SIGNAL SYSTEM

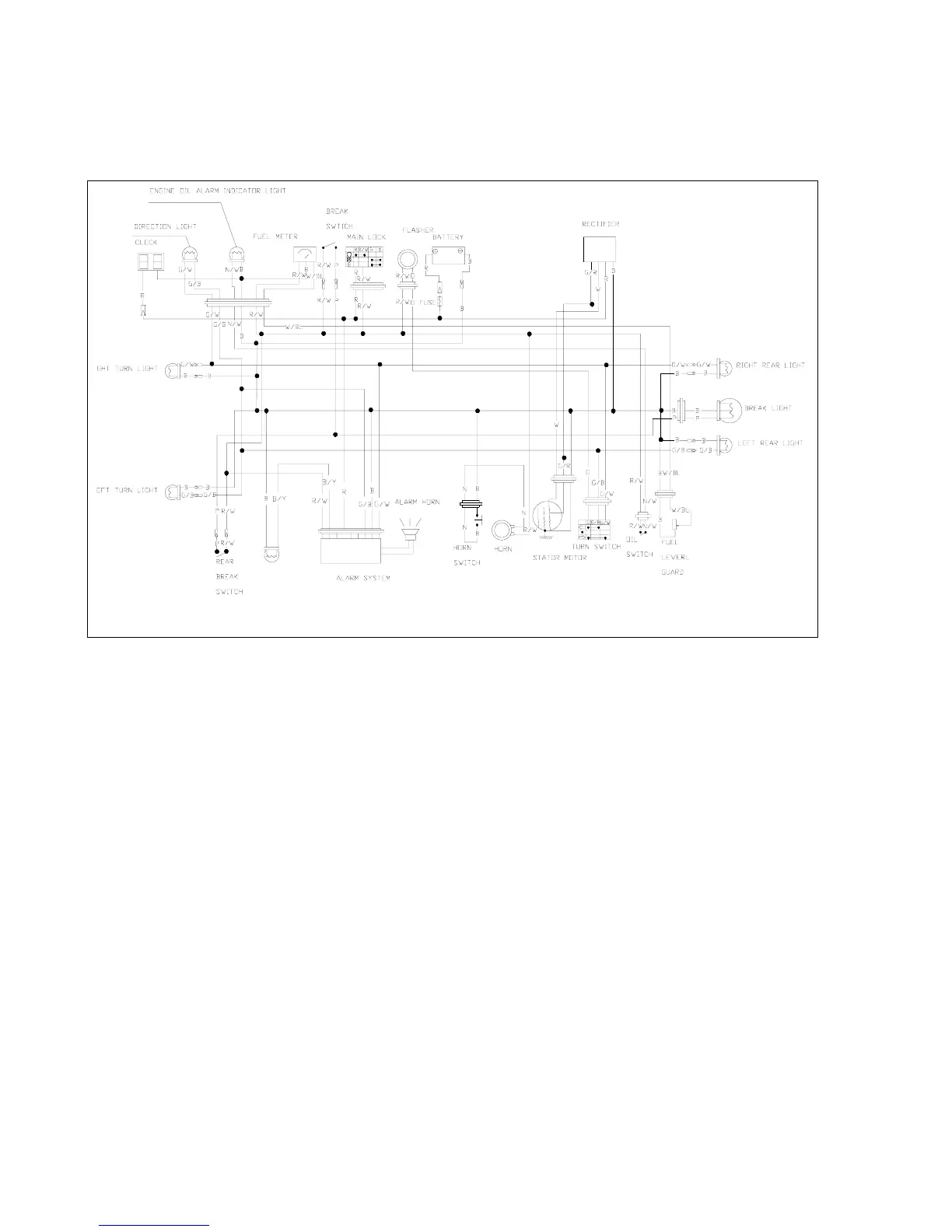

The same bulb is used tor both oil level check light and turn signal indicator light.The circuitry is shown
below.When the oil level has fallen to a certain level (the remaining amount of oil has become approximately 160
ml,the oil level check light turns on and remains lit.When the turn signal switch is turned on and the turn signal
light flashes,the turn signal indicator light (oil level check light)also flashes,both being not concurrently but
alternatively as one being lit white the other unit.
Fig. 7
OIL LEVEL SWITCH INSPECTION
Check the oil level switch for continuity between the lead wire.If the tester does not show the value of 0-1 ohm
when the switch ring is in bottom position,file the contact surface or replace the unit.
