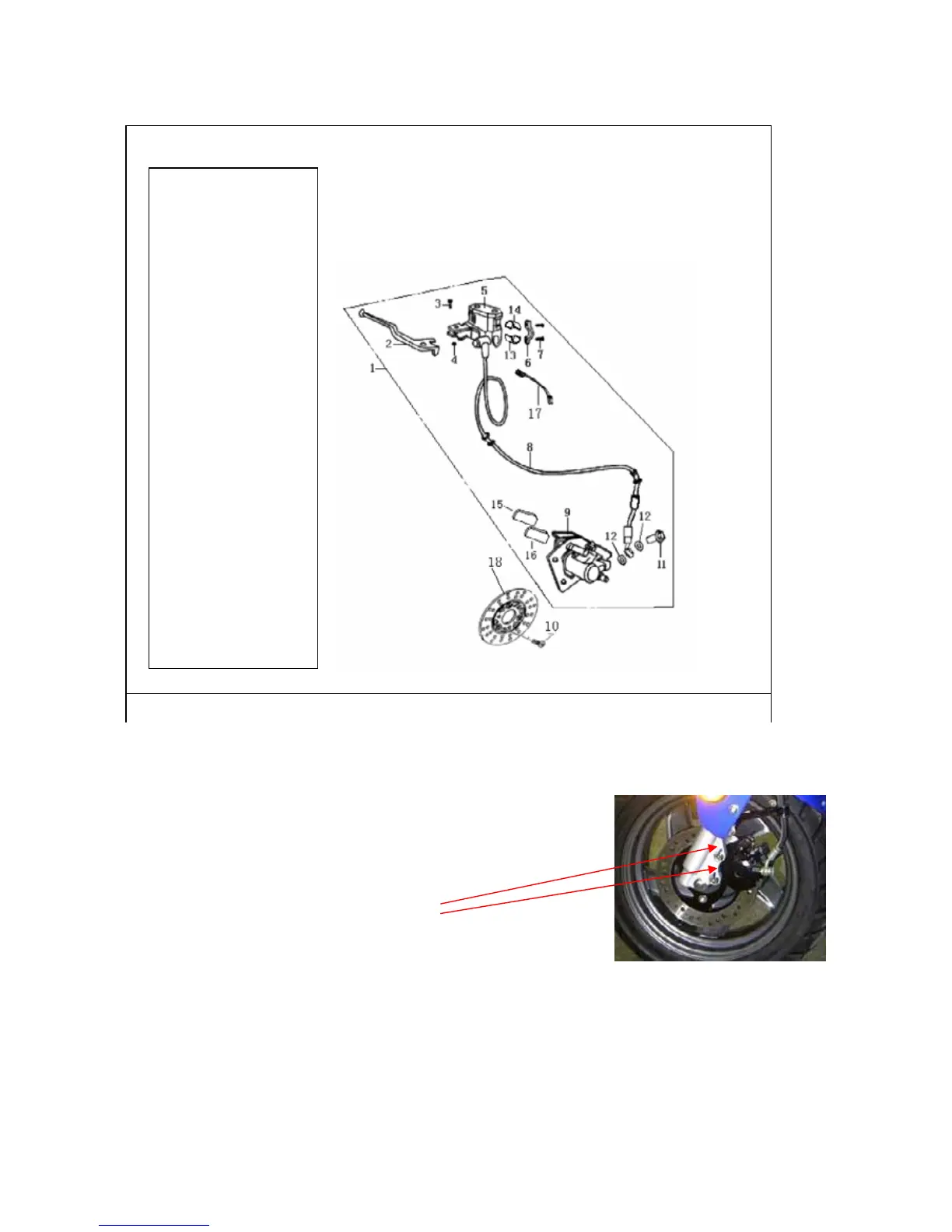

FRONT BRAKE SYSTEM

RAKE PAD REPLACEMENT

Remove the calliper by removing the mounting bolts  .

NOTE:

Do not operate the front brake lever while dismounting the calliper.

1. disc brake assy.

2. disc brake handle

lever

3. tightening bolt

4. nut M6

5. master cylinder

6. tightening seat

7. bolt M6X23

8. brake hose assy.

9. brake caliper

10. connecting

board tightening

bolt

11. hose mounting

bolt

12. seal gasket

13. front gasket

14. rear gasket

15. brake pad 1

16. brake pad 2

17. master cylinder

rubber bushing

18. front brake

switch
