61
LEGSHIELD
AND PEDAL REMOV
AL

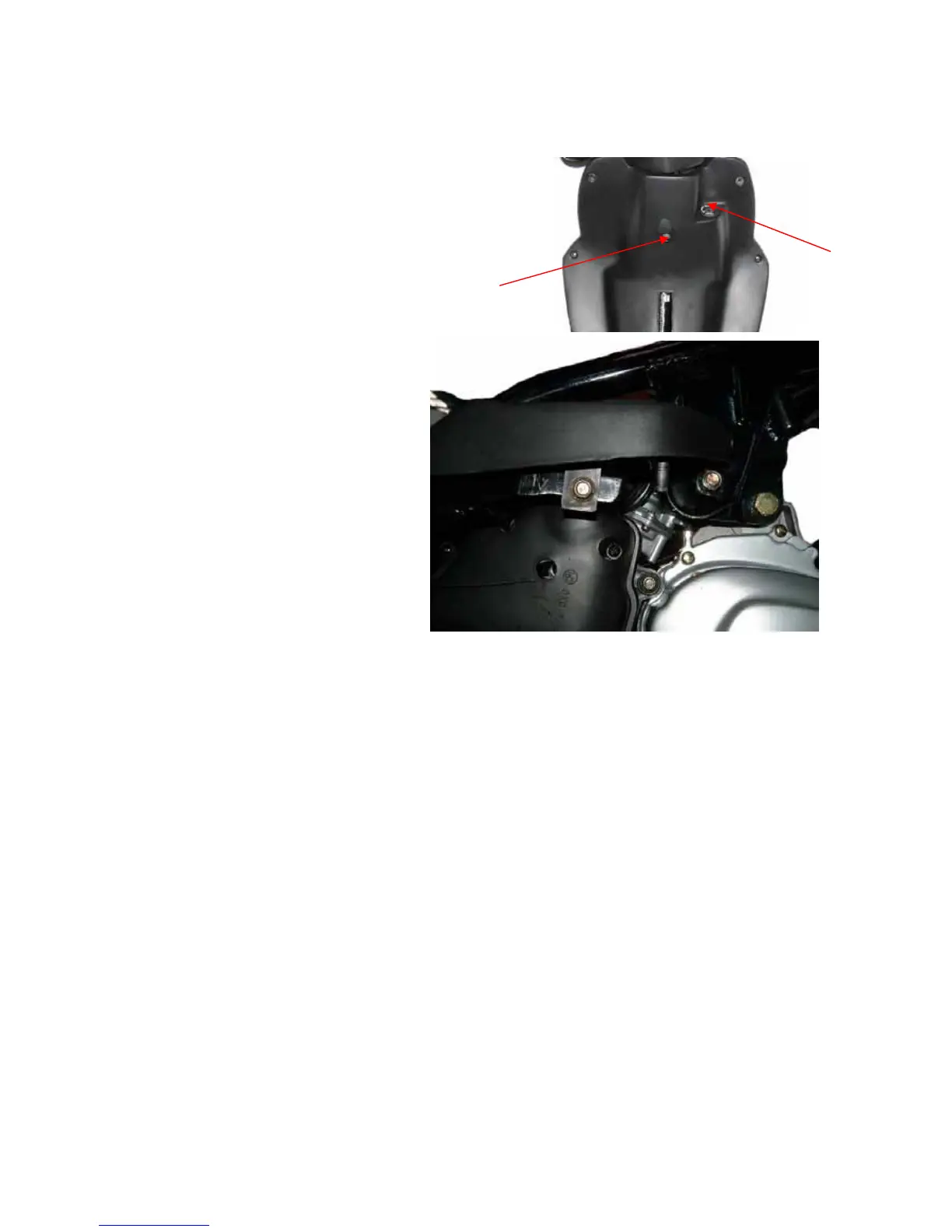

1. Remove power lock housing by unscrewin
g bolt.
3.
remove legshield and
pedal by
unscrewing the four bolt
s
Legshield and pedal inst
allation
4. the sequence of legshield and pedal is the
reverse of reomval
；
②
①
61
63
