STARTER SYSTEM
DESCRIPTION

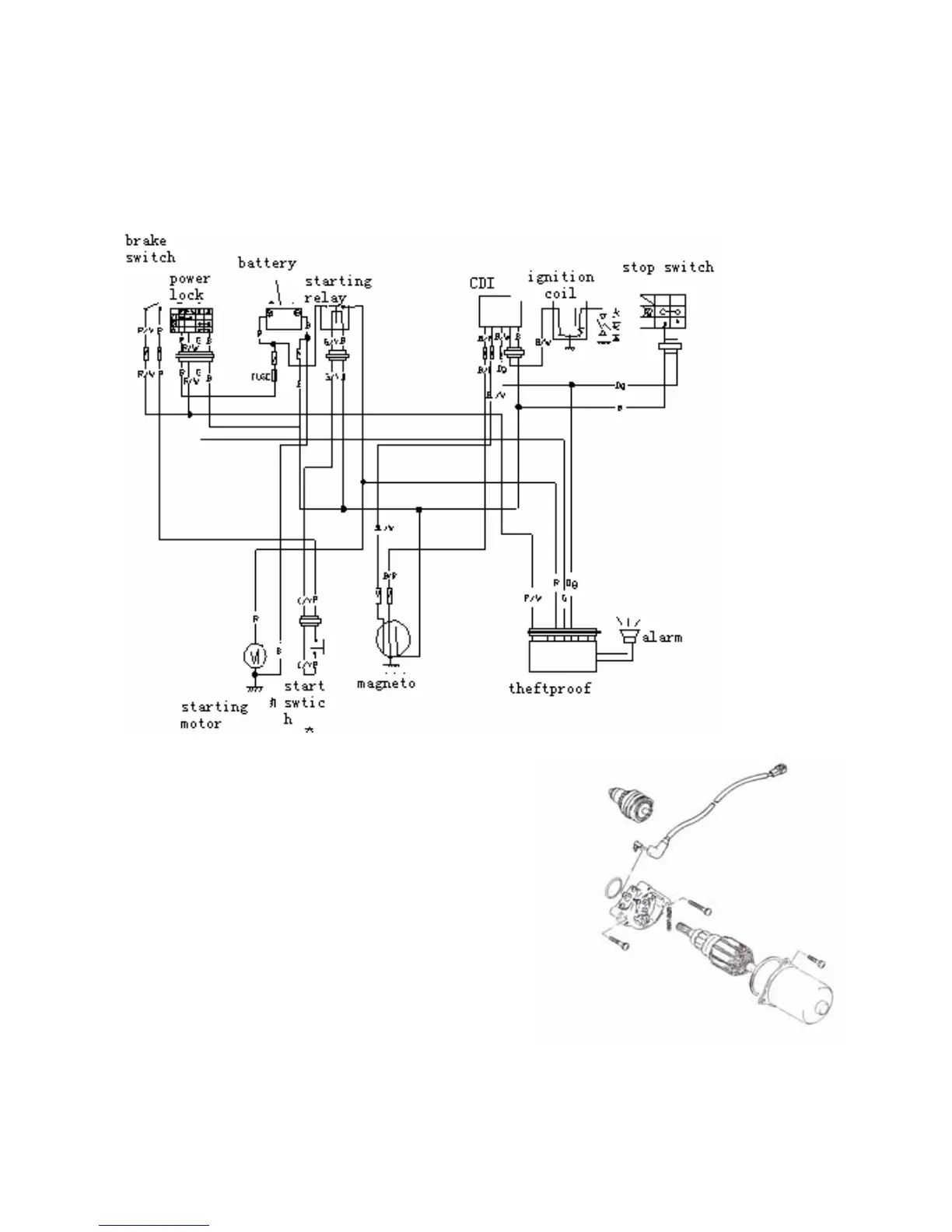

The starter system is shown in the diagram below: namely, the starter motor, relay, starter switch and battery.
depressing the starter button while squeezing the front or rear brake lever energizes the relay, causing the
contact points to close which connects the starter motor to the battery.
Starter motor removal and disassembly
Remove the starter motor
Disassemble the starter motor as shown in the illustration
