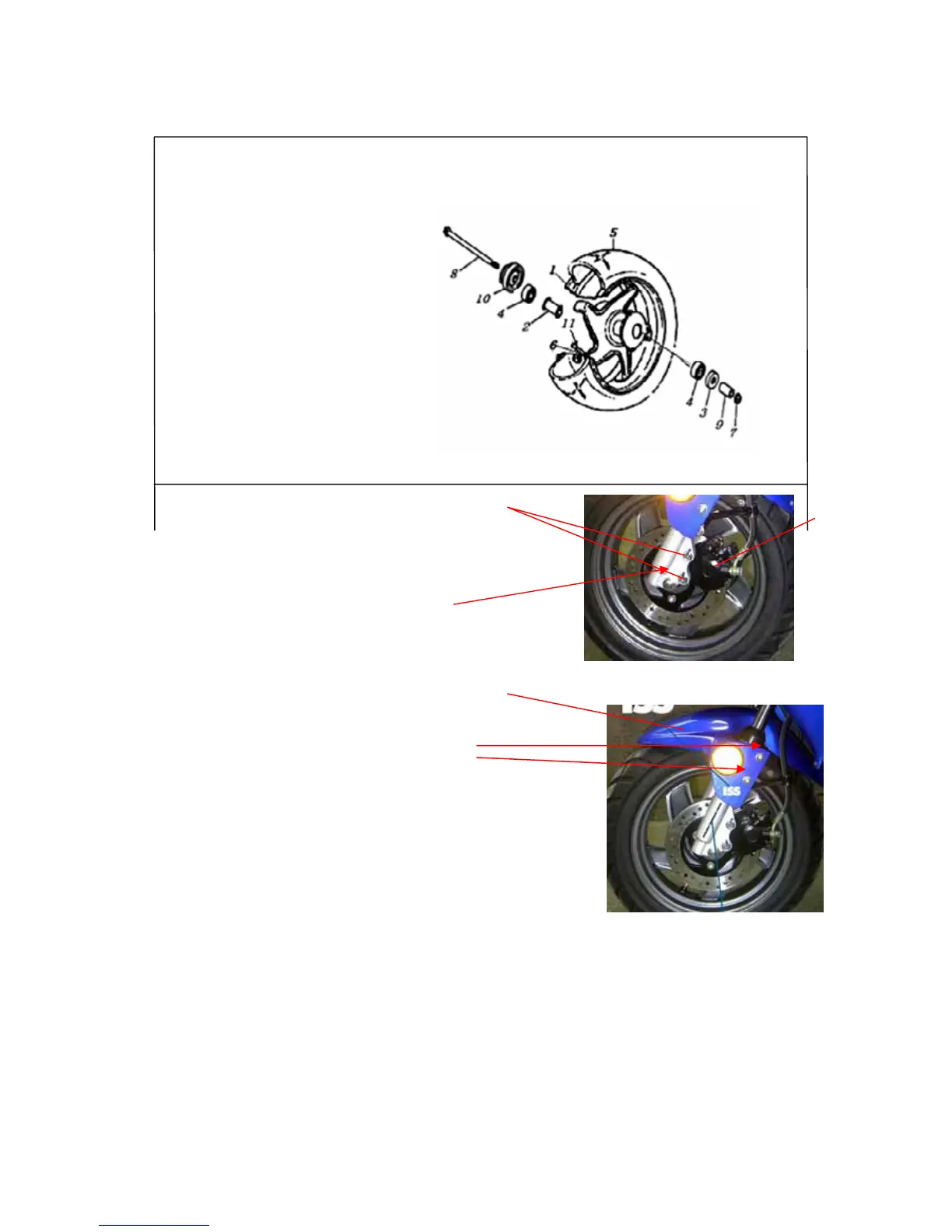

Front wheel
1. front rim
2. middle bushing
3. oil seal
4. roller bearing GB6201-2RS
5. tire
6. valve mouth
7. nut GB6817
8. front shaft
9. front wheel left bushing
10. gearcase
11. valve mouth cap
remove
Remove the front brake caliper by removing the mounting
bolts.
NOTE：Do not operate the front brake lever while dismounting caliper
·remove mounting bolt
·remove the left decorating cover and right one .
·remove under front fender
·support the scooter by jack or wood
shelf.
·Remove front wheel by removing
front axle shaft.
①
②
③
⑤
④
⑥
