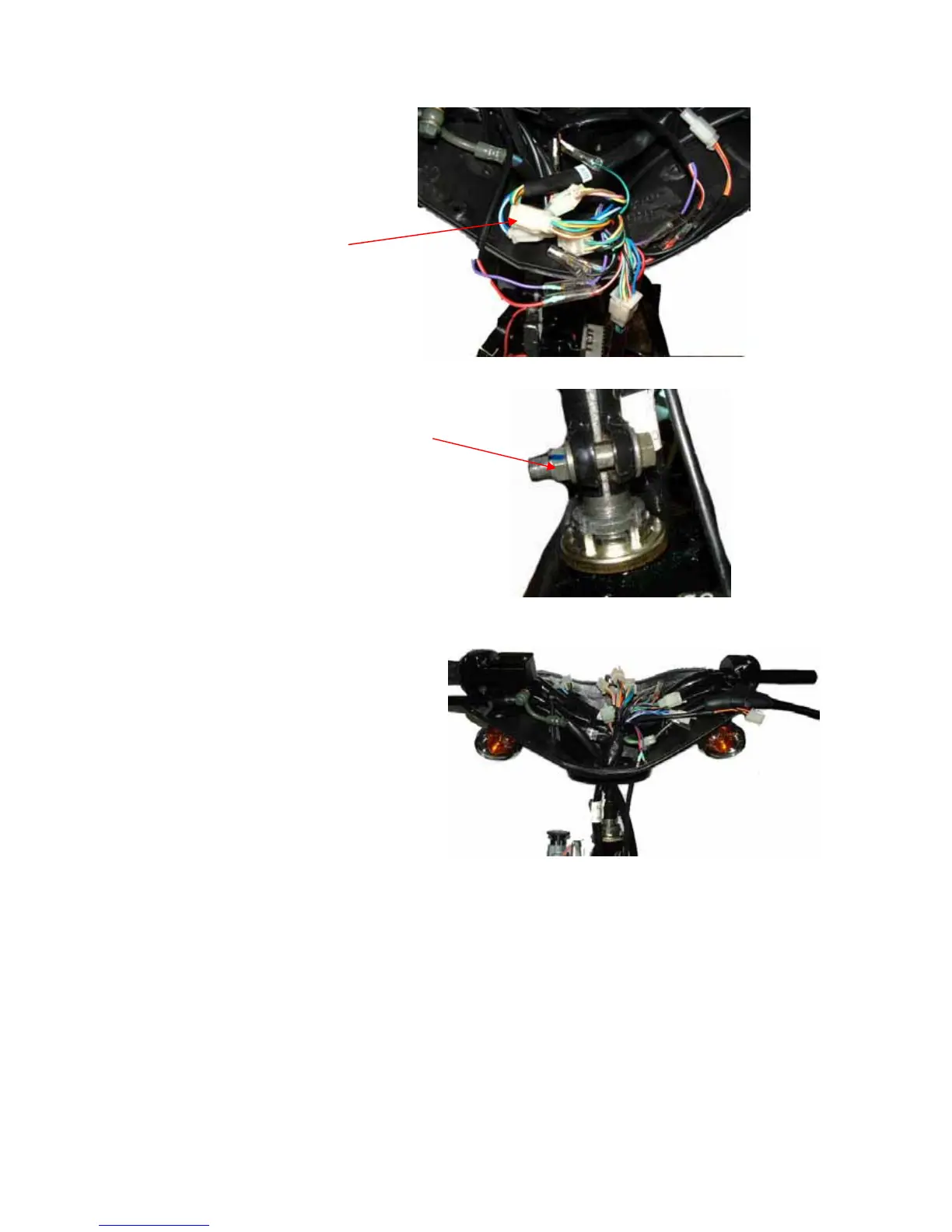

Handle cover removal

5. remove all cables；

6．Remove handle cover by unscrewing bolt 

Handle cover unstallation

7. The sequence of removal is the reverse of reomval

⑥
