59

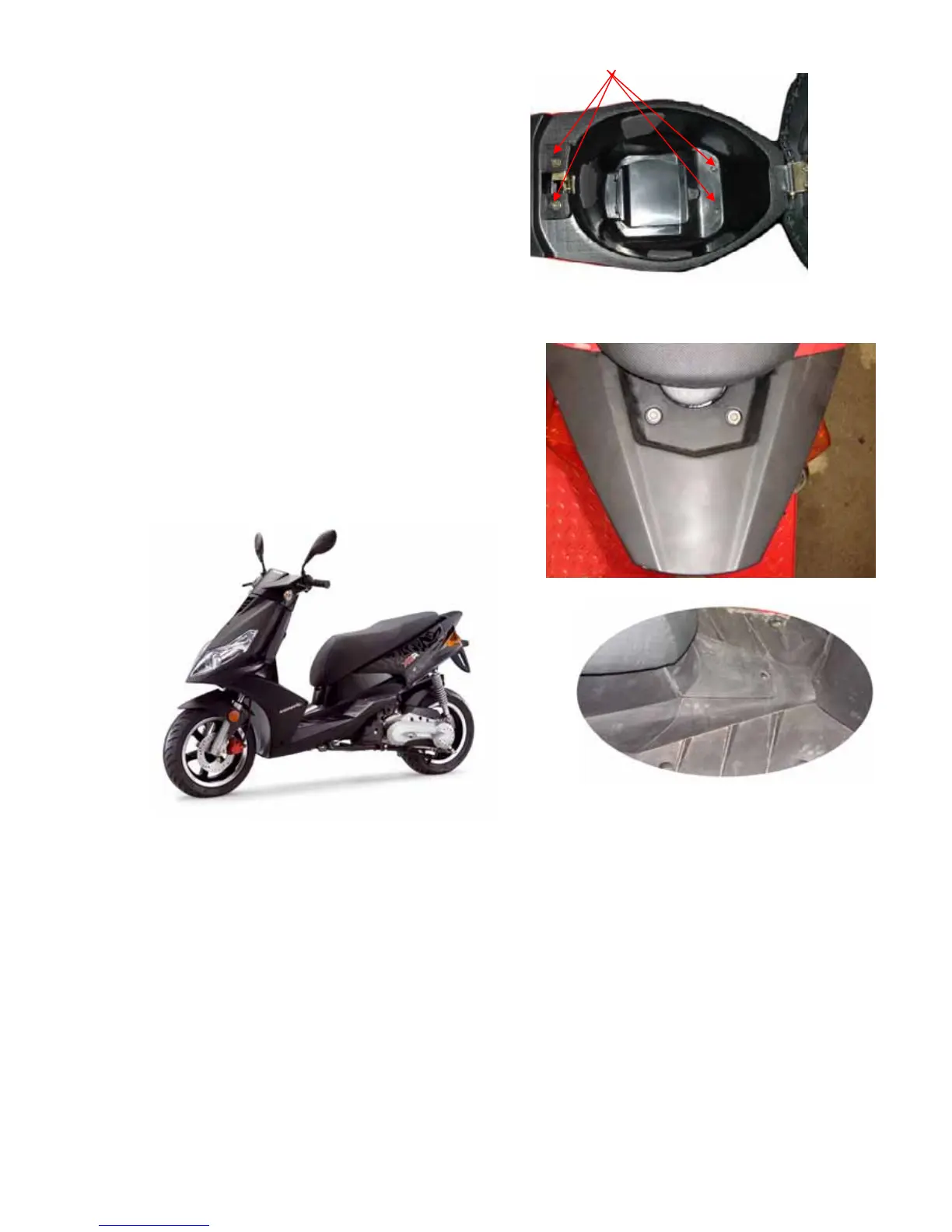

Side cover removal
1. remove seat and helmet barrel by opening seat and
loosing tightening screw .
2. loose hexad screw and remove decorating cap , rear
carrier and oil tank lock ，remove side cover by loosing
side
cover screw ；
3. unlock oil pump cap and remove it, two tapping screw
are exposed, remove them; remove tapping screw；then
remove side cover
side installation
4. the sequence of installation is the reverse of removal.
