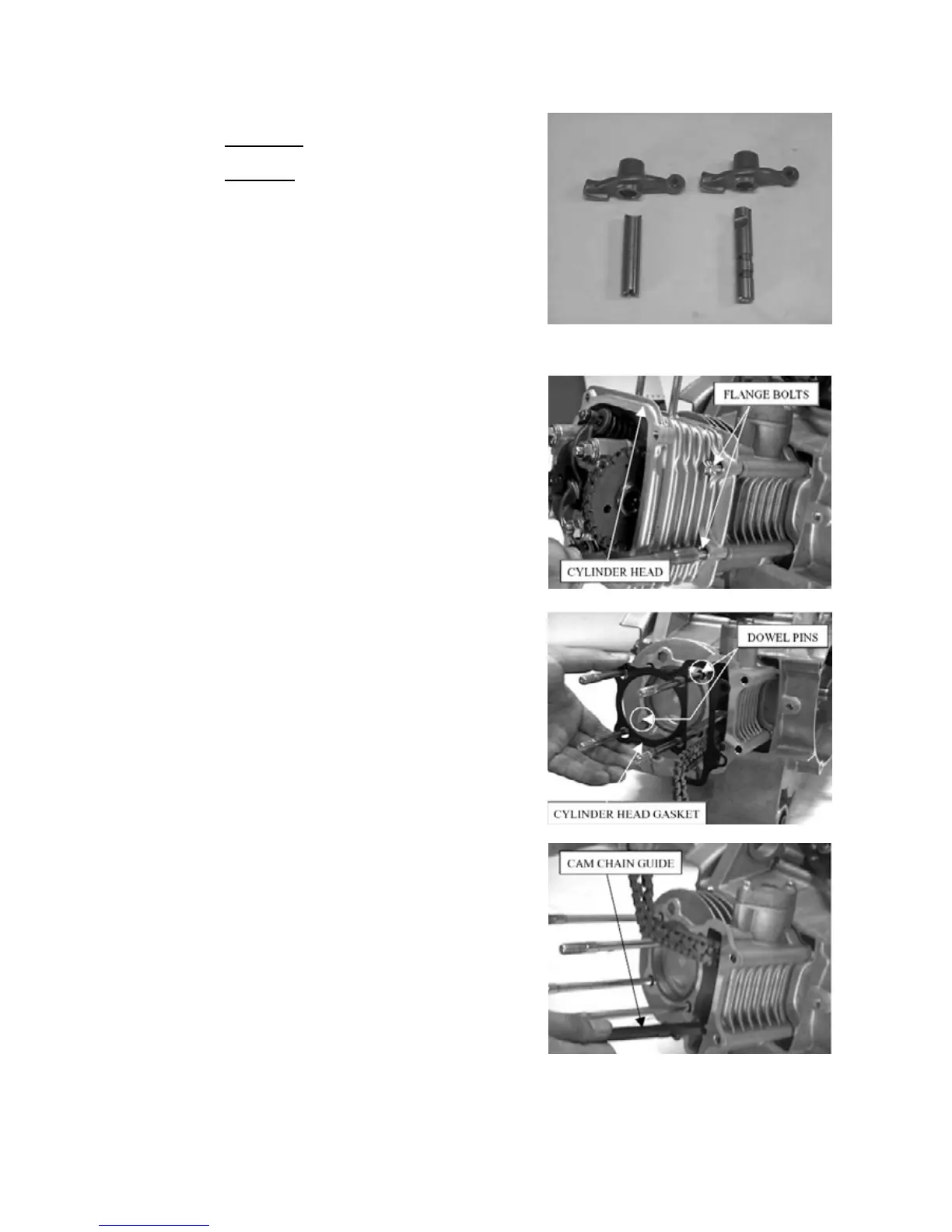

Measure the I.D. of each rocker arm.

SERVICE LIMIT: 10.10 mm

Measure the O.D. of each rocker arm shaft.

SERVICE LIMIT: 9.91 mm

CYLINDER HEAD REMOVAL

Remove the flange bolts and cylinder head.

Remove the cylinder head gasket and dowel pins.

Remove the cam chain guide.
