Mount the TEG to a firm and stable base – or to a stand provided by GPT – using ¼ inch
(6mm) diameter bolts of material suitable for the environment. See Figure 10 for mounting
hole locations and spacing. The base must be level and sturdy enough to support the 100 kg
(221 lb.) mass of the TEG. Various stands are available from the factory. Contact your sales
rep for more information.
CAUTION!
Operation of the TEG in locations where cooling air
flow may be obstructed will cause overheating of the
TEG. Allow a
minimum of 150 mm (6 in.) clearance
under the cooling fins and 900 mm (3 ft.) above the
top of the fin duct. Locate the TEG to avoid flooding
or snow accumulation inter
cooling air.

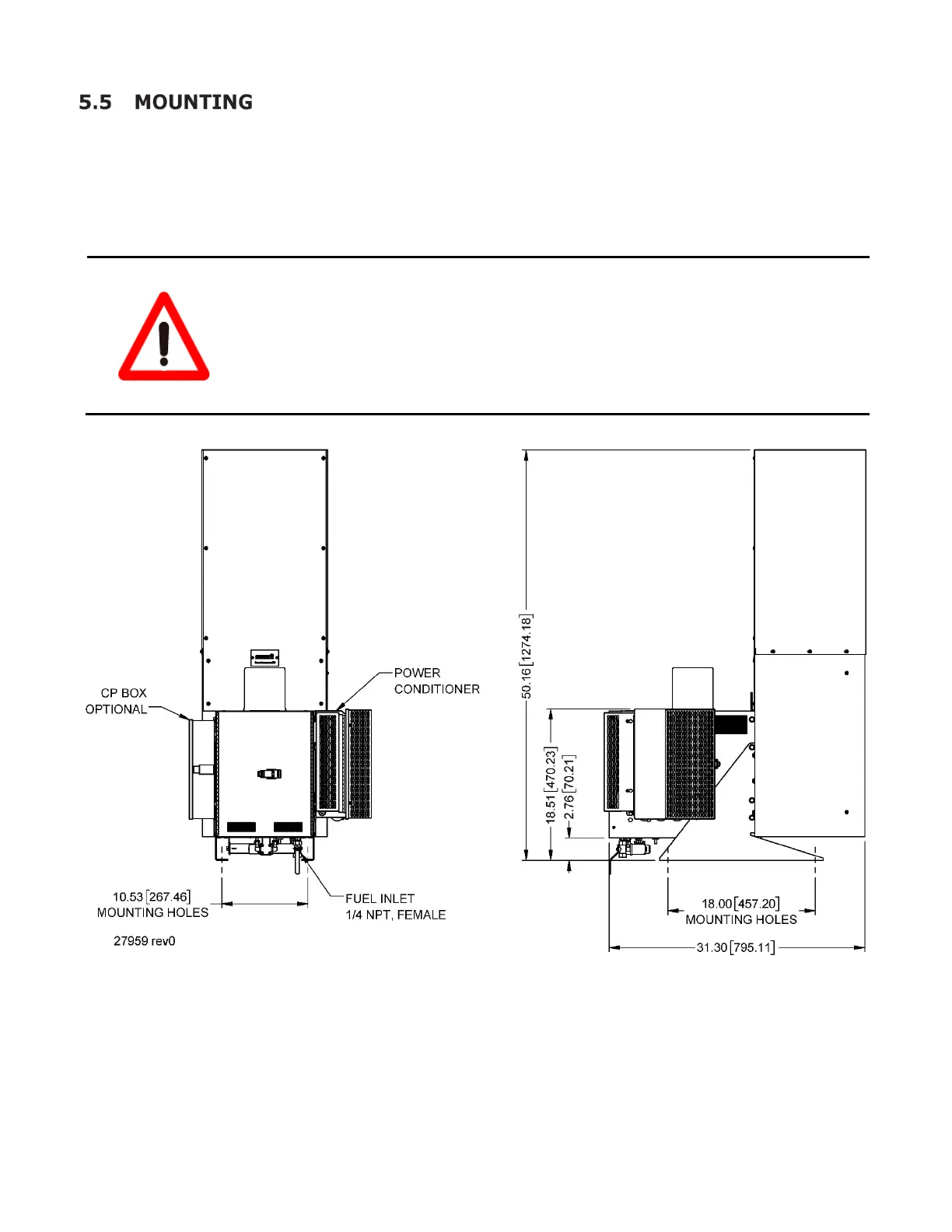

Figure 10 – Model 5220 Mounting Dimensions, shown with CP and L/C
