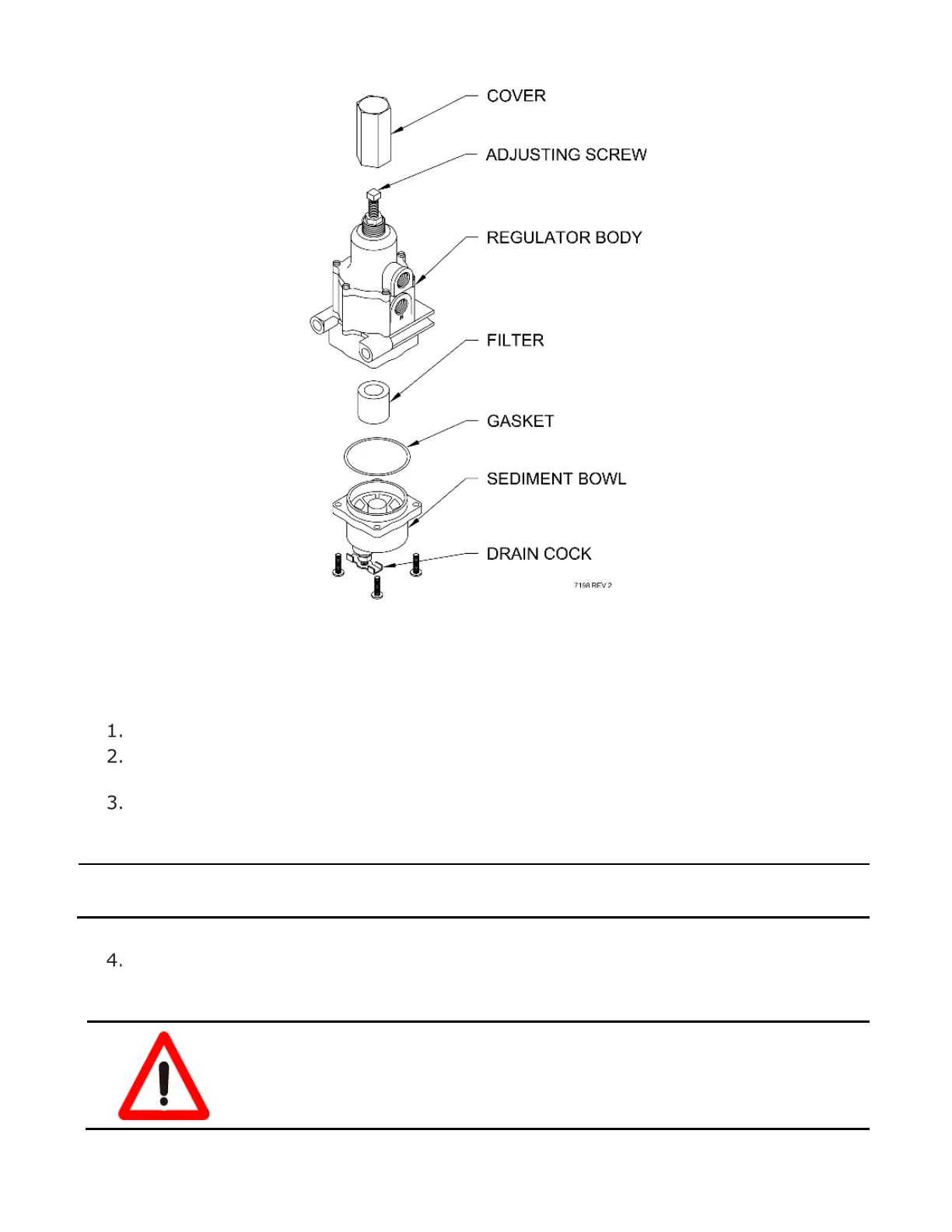

Figure 29 – Pressure Regulator
Follow these steps to install the fuel filter:
Install the filter and gasket onto the sediment bowl. See Figure 29.
Carefully replace the bottom of the regulator, making sure the filter and gasket are
in the proper position.
Align the sediment bowl with the regulator body, replace the four screws, and
tighten.
NOTE:
It may be convenient to check the orifice and clean the air filter while the
regulator is removed.
Installation of the pressure regulator into the TEG is the reverse of removal. With
fuel pressure applied, leak-check all regulator joints and fuel connections.
WARNING!
Check for fuel leaks after any fuel system service
using a commercial leak detector fluid such as
Snoop
®
.
