28142 Rev 15 TROUBLESHOOTING
Gentherm Global Power Technologies Page 64
Follow these steps to inspect the burner:
1. Check the air filter screen for any tears or holes. If any are found it should be replaced.
2. Check the burner screen.
3. Check the ceramic spacer.
Follow these steps to install the burner:
1. Reassembly is the reverse of disassembly.
2. Before re-starting the TEG, leak-check all fuel connections.
NOTE:
The orifice fitting only needs to be finger tight when threaded back through
the front of the air screen.
WARNING!
Check for fuel leaks after any fuel system service
using a commercial leak detector fluid such as
Snoop
®
.

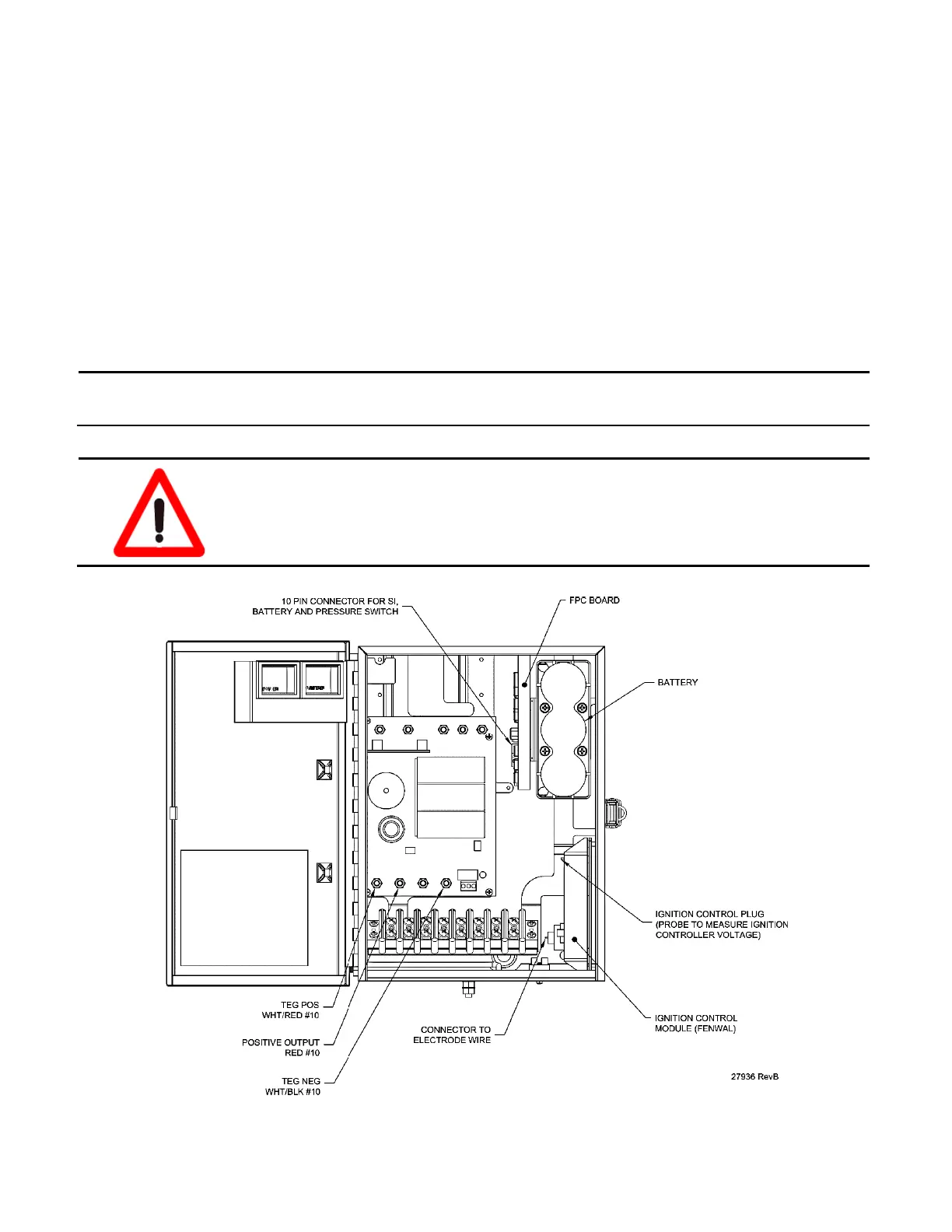

Figure 32 – SI Module Wiring
