28142 Rev 15 INSTALLATION
Gentherm Global Power Technologies Page 31

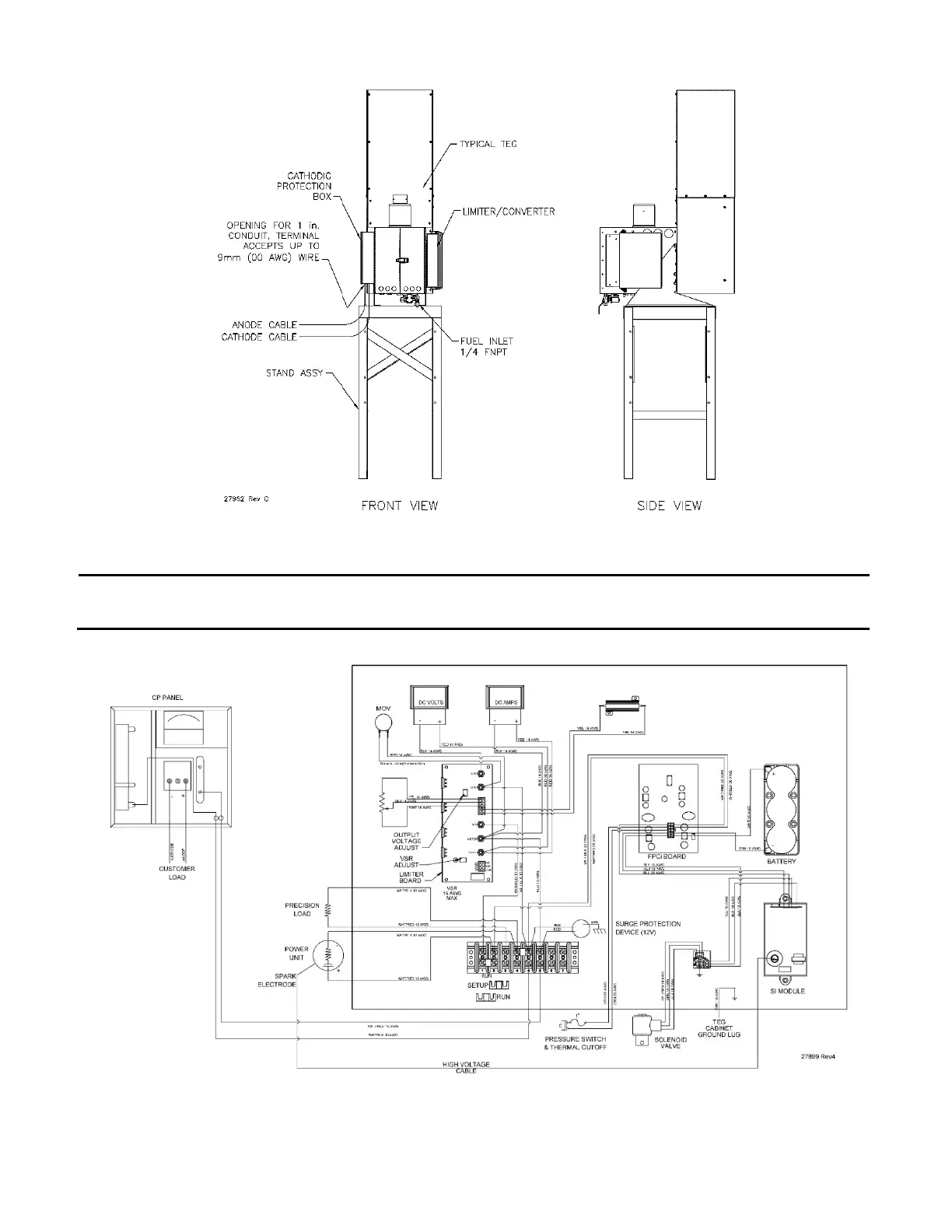

Figure 15 – CP Installation
NOTE:
Always mount the CP interface system in an upright position and
allow the
free flow of air through the unit.
Figure 16 – CP Wiring for Model 5220-12 V, with Limiter Assembly
