Your replacement valve should come with a new wire harness. Plug the end
with the white plastic connector into the connector on the board. Then, feed the
other end through the cord grip.
The ends of the new harness are already stripped and tinned. Remove the
contact insert from the new valve connector and feed the harness cable through
the connector cover. Terminate the leads in the contact insert according to the
table in
Figure 30 below:

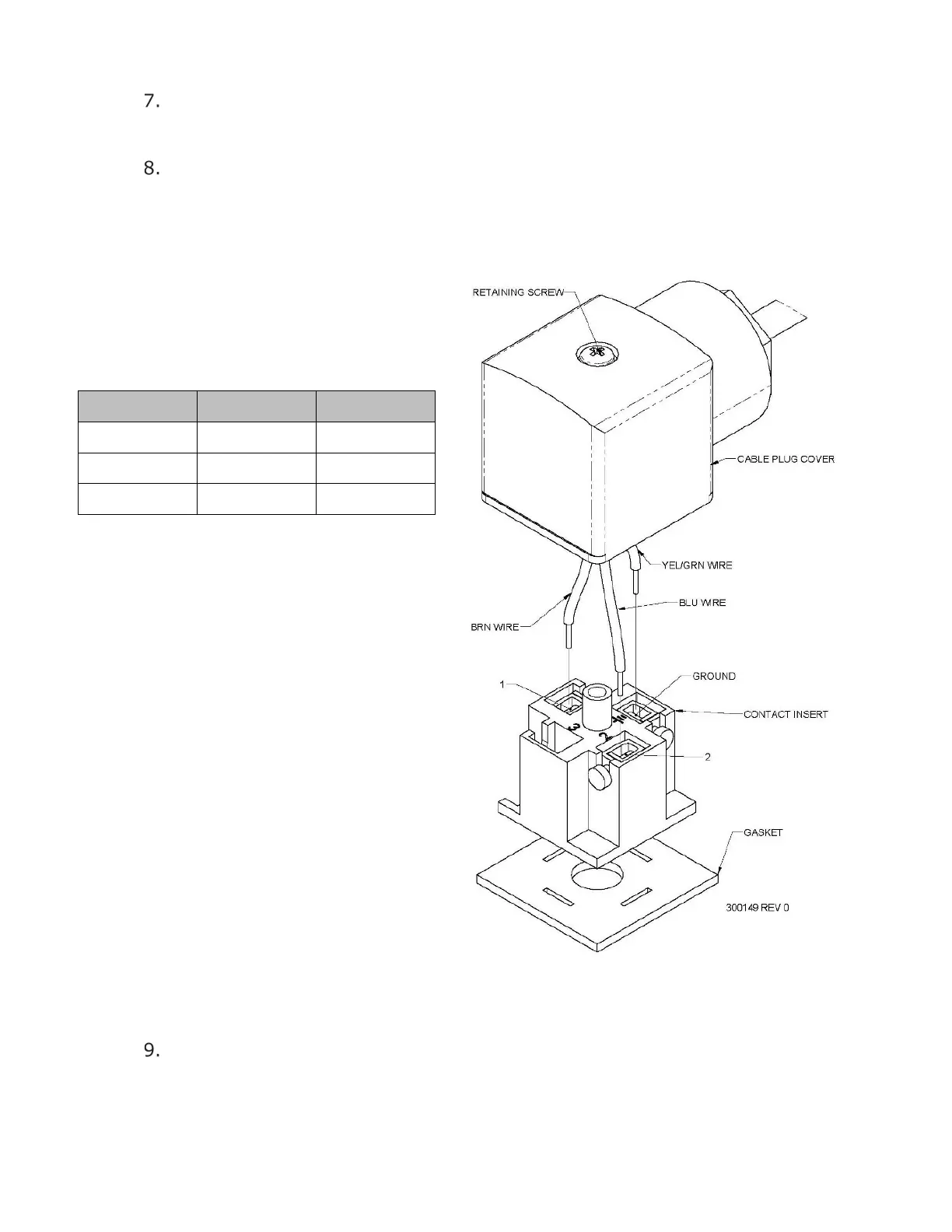

Figure 30 – Solenoid Valve Cable Plug Connections
Orient the contact insert as shown in Figure 30 above and re-insert it into the
cover.
Wire Colour Terminal
SOV (+) BLU 1
SOV (–) BRN 2
GND YEL/GRN GND
