4.4 Connecting the Camera
Connect your Bullet Camera to power, network and the cables needed.
4.4.1 Wire Definition

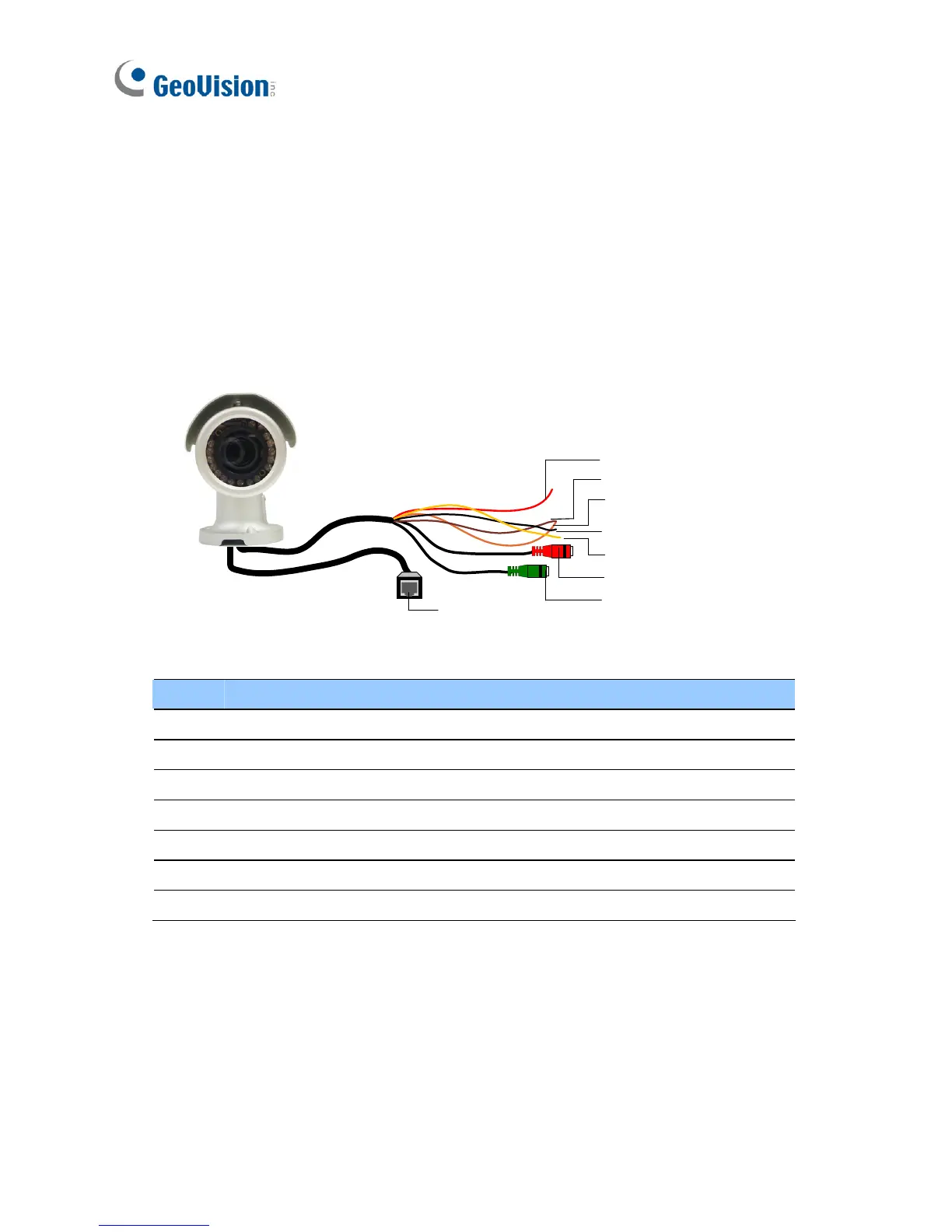

The cable of the Bullet Camera is illustrated and defined below:
Ethernet (PoE)
Digital In (Red)
DC 12V+ / AC 24V + (Brown)
Digital Out (Orange)
DC 12V- / AC 24V - (Black)
GND (Yellow)
Audio In (Red)
Audio Out (Green)
No. Wire Color Definition
1 Red Digital In
2 Brown DC 12V+ / AC 24V+
3 Orange Digital Out
4 Black DC 12V- / AC 24V-
5 Yellow Ground
6 Red RCA Audio in
7 Green RCA Audio out
