IR Arctic Box Camera
21
2

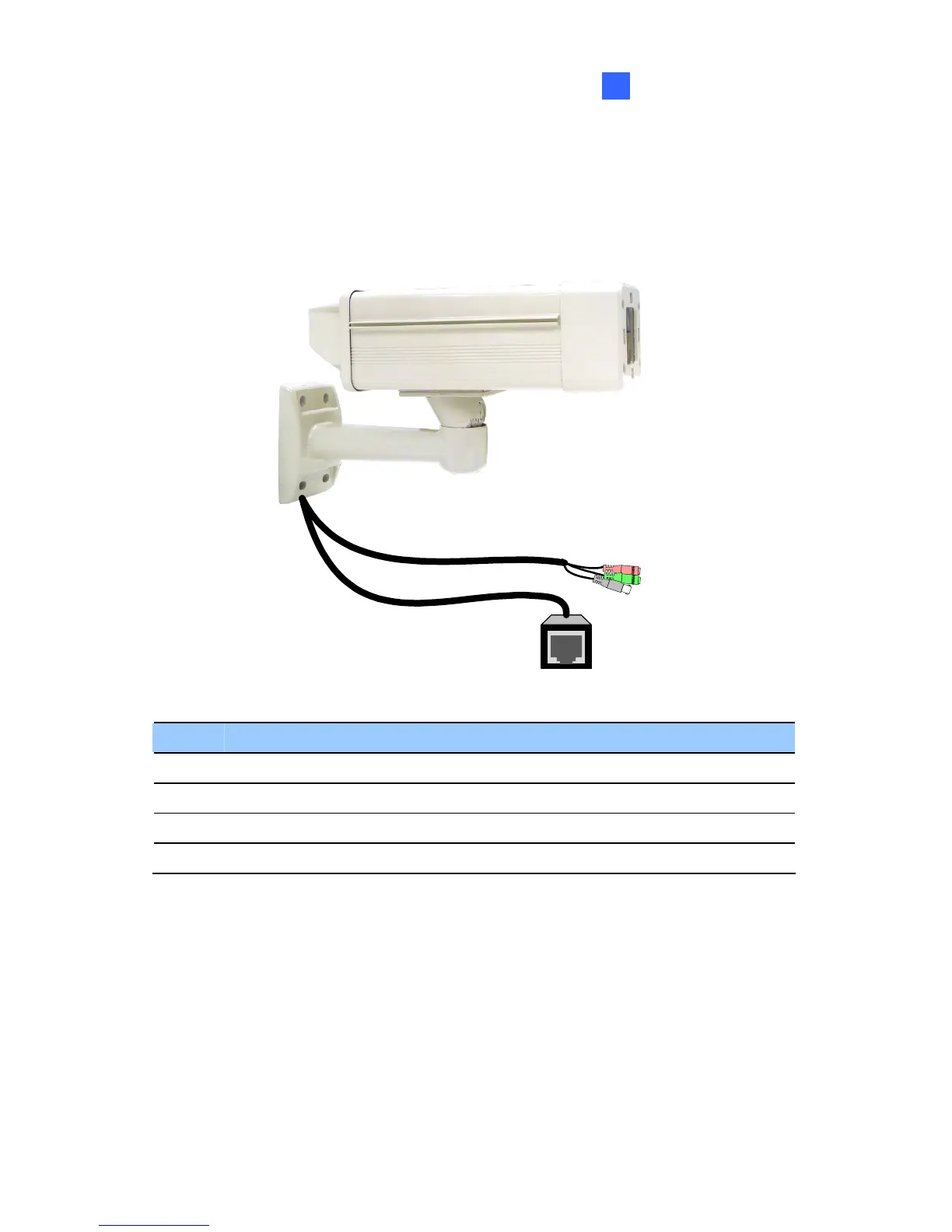

2.4 Connecting the Camera
2.4.1 Wire Definition
No. Wire Color Definition
1 Black (thick) PoE
2 Black BNC TV out
3 Green RCA Audio Out
4 Pink RCA Audio In
Follow the steps below to connect the camera:
1. Optionally connect a speaker (green) and an external microphone
(pink).
2. Optionally connect a monitor using a Video Out wire. Enable this
function by selecting your signal format at the TV Out field on the Web
interface. See Video Settings section, Administrator Mode Chapter,
GV-IPCam H.264 User’s Manual on the software CD.
To Next Page
