GeoVision GV-MFD320 Quick Start Guide

Mini Fixed & Rugged Dome
5
5.4 Connecting the Camera

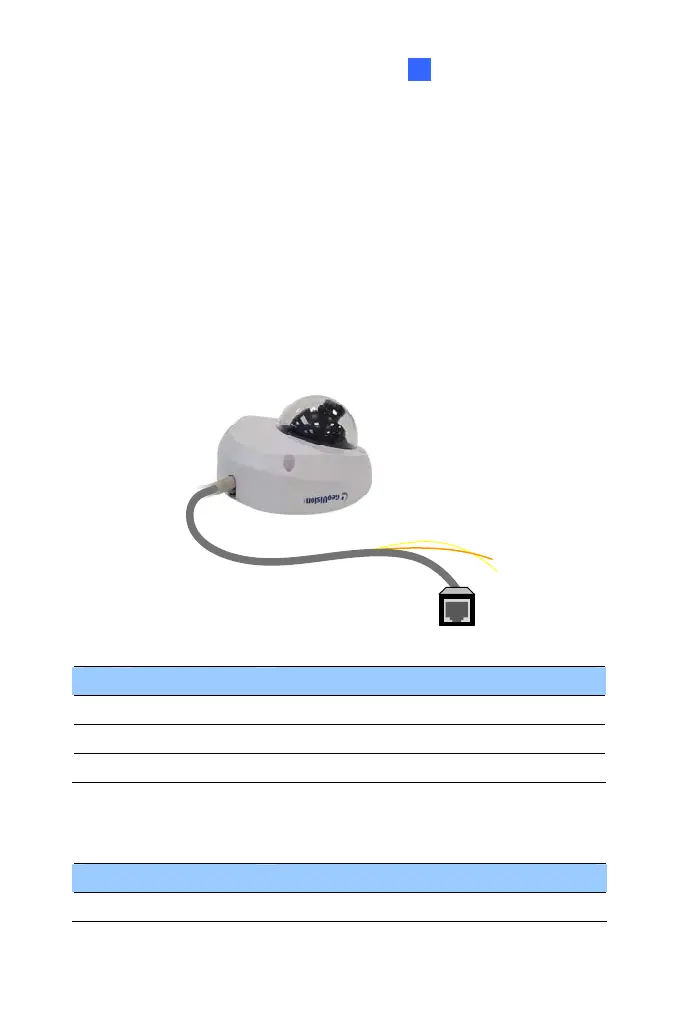

Refer to the wire definition and illustrations below to connect the power and
network.
5.4.1 Wire Definition
GV-MFD120 / 130 / 320
The data cable provides connections for power and network access. The
wires are illustrated and defined below:
No. Wire Color Definition
1 Yellow DC 12V+
2 Orange GND
3 Gray PoE, Ethernet
GV-MDR Series
Power and network connectivity is provided through a PoE cable.
Wire Color Definition
Gray PoE, Ethernet
51

GeoVision GV-MFD320 Specifications

General

Brand	GeoVision
Model	GV-MFD320
Category	Security Camera
Language	English
