CHAPTER 3
Material Handling

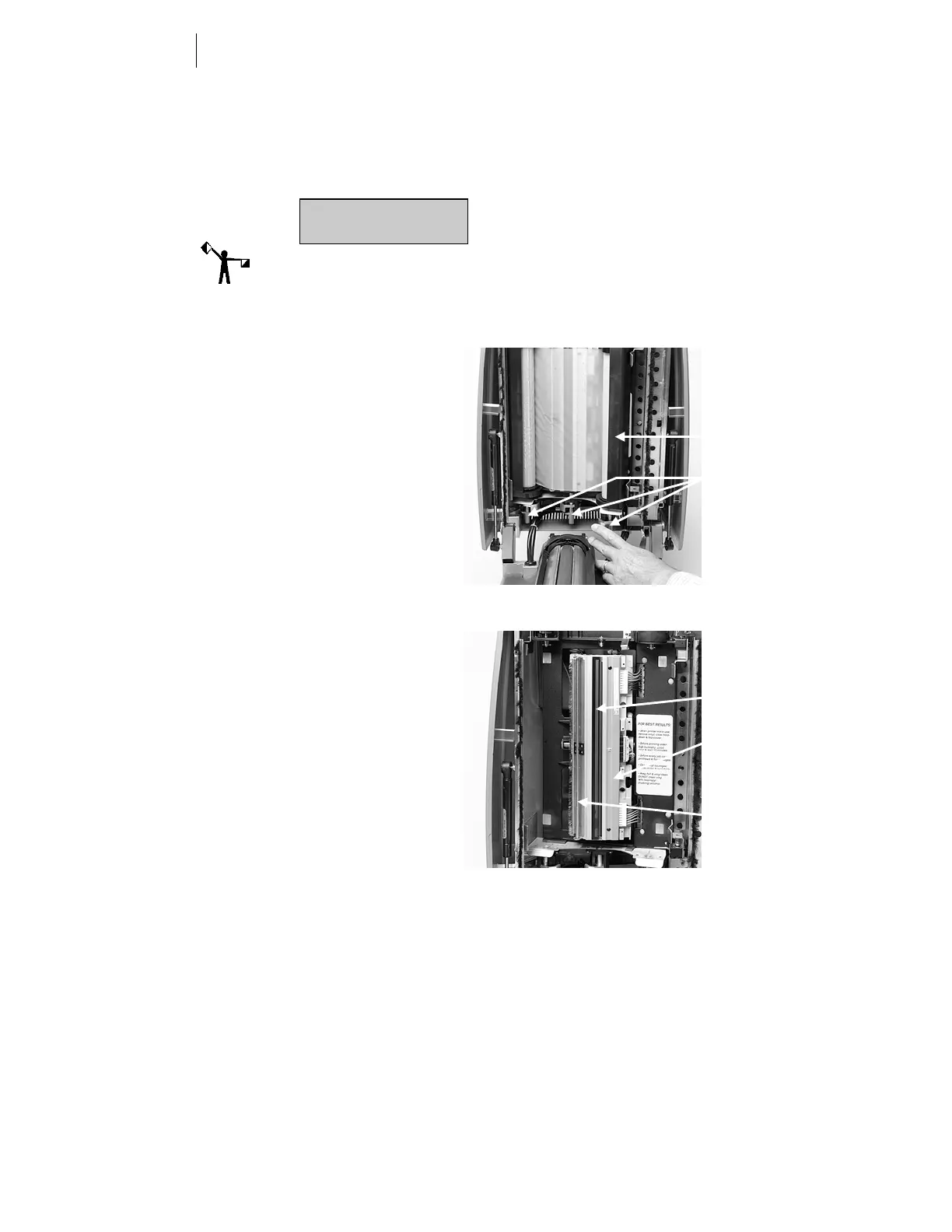

Loading a foil cartridge
1
The display shows what color foil to load as in the example below.
Note: Using a material type or foil color other than the one called for by the
job may produce unpredictable results. Each material type and foil color has a
unique print setting associated with it to produce the best results.
Substituting a material type or a foil color will result in an incorrect print
setting being applied to it.
2
If there is a cartridge
already mounted in
the EDGE 2,
dismount it by
pushing the three
cartridge pins down
and rotating them
slightly so they lock
in the open position.
The foil cartridge can
now be rotated out of
its mounting
position.
3
Clean the printhead
and the dancer bar.
(See “Maintenance”
on page 27.)
Foil: Orange
GCS-014
Printhead
element
Dancer
bar
Mounted foil
cartridge
Cartridge
pins
