12 GERBER EDGE Owner's Guide

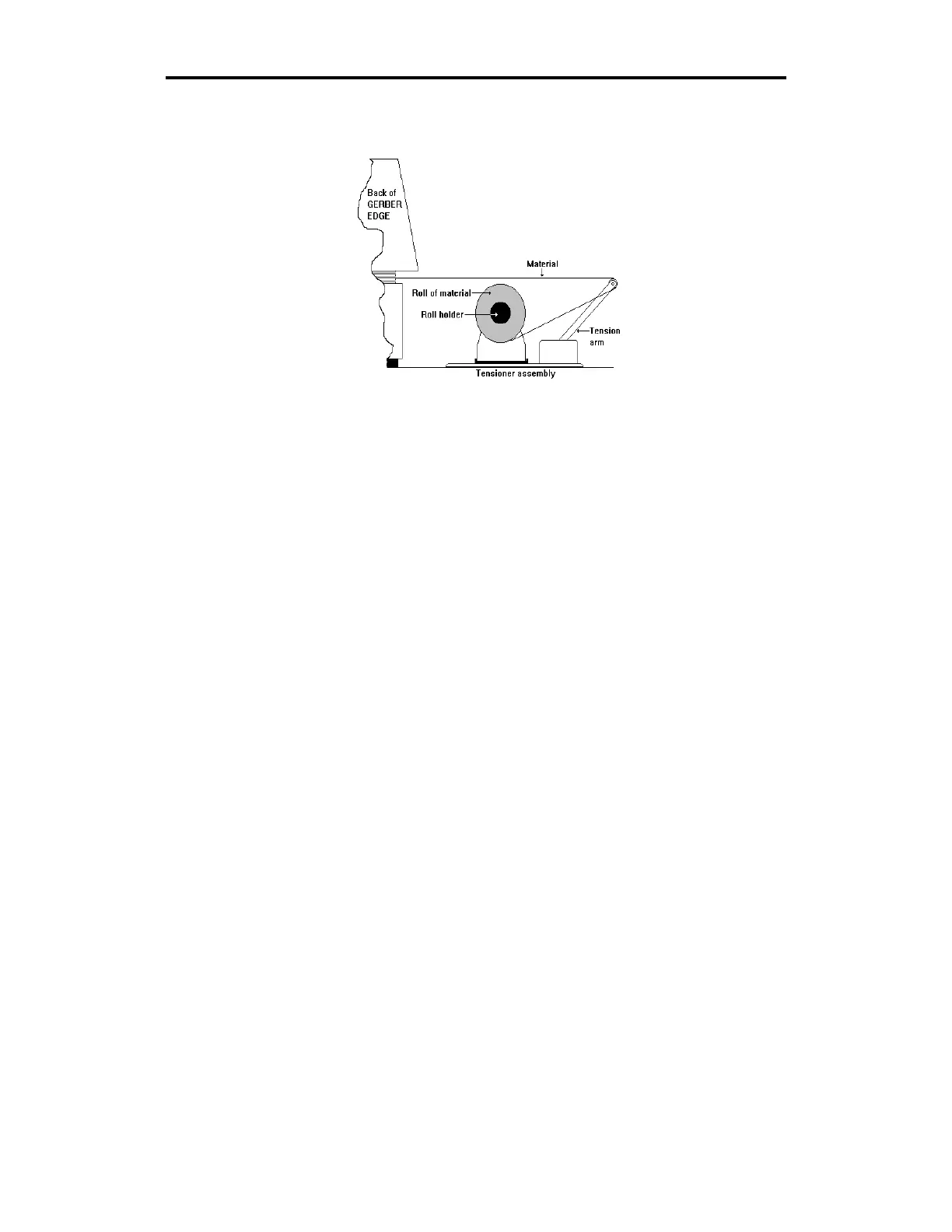

3. Position the tensioner assembly behind the GERBER EDGE as
shown in the illustration.
Positioning the tensioner assembly.
4. Slide the roll of white vinyl material onto the roll holder. Pull the
end of the material away from the GERBER EDGE, then under
and over the tension arm roller toward the back of the GERBER
EDGE.
5. Raise the GERBER EDGE cover.
6. Open the bail arms by lifting them up from the platen.
7. Clean the bail arm squeegees and platen using a clean, lint-free pad
moistened with isopropyl alcohol. Allow to air dry before loading
material.
8. Use the keypad slew keys to slew the GERBER EDGE drive
sprockets so that the three closely-spaced teeth are facing up.
